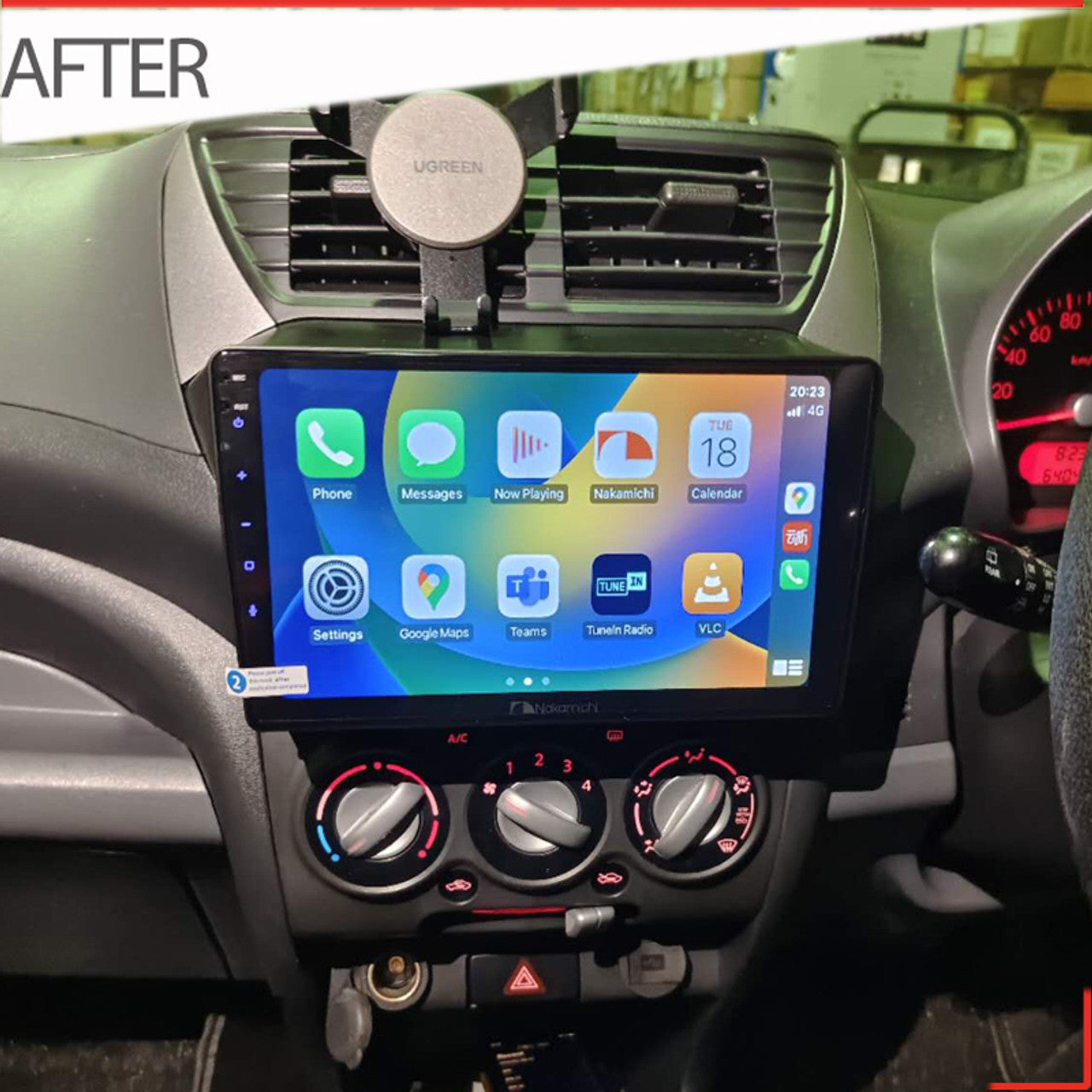

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Alto 2009-2014

Compatibility:

• for Suzuki Alto 2009-2014 models.

Important Notes:

• Supports steering wheel controls.

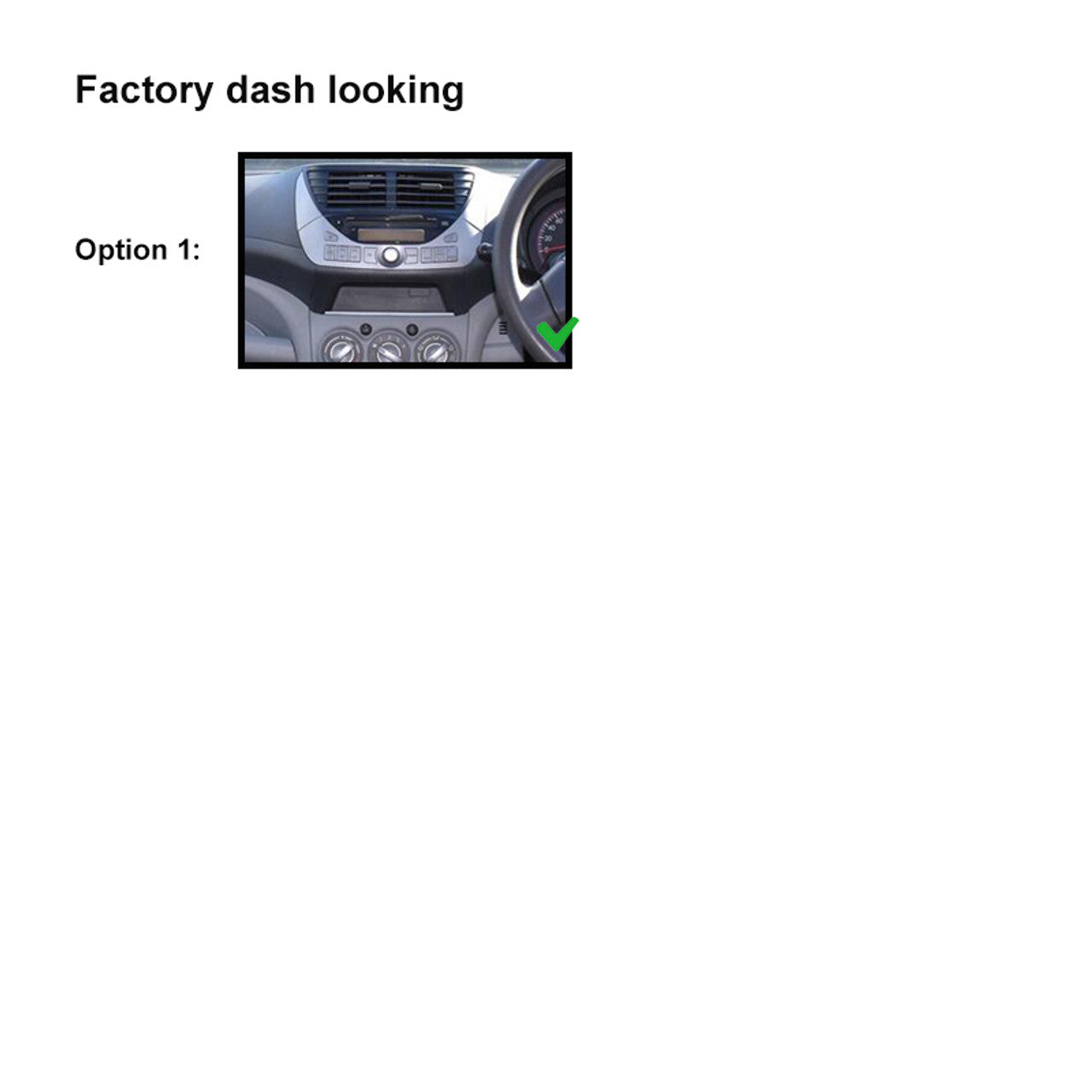

• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure we send you the correct harness.

Key Features:

Wireless Apple CarPlay
CarPlay is the ultimate co-pilot for your iPhone. With wireless Apple CarPlay, you can enjoy hands-free access to maps, music, calls, messages, and more—all on your car’s display. CarPlay is designed to help you focus on the road while staying connected with your iPhone.

Wireless Android Auto (Wired for specific phone brands)
Enjoy Android Auto wirelessly, allowing you to connect your Android device seamlessly to the car's display. Easily access driving directions, send hands-free messages, and control your music—all while keeping your focus on the road.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Accessory packages may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

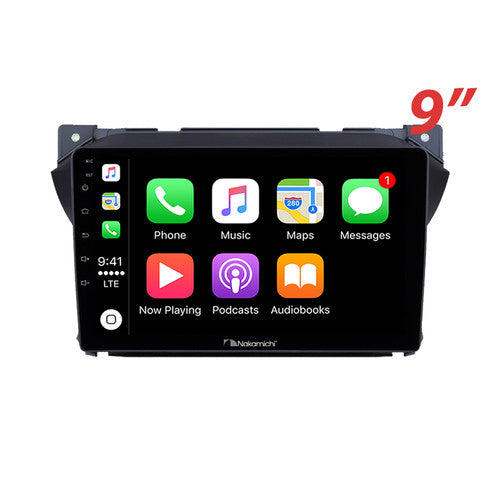

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
