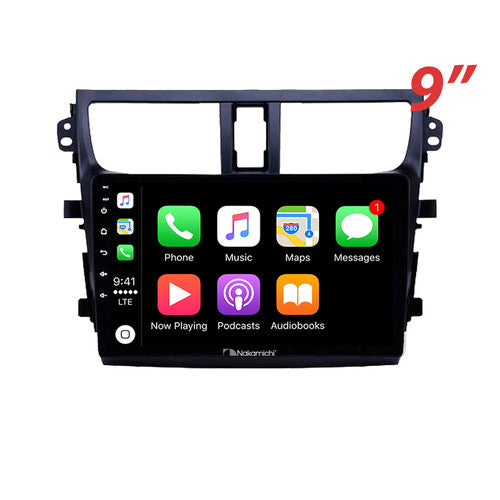

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Celerio 2014+

Compatibility:

• for Suzuki Celerio 2014+ models.

Important Notes:

• Supports steering wheel controls.
• Works with factory reverse camera.

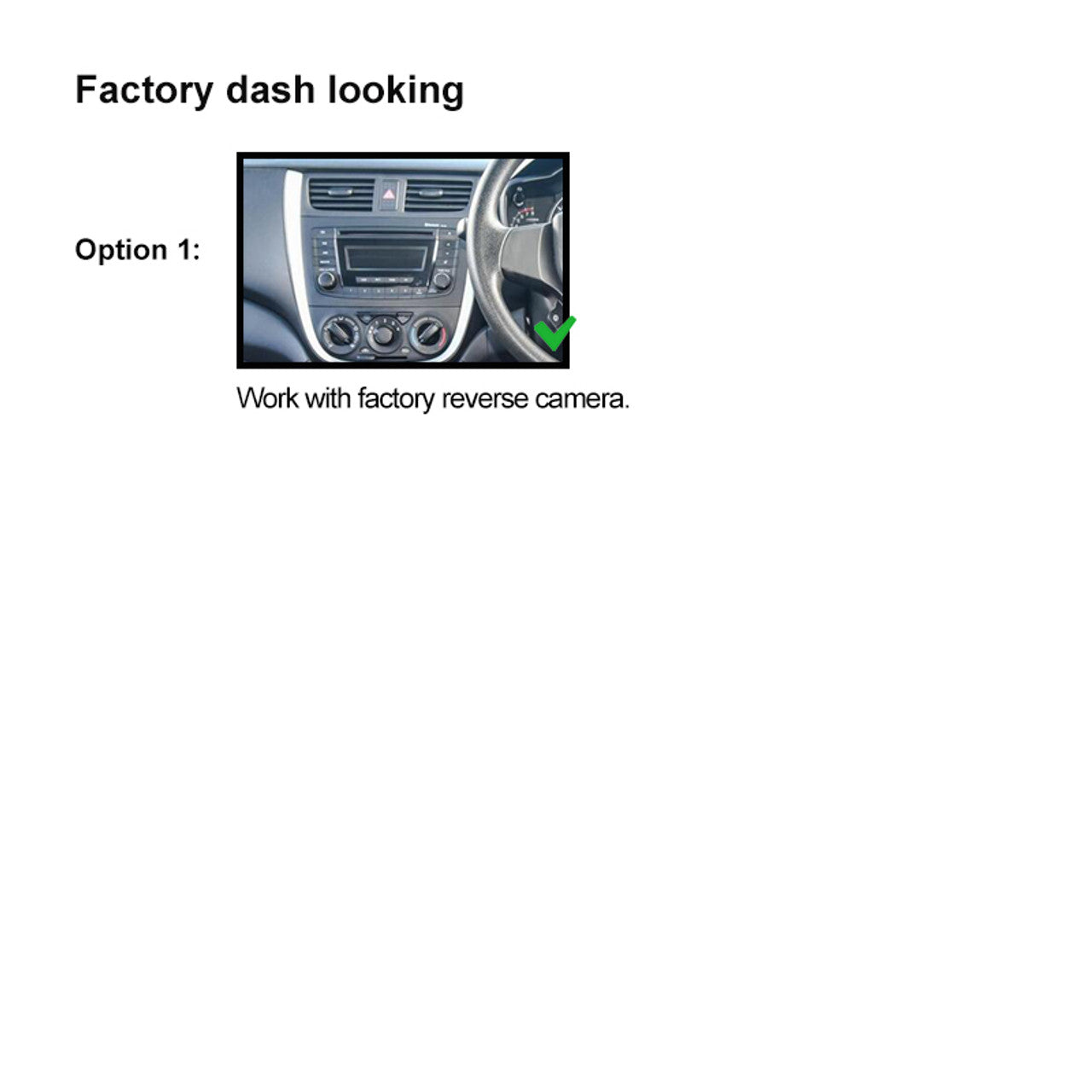

• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure we send you the correct harness.

Key Features:

Wireless Apple CarPlay
CarPlay is your smarter, safer co-pilot. Enjoy wireless CarPlay to get directions, make calls, send and receive messages, and enjoy your favorite music, all while driving safely. Plus, with iOS, you’ll get access to new app categories and custom wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for specific phone brands)
Pair your Android phone wirelessly with your car's display. Instantly view your Android apps on the screen, easily navigate, text, or make calls hands-free. Android Auto is designed to help you stay focused while enhancing the fun of your drive.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Accessory packages may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
