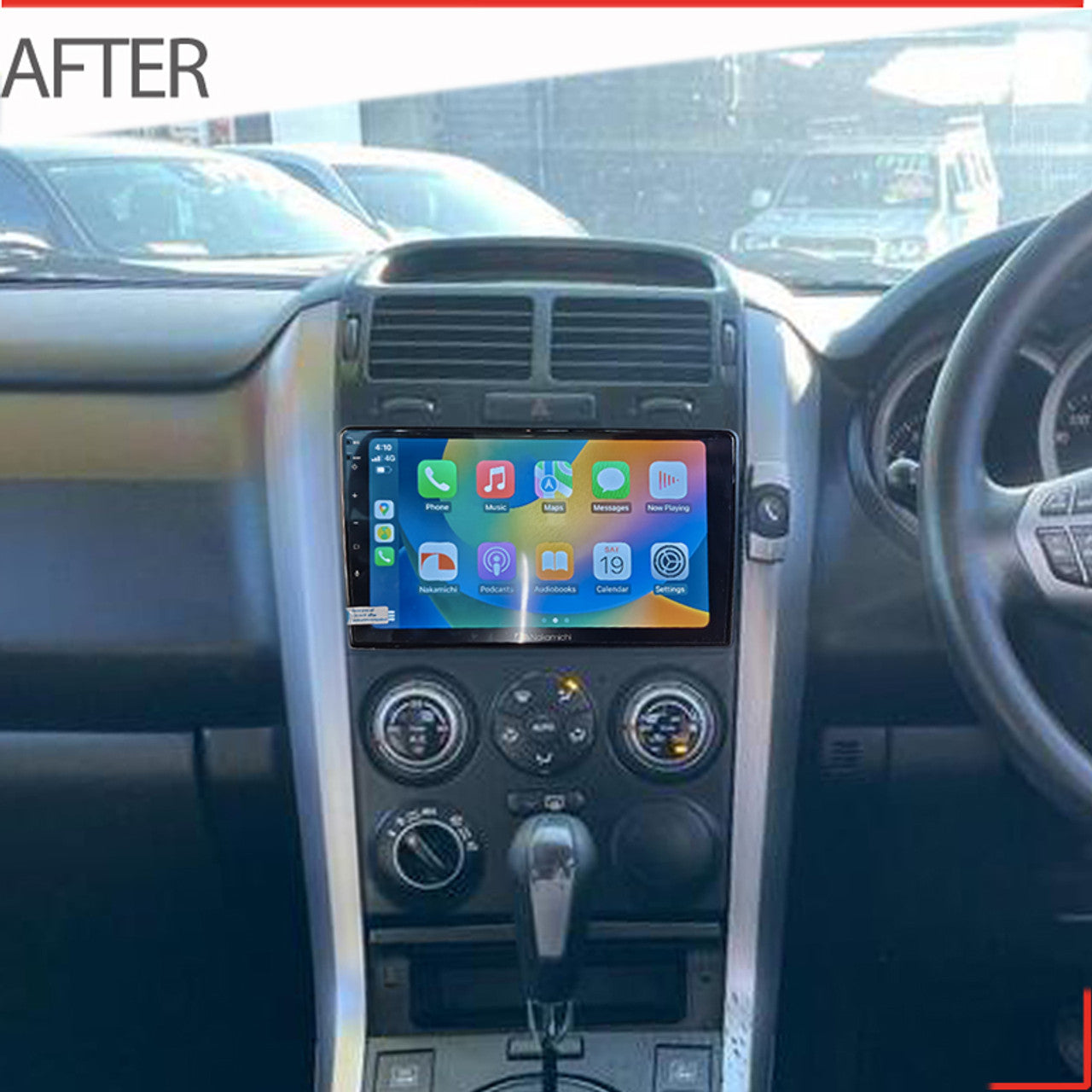

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Grand Vitara 2005-2013

Compatibility:

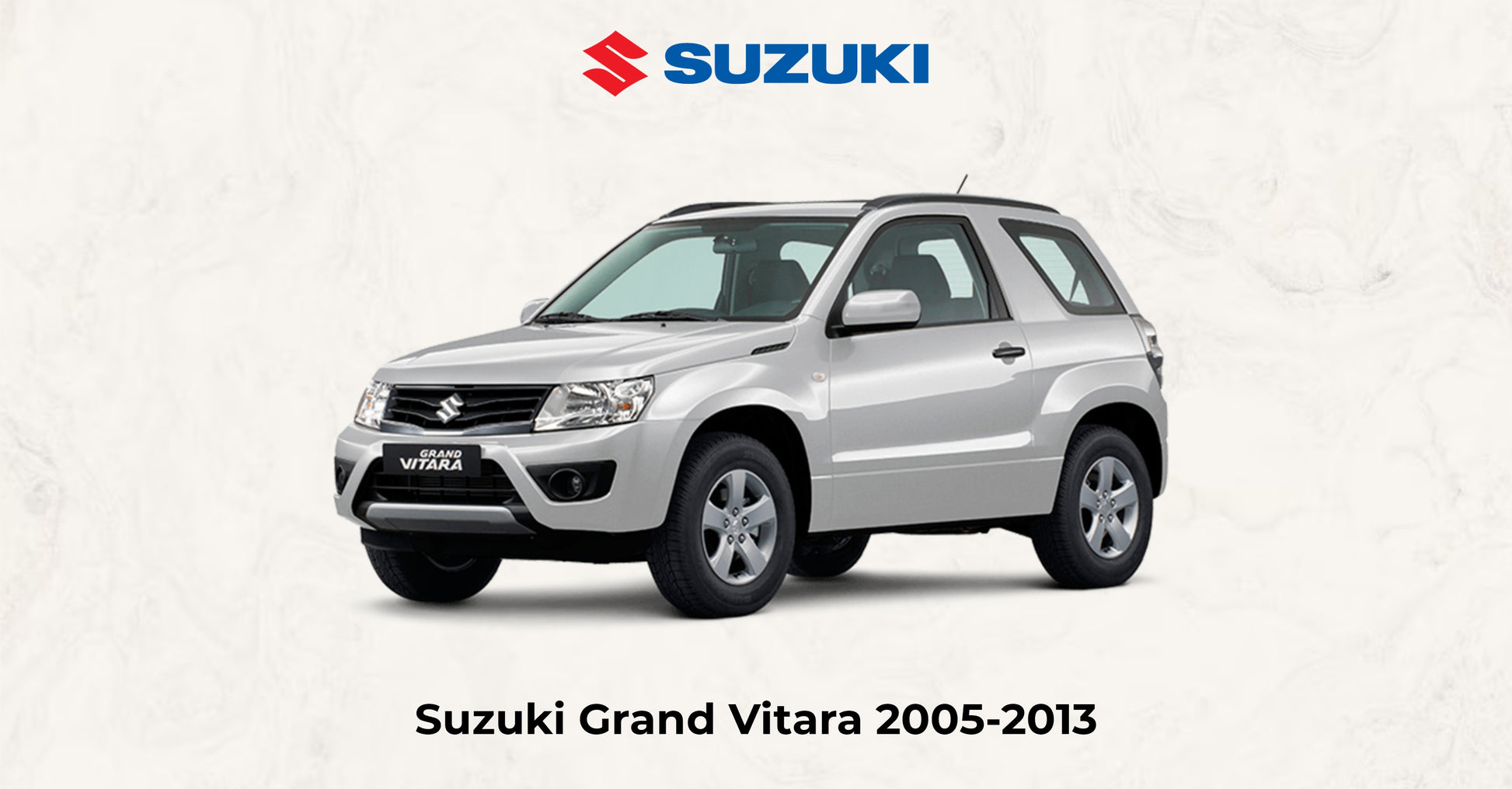

• for Suzuki Grand Vitara 2005-2013 models.

Important Notes:

• Supports steering wheel controls.
• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure we send you the correct harness.

Key Features:

Wireless Apple CarPlay
CarPlay is your ultimate co-pilot, now without the hassle of cables. CarPlay allows you to get directions, make calls, send and receive messages, and listen to your favorite music, all while keeping your eyes on the road. With iOS, you can also enjoy new app categories and customized wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for specific phone brands)
Pair your Android phone wirelessly with your car’s display. Your Android apps are instantly shown on the screen, and you can easily get directions, send texts, or make hands-free calls. Android Auto is designed to keep you safe and focused while making the drive more fun.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Accessory packages may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

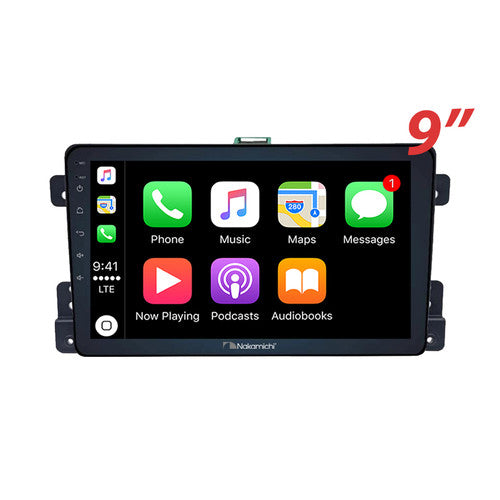

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
