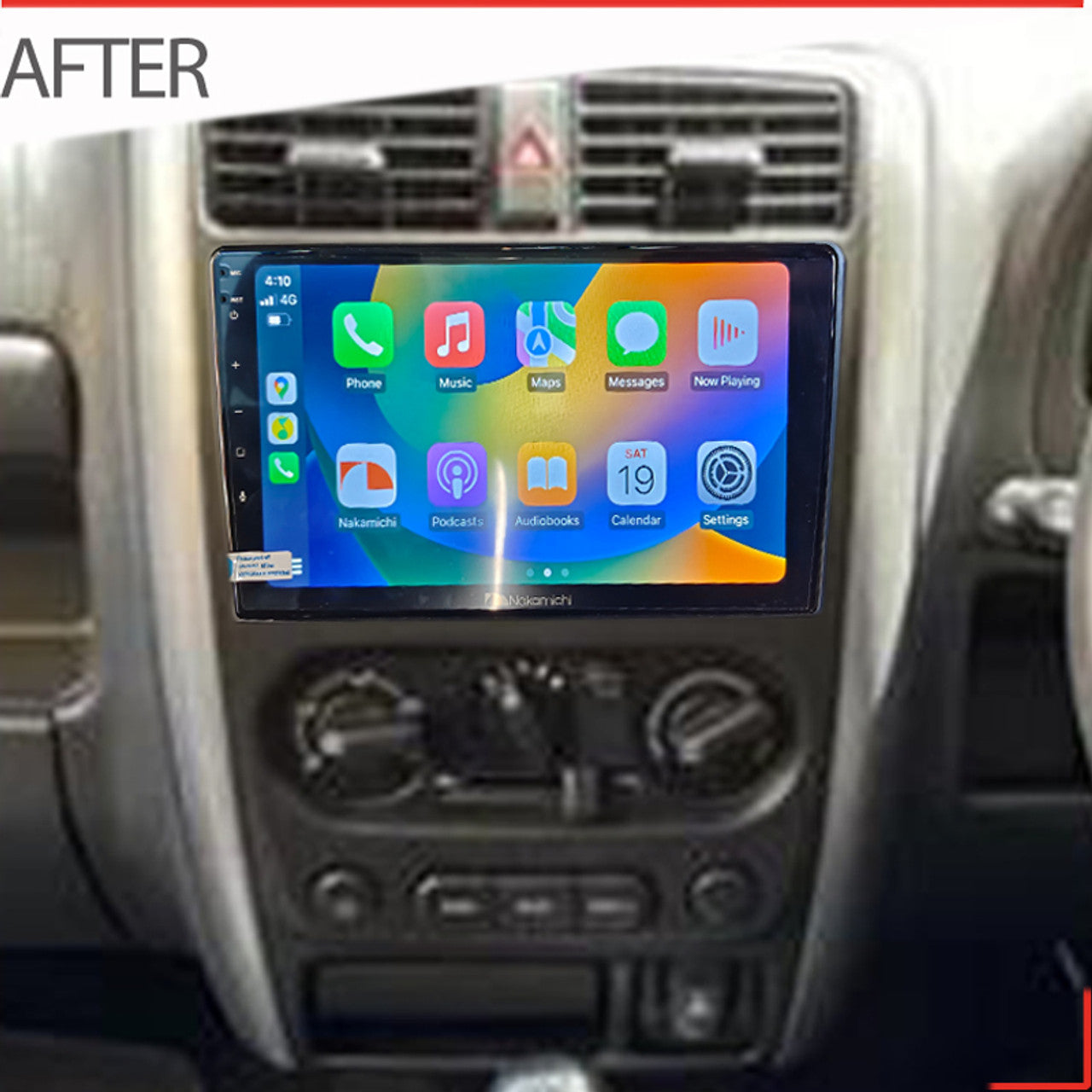

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Jimny 2005-2018

Compatibility:

• for Suzuki Jimny 2005-2018 models.

Important Notes:

• Supports steering wheel controls.

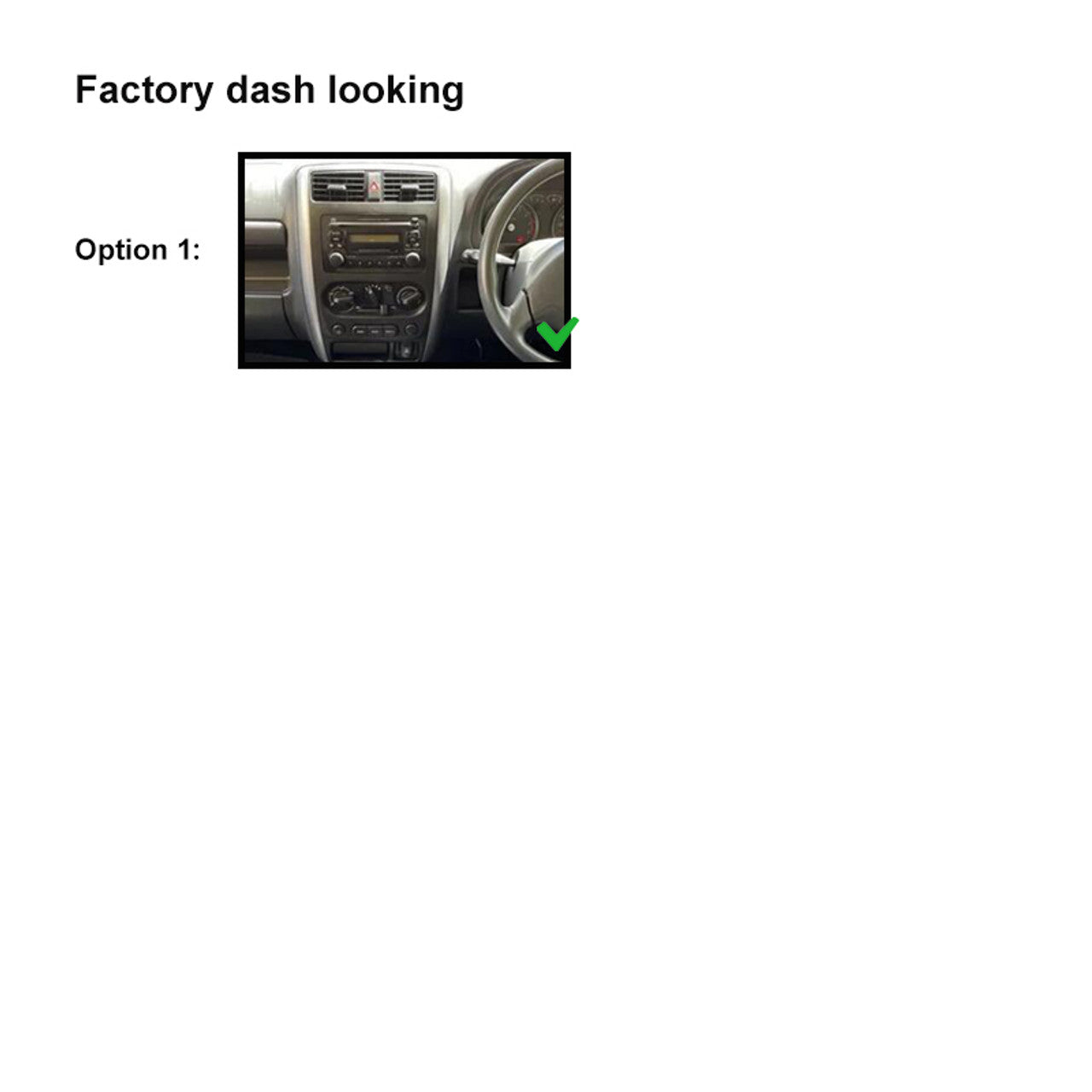

• Please send us a photo of your car’s dashboard along with the year and model when making the purchase, so we can send you the correct compatible harness.

Key Features:

Wireless Apple CarPlay
The ultimate co-pilot for your driving experience. Enjoy Apple CarPlay wirelessly, eliminating the need for cables. CarPlay offers a smarter, safer way to use your iPhone while driving. Get directions, make calls, send messages, and enjoy your favorite music, all displayed on your car’s screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for specific phone brands)
Pair your Android phone wirelessly to the car display. Your Android apps will appear on the screen, allowing you to get directions, send messages, or make hands-free calls. Android Auto helps you stay focused on the road, while enhancing your drive. Just plug in and go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

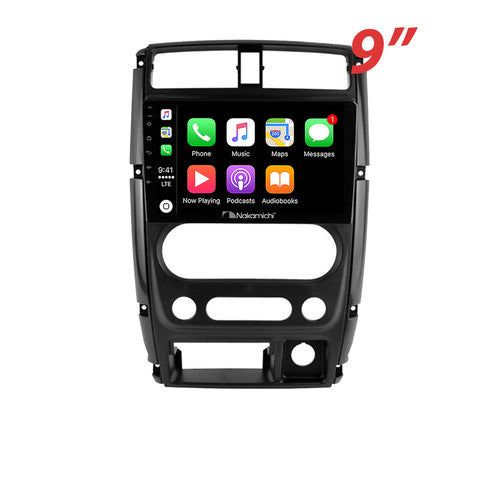

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
