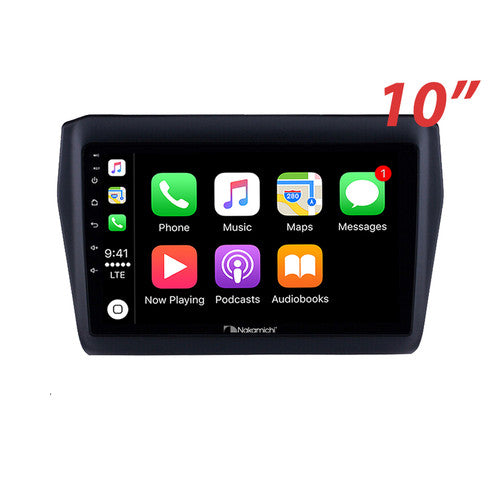

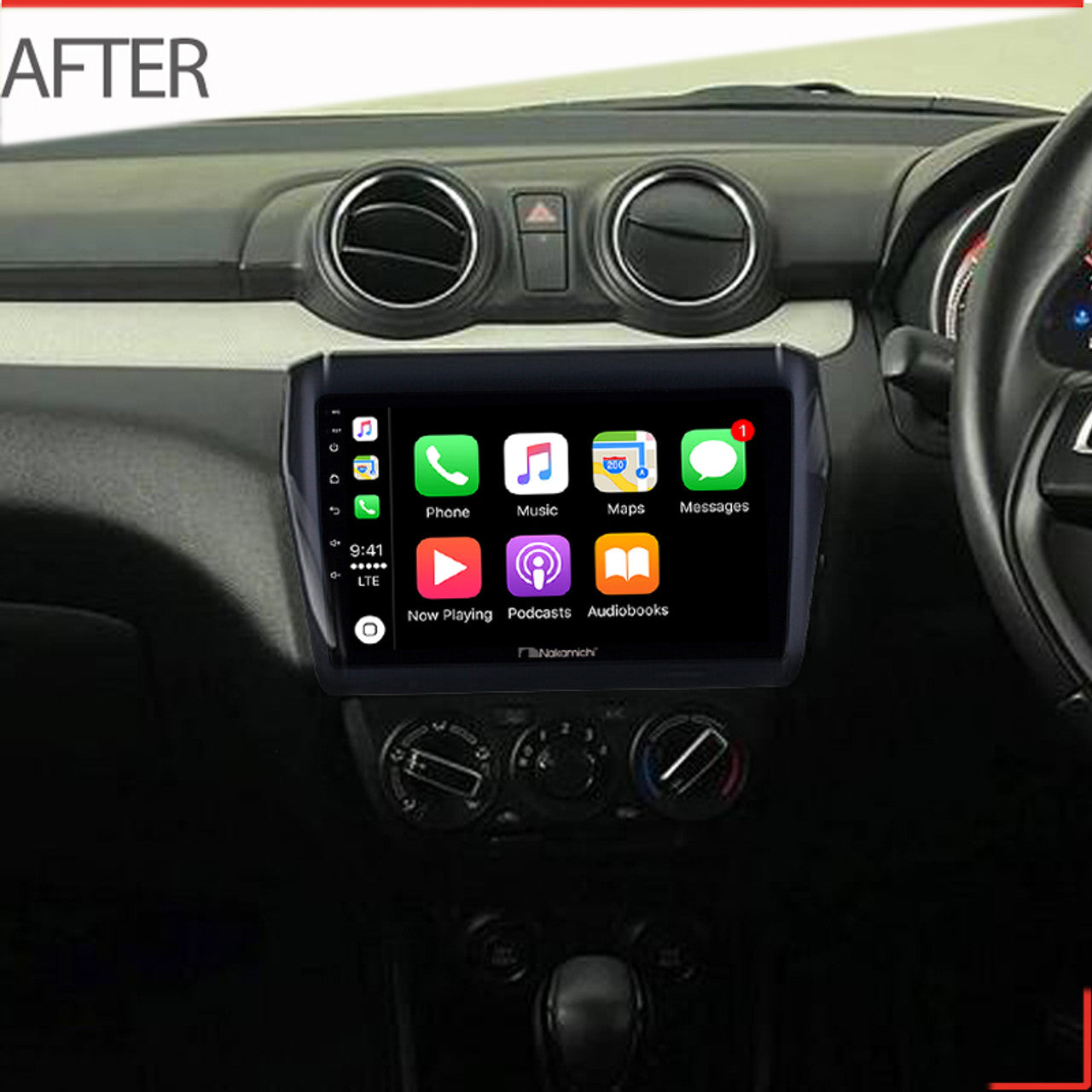

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Swift 2017+

Compatibility:

• for Suzuki Swift 2017 and newer models.

Important Notes:

• Supports steering wheel controls.

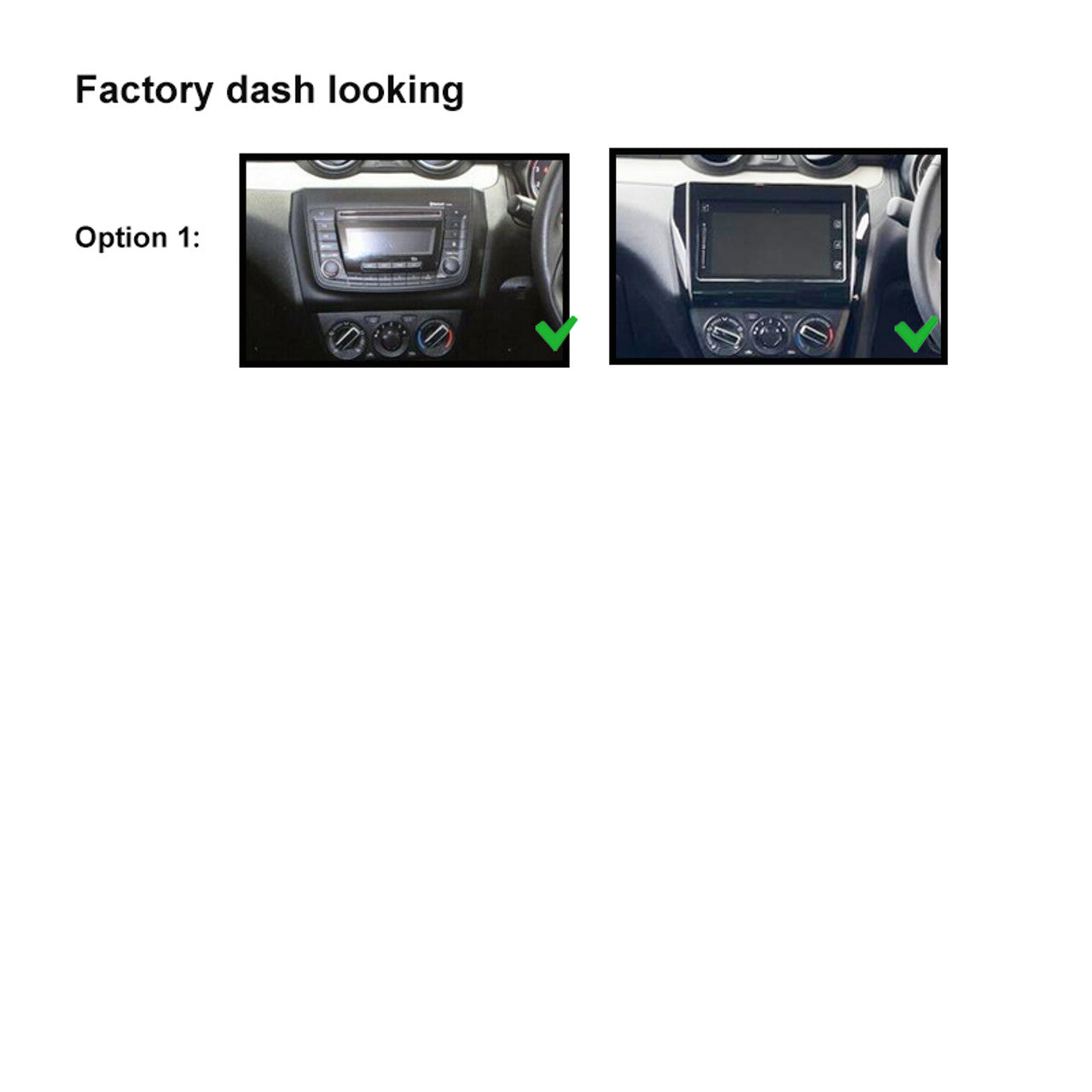

• Please send us a photo of your car’s dashboard along with the model and year at the time of purchase so we can ensure compatibility with the correct harness.

Key Features:

Wireless Apple CarPlay
The ultimate co-pilot for your car. Enjoy CarPlay without the hassle of cables. Apple CarPlay makes it safer and smarter to use your iPhone while driving. You can easily access directions, make calls, send messages, and enjoy your favorite music – all through your car’s display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for certain phone brands)
Pair your phone wirelessly with your car display. All your Android apps appear onscreen, making it easy to get directions, send texts, or call hands-free. Android Auto is designed to help you stay focused on the road, while still making your drive fun and enjoyable. Simply plug in, and you're good to go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 10”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
