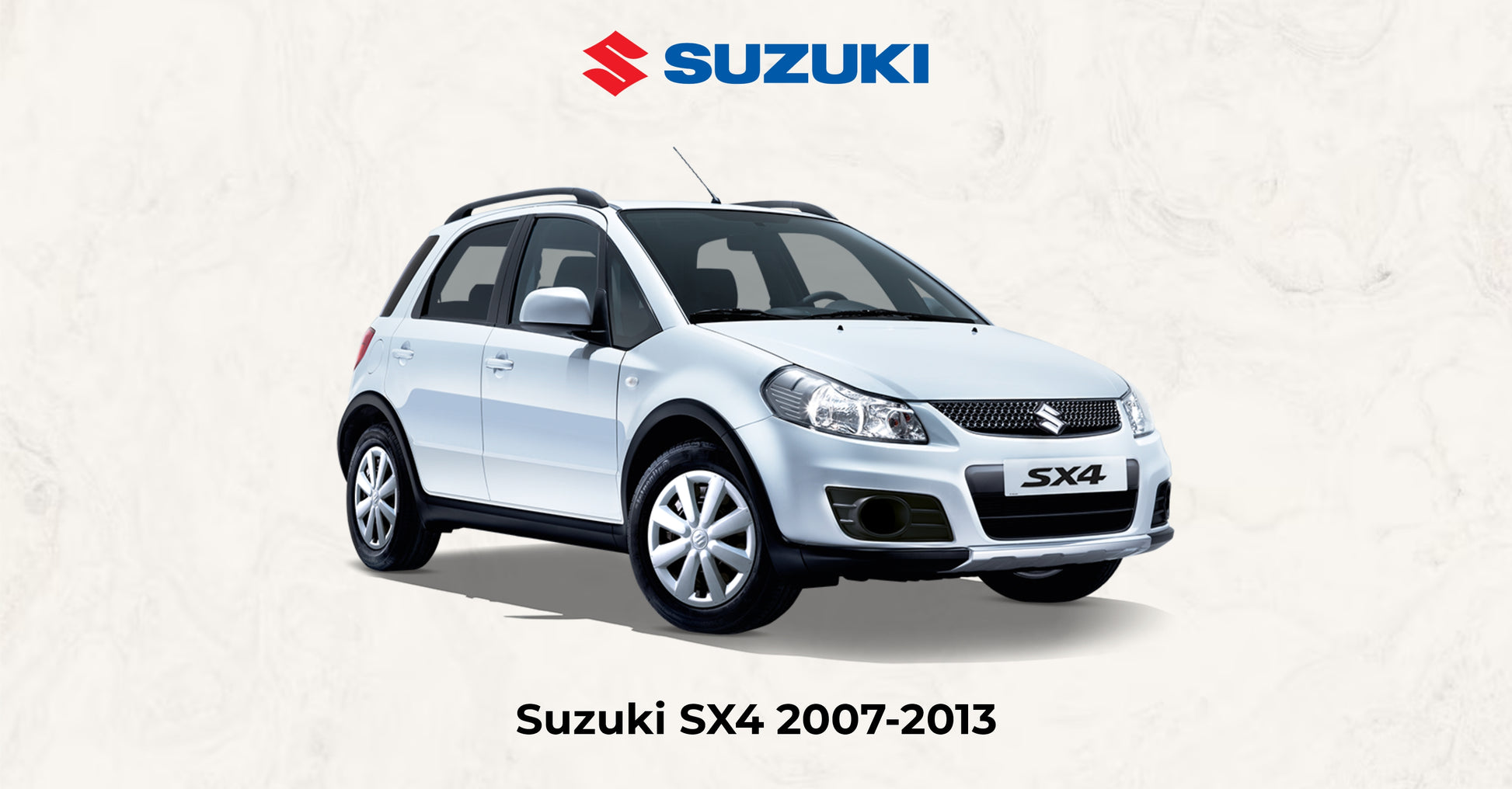

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki SX4 2007-2013

Compatibility:

• for Suzuki SX4 2007 to 2013 models.

Important Notes:

• Supports steering wheel controls.

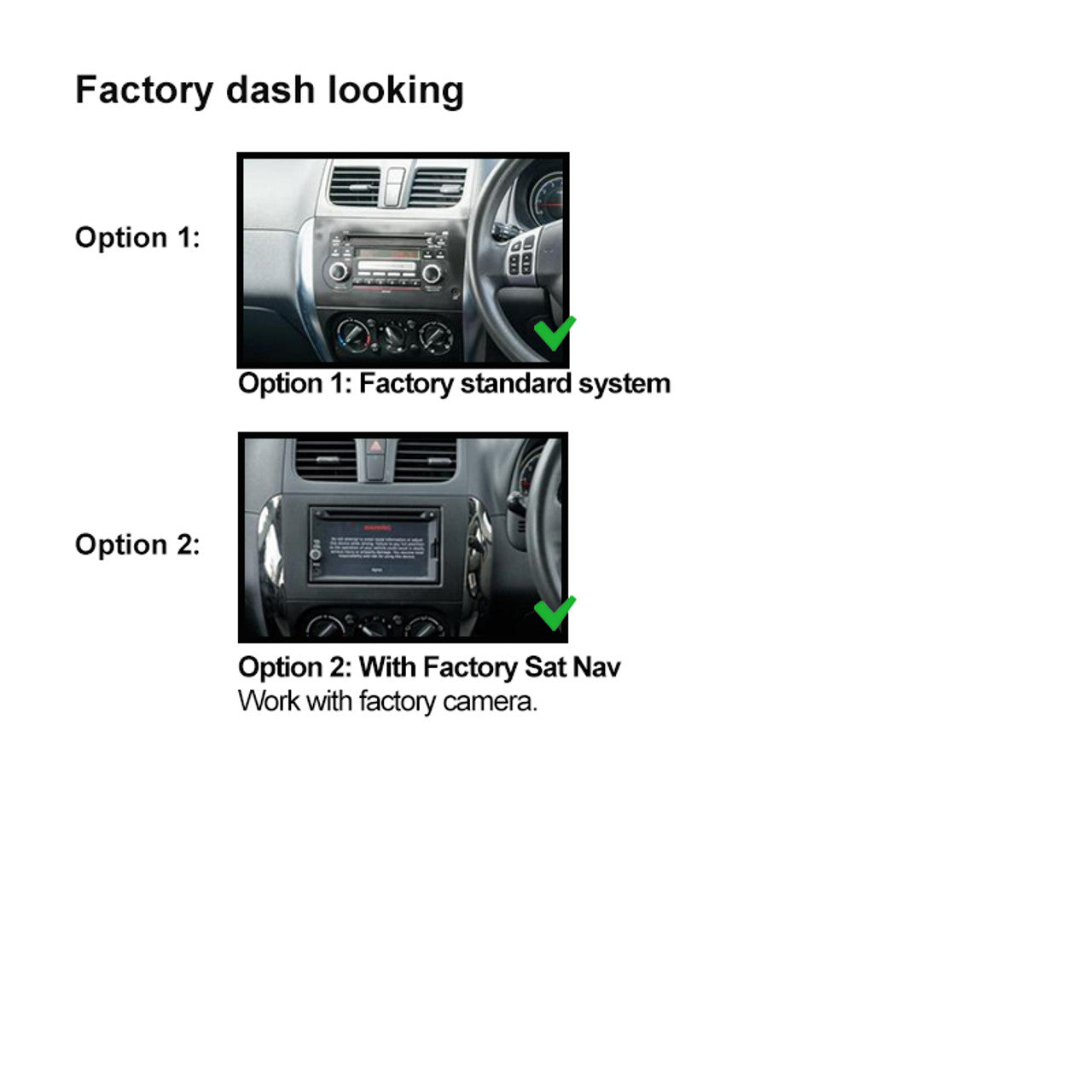

• Option 2: If your car has factory Sat Nav, this unit is compatible with the factory reverse camera.
• Please send us a photo of your car’s dashboard, along with the model and year when purchasing, so we can ensure compatibility with the correct harness.

Key Features:

Wireless Apple CarPlay
Experience CarPlay without the need for cables. Apple CarPlay lets you use your iPhone in a smarter, safer way while driving. Access navigation, make calls, send messages, and listen to music, all through your car’s built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for the CarPlay Dashboard.

Wireless Android Auto (Wired for certain phone brands)
Wirelessly pair your Android phone to the car's display. Your favorite Android apps will appear onscreen, making it easy to get directions, send texts, or make calls hands-free. Android Auto keeps you focused on the road while still enjoying your drive. Simply plug in and go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

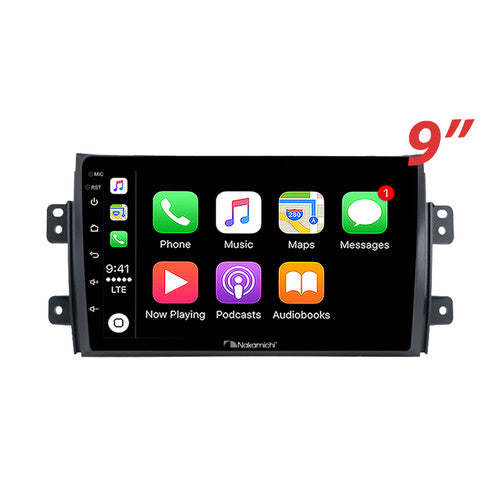

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
