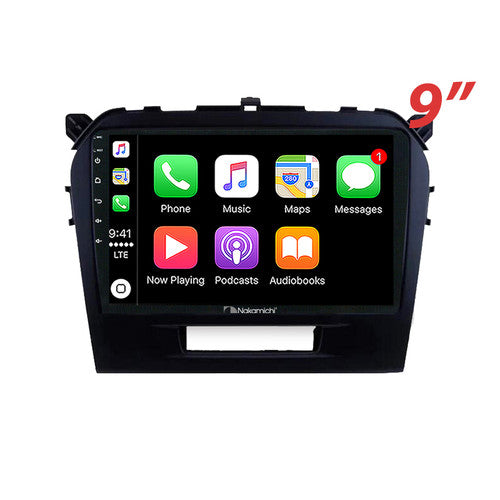

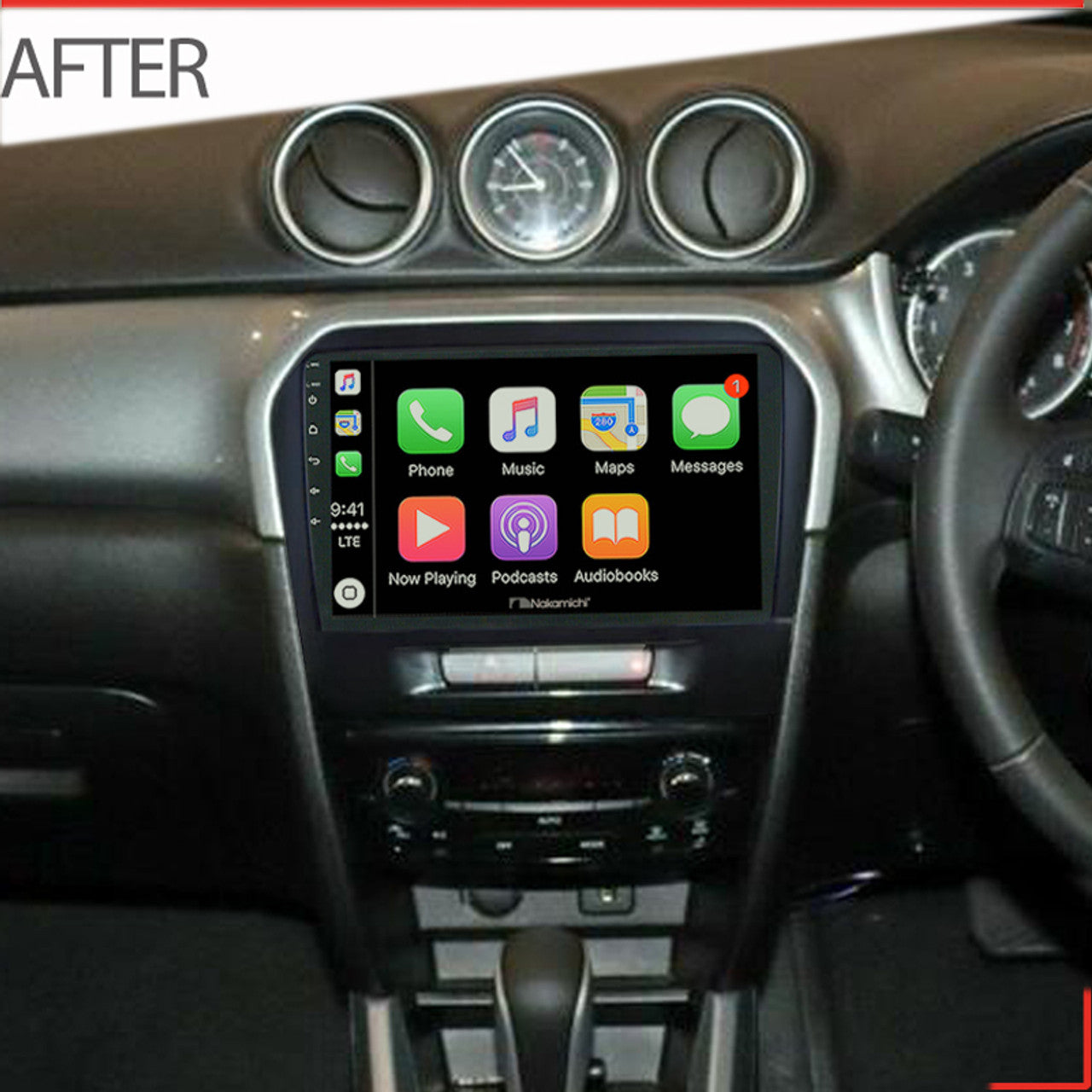

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Suzuki Vitara 2015+

Compatibility:

• for Suzuki Vitara 2015 and newer models.

Important Notes:

• Supports steering wheel controls.

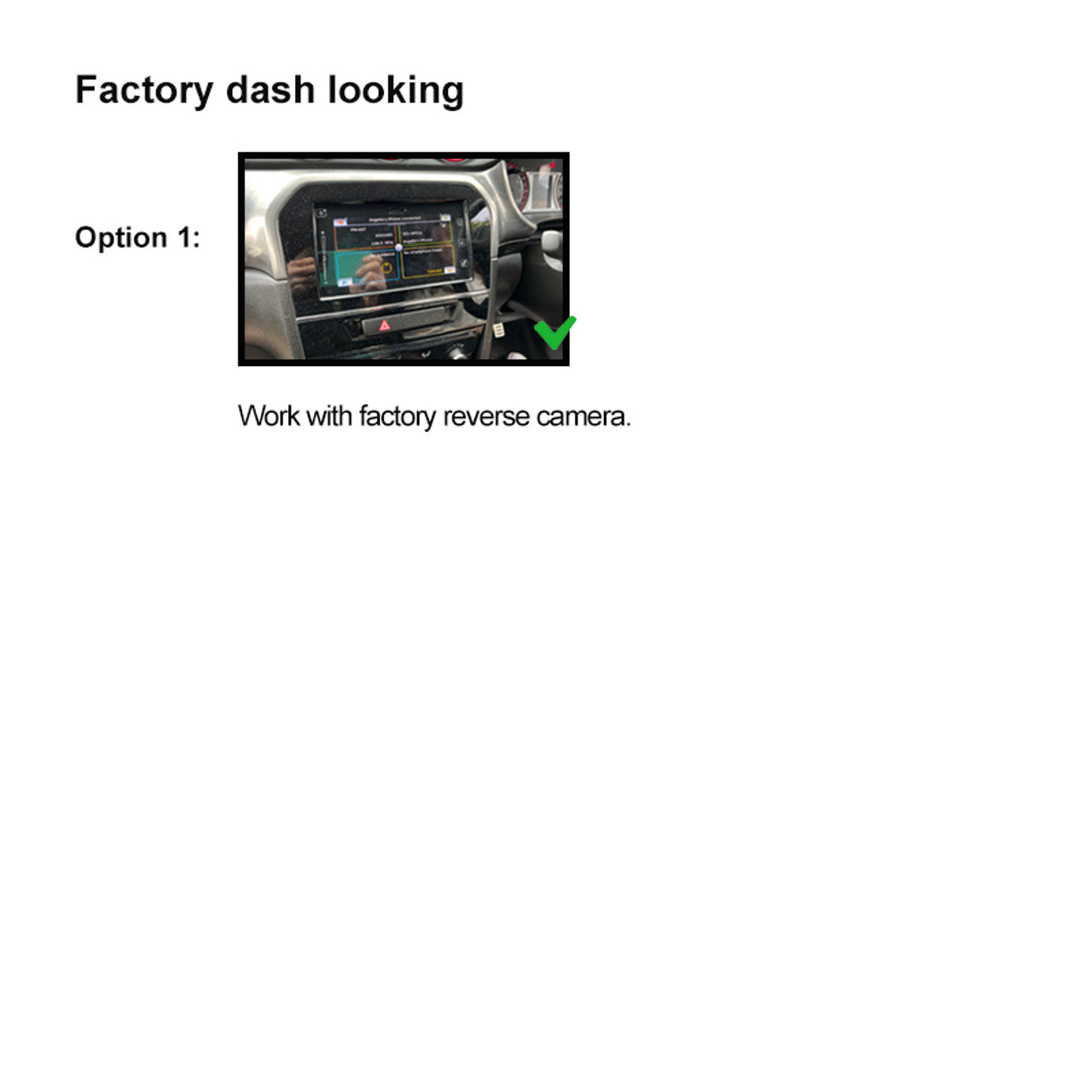

• Works with factory reverse camera.
• Please send us a photo of your car’s dashboard, along with the model and year when purchasing, so we can send the correct compatible harness.

Key Features:

Wireless Apple CarPlay
Enjoy the ultimate co-pilot experience without the hassle of cables. Apple CarPlay makes it safer and smarter to use your iPhone while driving. You can access directions, make calls, send and receive messages, and enjoy music – all displayed on your car's built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for certain phone brands)
Connect your phone without cables and get on the road. Android Auto brings your favorite apps to the car’s display. Access driving directions, send text messages, and make hands-free calls. Android Auto helps you stay focused on the road and enjoy the journey.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
