Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Alphard 2015+

Compatibility:

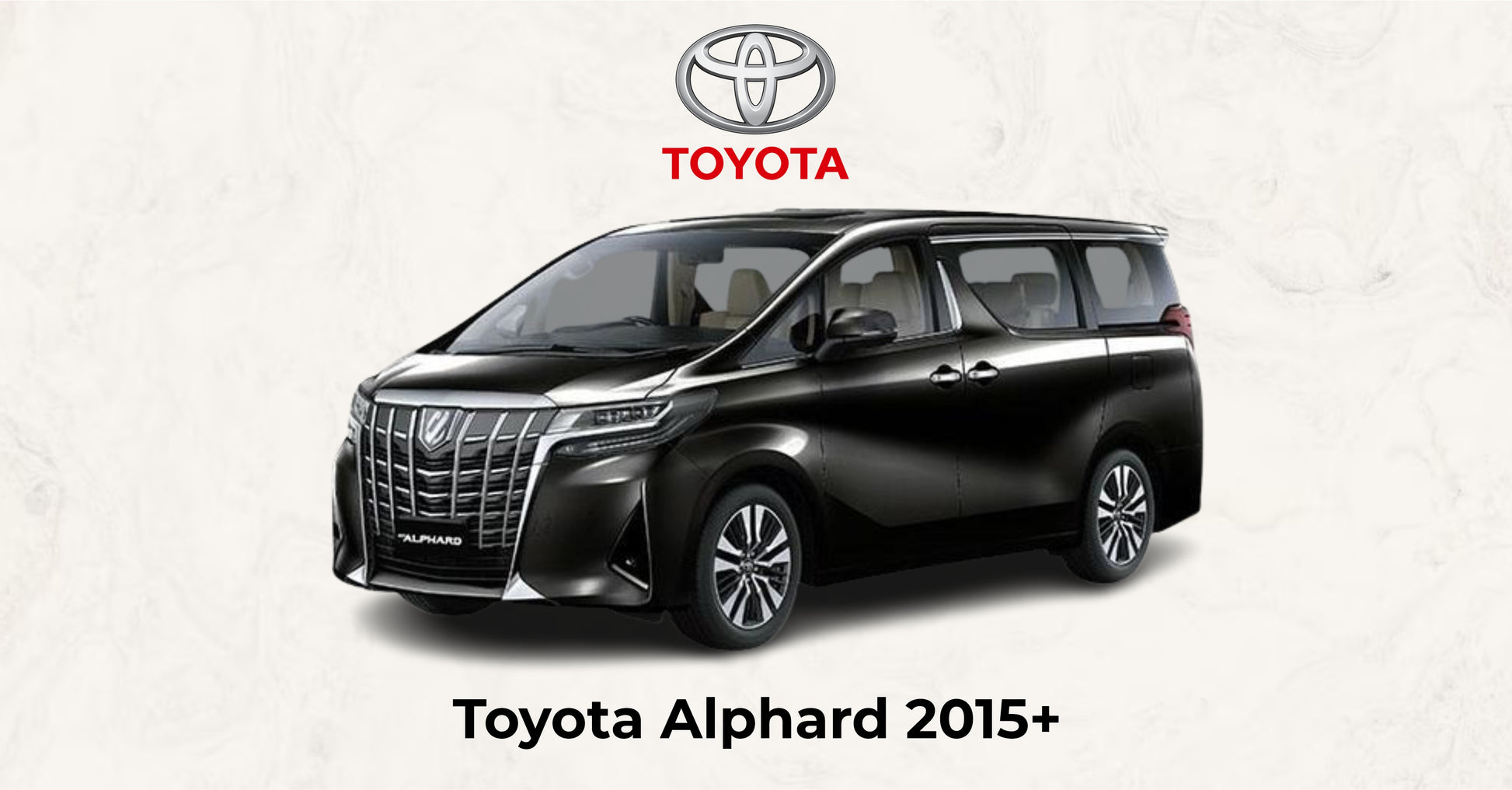

• for Toyota Alphard 2015 and newer models.

Important Notes:

• Supports steering wheel controls.
• Works with factory 360° camera for amplified stereo systems.

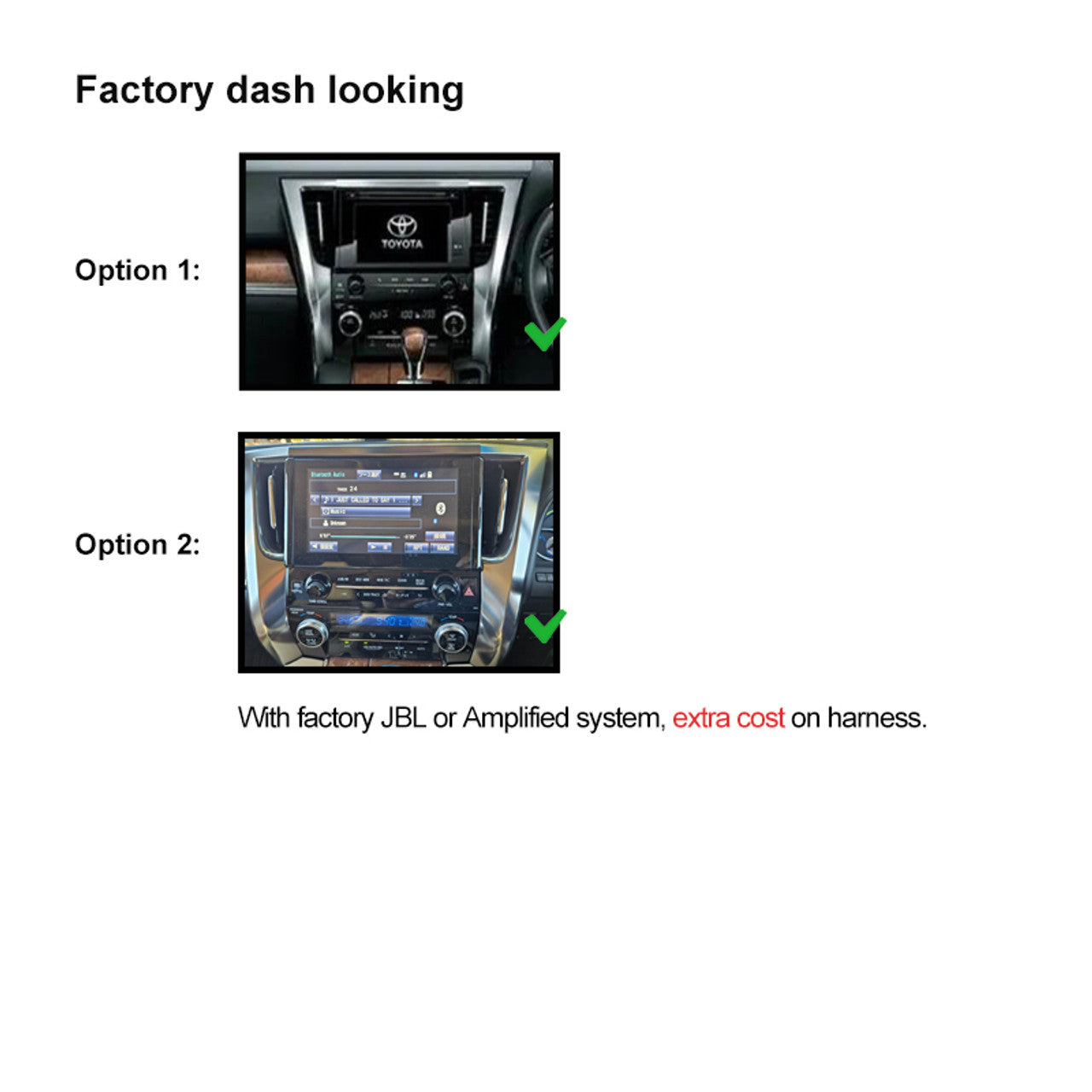

• For vehicles with factory JBL or an amplified system, additional costs for specific harness may apply.
• Please send us a photo of your car's dashboard along with the model and year when purchasing, so we can send the appropriate compatible harness.

Key Features:

Wireless Apple CarPlay
Experience the ultimate co-pilot without the hassle of cables. CarPlay allows you to safely use your iPhone while driving. Get directions, make calls, send messages, and enjoy your favorite music – all displayed on your car’s built-in screen. With iOS, CarPlay offers new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some phone brands)
Enjoy a wireless connection for Android Auto! Connect your phone to your car's display and instantly see your Android apps. Get directions, send text messages, and make hands-free calls, all while staying focused on the road. Android Auto helps keep your drive smooth and fun. Just plug in and go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1 & V-OUT2: Video outputs

USB Interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

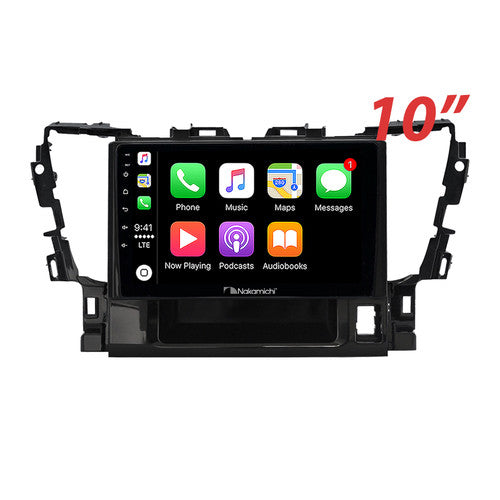

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

Specifications:

• TFT screen size: 10”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
