Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Aurion 2015+

Compatibility:

• for Toyota Aurion 2015 and newer.

Important notes:

• Supports steering wheel controls.

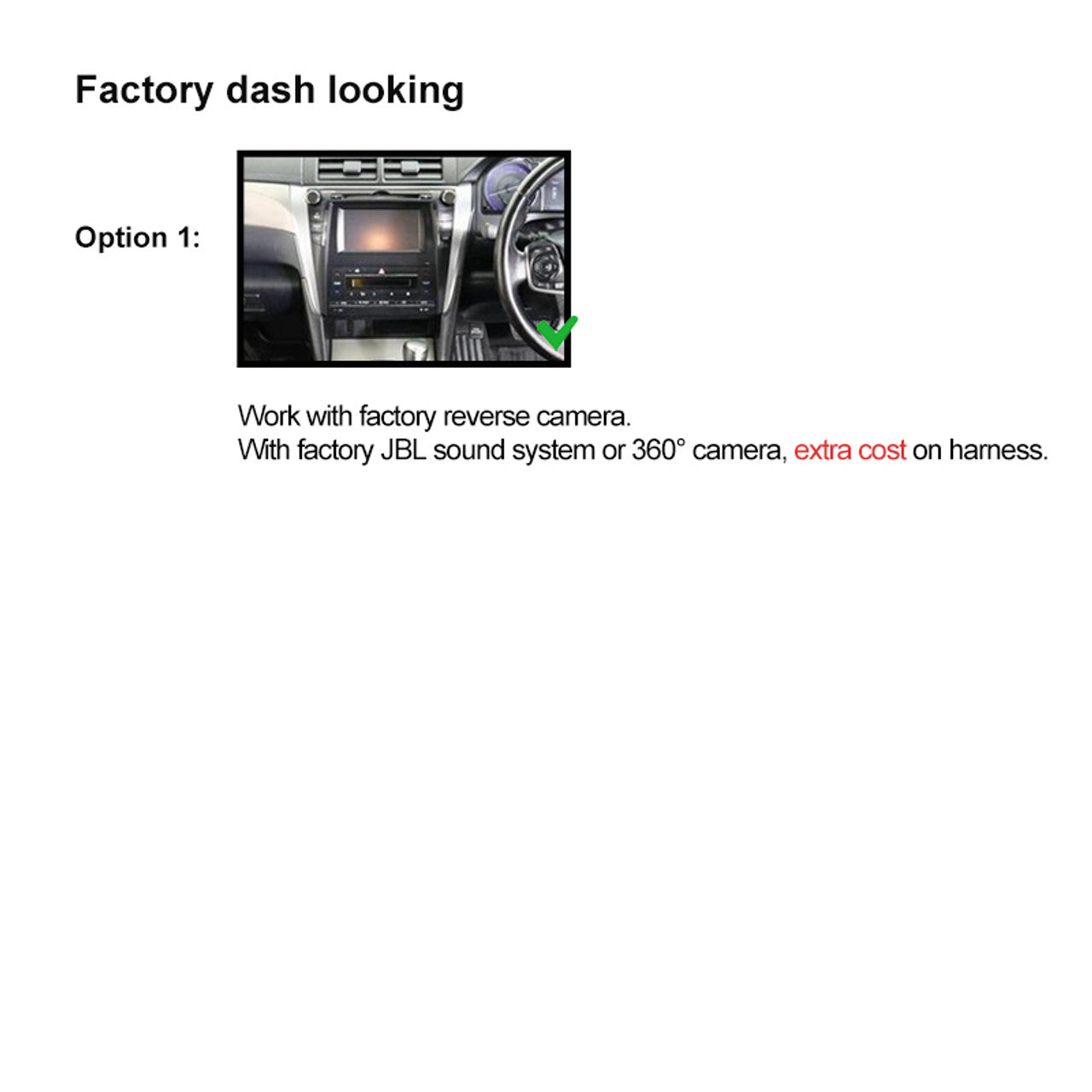

• Works with factory reverse camera.
• For vehicles with factory JBL or 360° cameras, additional costs for specific harness may apply.
• Please send us a photo of your car’s dashboard along with the model and year when purchasing, so we can send the appropriate compatible harness.

Key features:

Wireless Apple CarPlay
Enjoy CarPlay without the hassle of cables. Stay connected while driving, accessing directions, calls, messages, and music right from your car’s built-in display. With iOS, CarPlay offers new app categories and customizable wallpapers for an enhanced driving experience.

Wireless Android Auto (Wired for some phone brands)
Connect your Android device wirelessly and have your apps appear seamlessly on the car's display. Get directions, send messages, make hands-free calls, and more. Android Auto helps you stay focused on the road while having fun along the way. Simply connect and go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5m

Radio features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video capabilities:

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1 & V-OUT2: Video outputs

USB interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back unit inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA cable connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package contents:

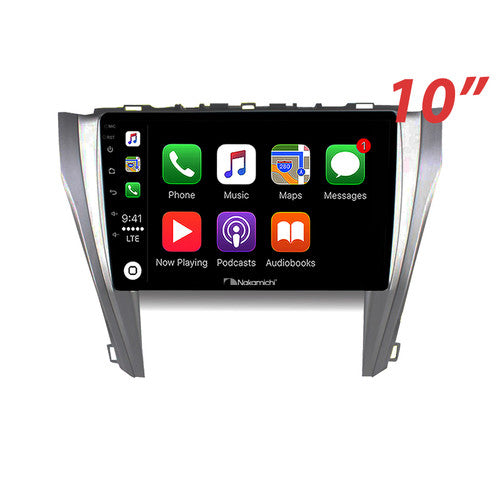

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. Variations are normal and do not affect compatibility.

Specifications:

• TFT screen size: 10”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
