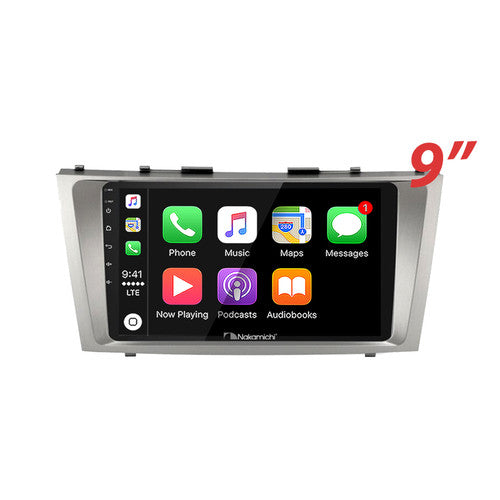

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Aurion & Camry 2007-2011

Compatible Models:

• Compatible with Toyota Aurion 2007-2011
• Compatible with Toyota Camry 2007-2011

Important notes:

• Supports steering wheel controls.

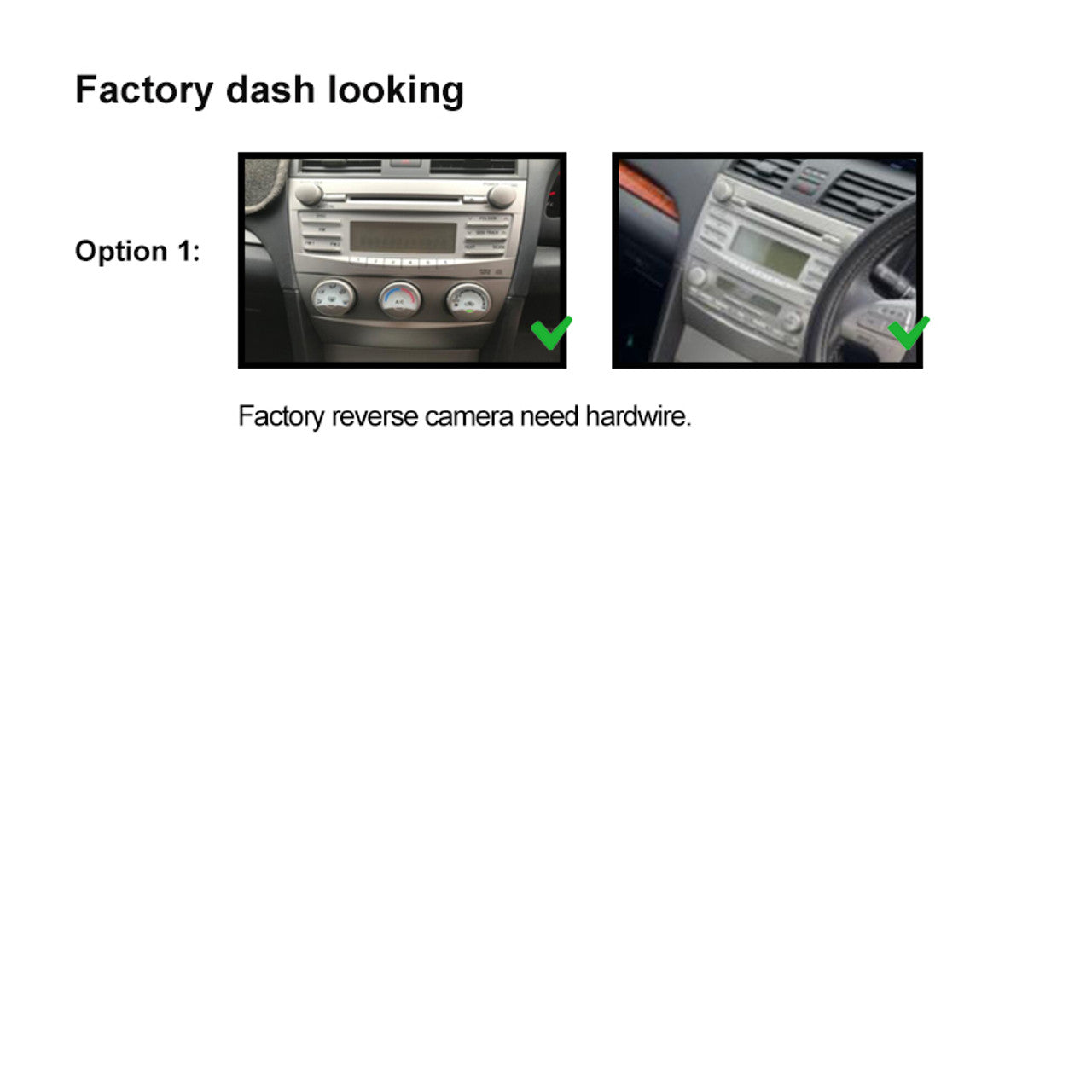

• Factory reverse camera requires hardwiring.
• Please send us a photo of your car’s dashboard along with the model and year when purchasing, so we can send the correct compatible harness.

Key features:

Wireless Apple CarPlay
Experience seamless connectivity with Apple CarPlay. Wirelessly connect your iPhone to your car's display for hands-free control of navigation, calls, messages, and music. Apple CarPlay also offers customized wallpapers and new app categories for iOS users, making your driving experience smarter and safer.

Wireless Android Auto (Wired for some phone brands)
Easily connect your Android phone wirelessly and have your apps appear on the car’s display. Android Auto makes it easy to get directions, send messages, and make hands-free calls, all while focusing on the road. Simply connect and go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5m

Radio features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video capabilities:

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1 & V-OUT2: Video outputs

USB interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back unit inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA cable connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Depending on the vehicle model, the accessory package may vary. Variations in accessories are normal and will not affect compatibility.

Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
