Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Camry 2012-2017

Compatibility:

• for Toyota Camry 2012-2017

Important notes:

• Supports steering wheel controls.
• Works with your vehicle’s factory reverse camera.
• If your car has a factory JBL sound system or factory 360° camera, an additional cost applies for the specific harness.
• Please send us a photo of your car's dashboard along with the model and year when placing an order, so we can send the correct harness for compatibility.

Key features:

Wireless Apple CarPlay
Experience the ultimate co-pilot with Apple CarPlay. Wirelessly connect your iPhone to your car's display, and easily access directions, make calls, send and receive messages, and enjoy your favorite music—all without the need for cables. With iOS, CarPlay also introduces new app categories and custom wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some phone brands)
Connect your Android phone wirelessly and enjoy seamless access to your apps on the car display. Get navigation directions, send hands-free texts, and make calls—all while staying focused on the road. Android Auto is designed to make your driving experience safer and more enjoyable.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5m

Radio features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video capabilities:

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1 & V-OUT2: Video outputs

USB interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back unit inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA cable connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Depending on the vehicle model, the accessory package may vary. Variations in accessories are normal and will not affect compatibility.

Specifications:

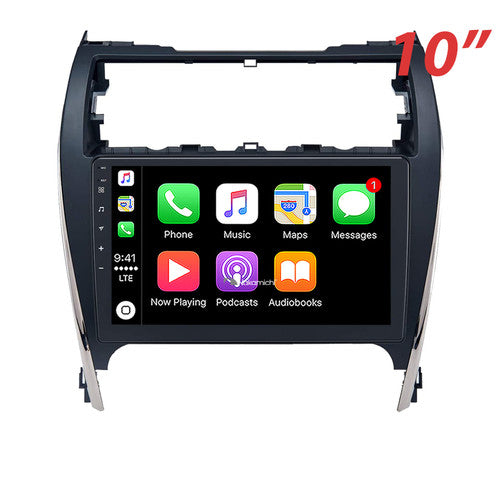

• TFT screen size: 10”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
