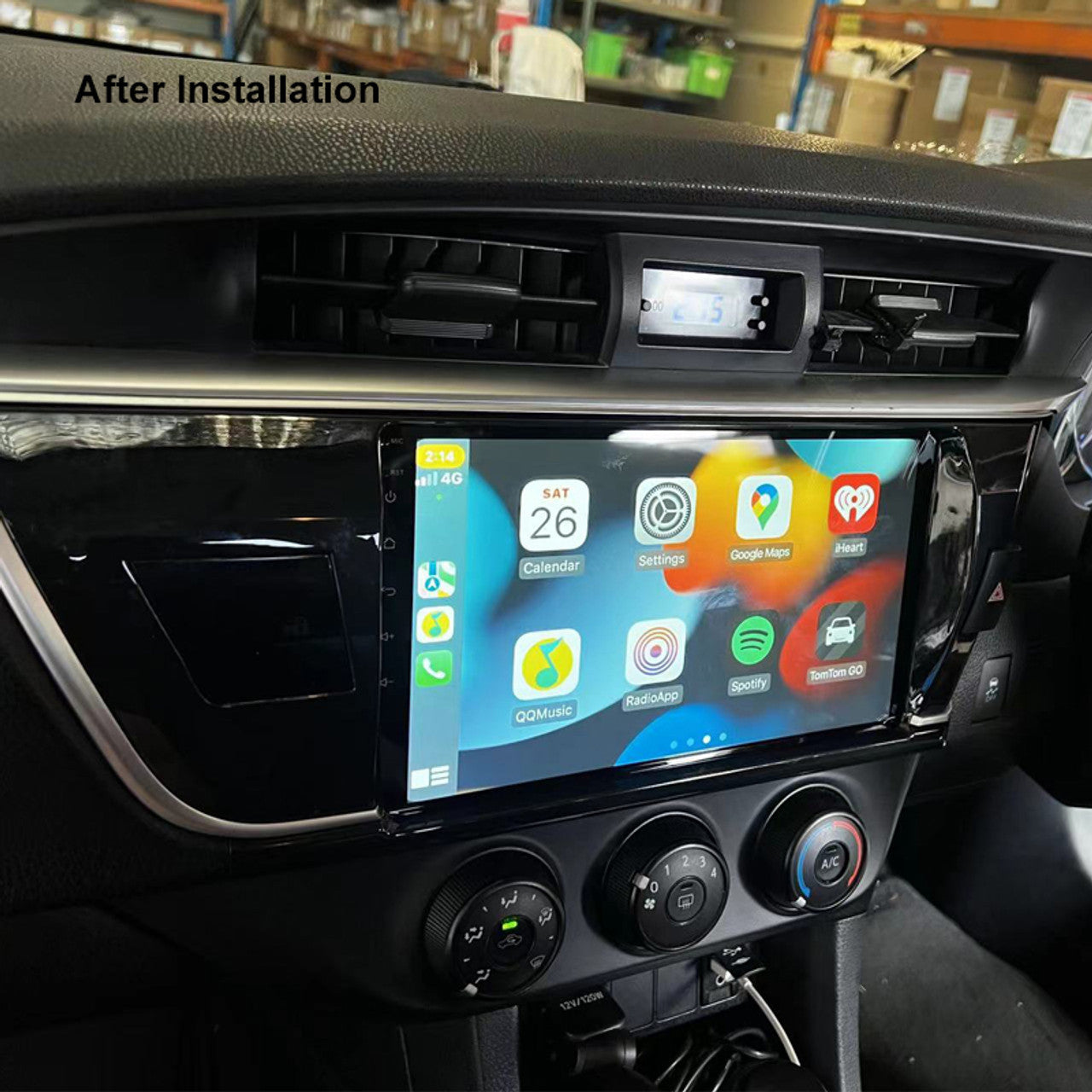

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Corolla 2013-2016 Sedan

Compatibility:

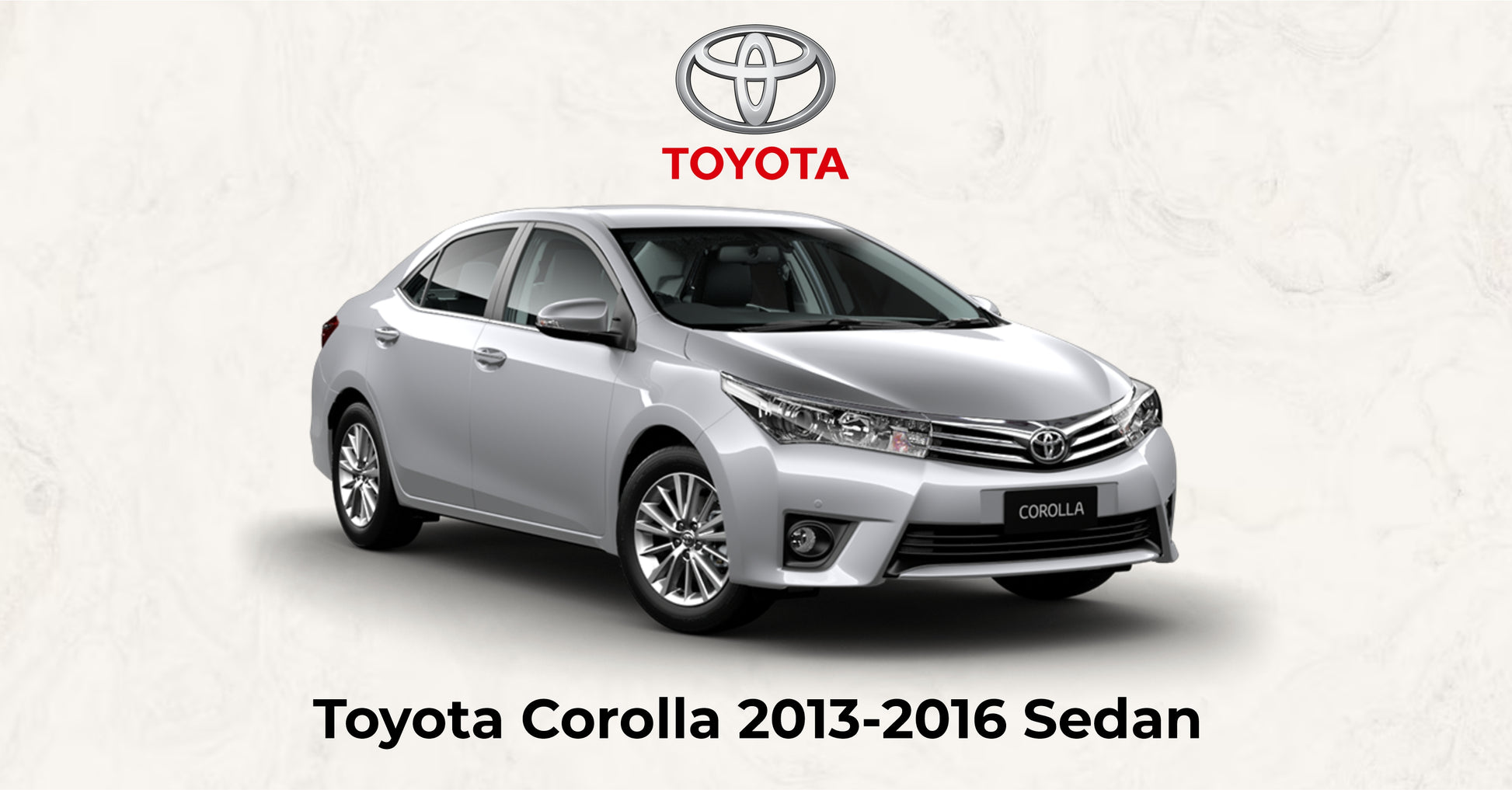

• for Toyota Corolla 2013-2016 Sedan

Important notes:

• Supports steering wheel controls.

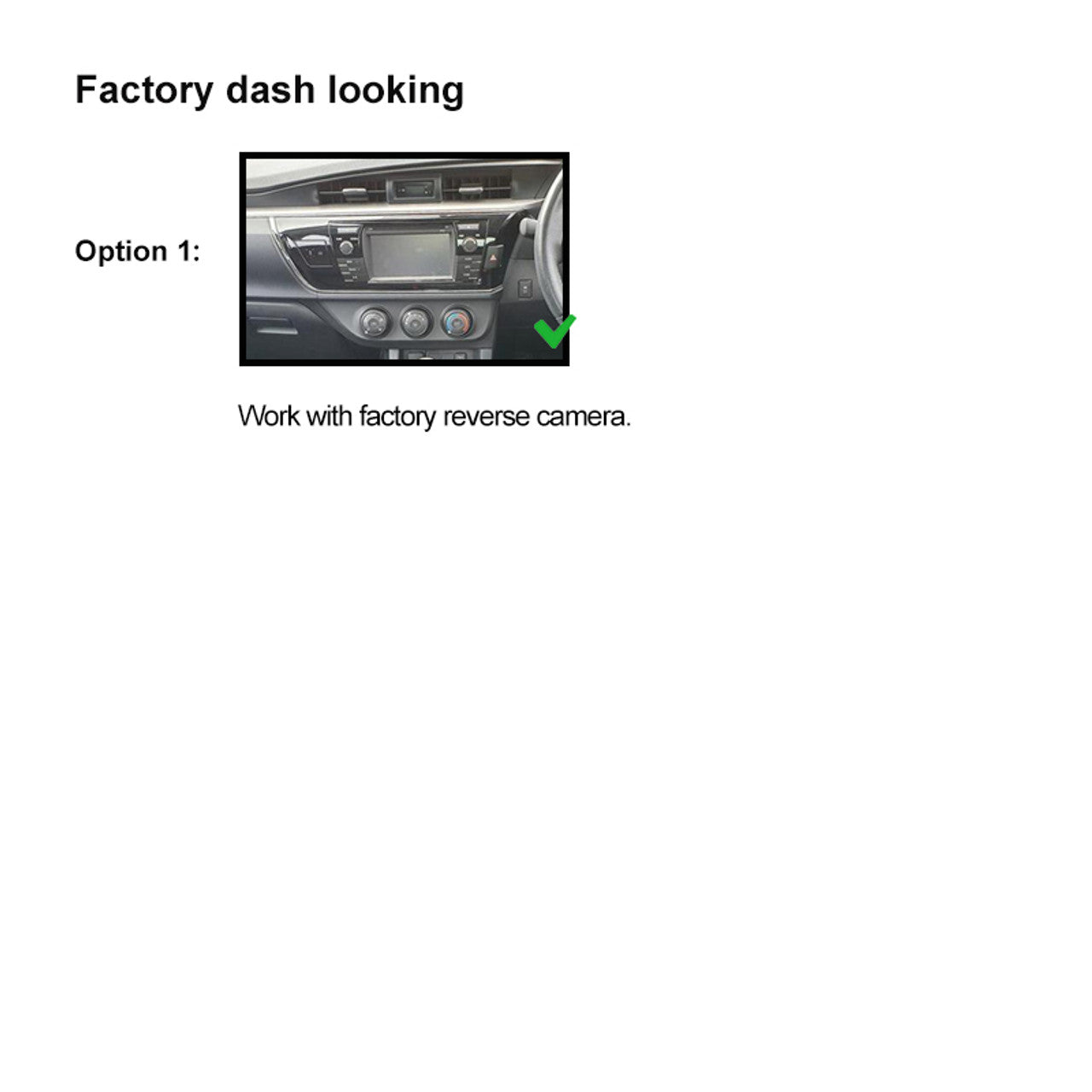

• Works with your vehicle’s factory reverse camera.
• Please send us a photo of your car's dashboard along with the model and year when placing an order, so we can send the correct harness for compatibility.

Key features:

Wireless Apple CarPlay
Experience the future of driving with Apple CarPlay. Wirelessly connect your iPhone to your car's display and access maps, calls, messages, and music effortlessly. Enjoy a safer and smarter driving experience with all-new app categories and customizable CarPlay dashboards.

Wireless Android Auto (Wired for some phone brands)
Seamlessly connect your Android phone to the car’s display, bringing your favorite apps to life. Get navigation directions, send hands-free texts, and make calls, all without taking your hands off the wheel. Android Auto is designed to enhance your driving experience.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5m

Radio features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video capabilities:

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1 & V-OUT2: Video outputs

USB interface:

• CP/AA: USB for CarPlay / Android Auto
• USB: For music and video playback

Back unit inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA cable connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Depending on the vehicle model, the accessory package may vary. Variations in accessories are normal and will not affect compatibility.

Specifications:

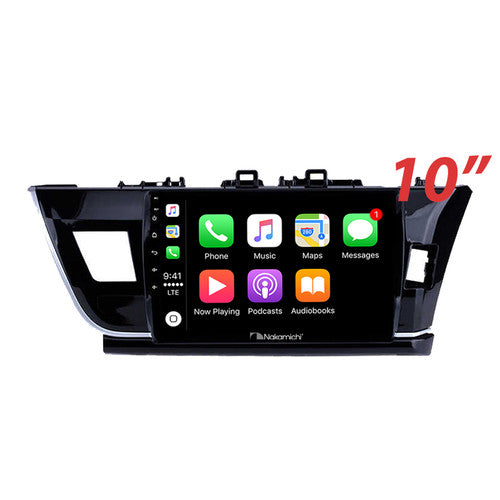

• TFT screen size: 10”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
