Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Corolla 2018+

Compatibility:

• for Toyota Corolla 2018+

Important Notes:

• Compatible with Steering Wheel Controls.

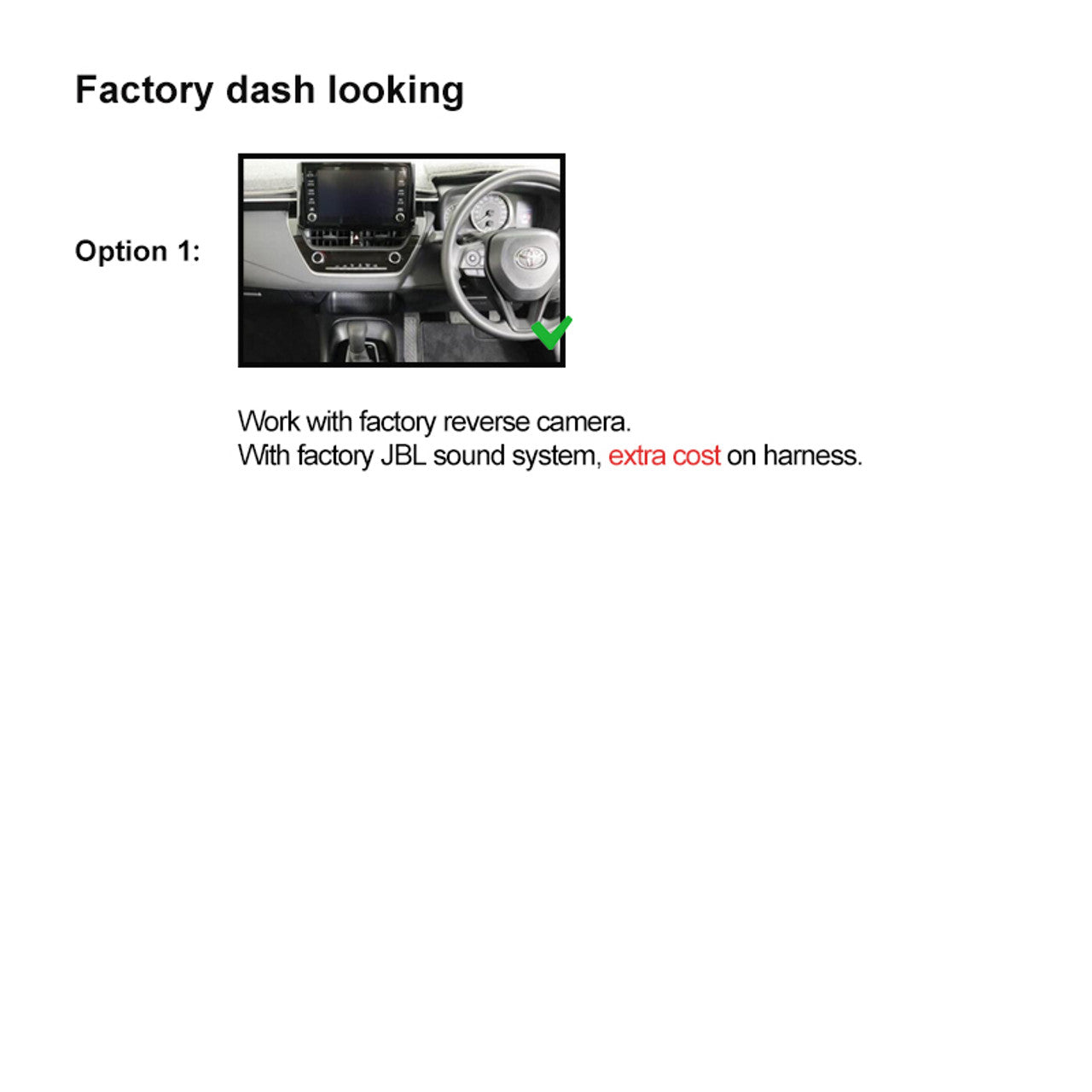

• Works with the factory reverse camera.
• If your car has a factory JBL system, an additional cost for a specific harness may apply.
• Please send us a photo of your dashboard along with your car’s year and model when purchasing so we can ensure compatibility and send you the correct harness.

Key Features:

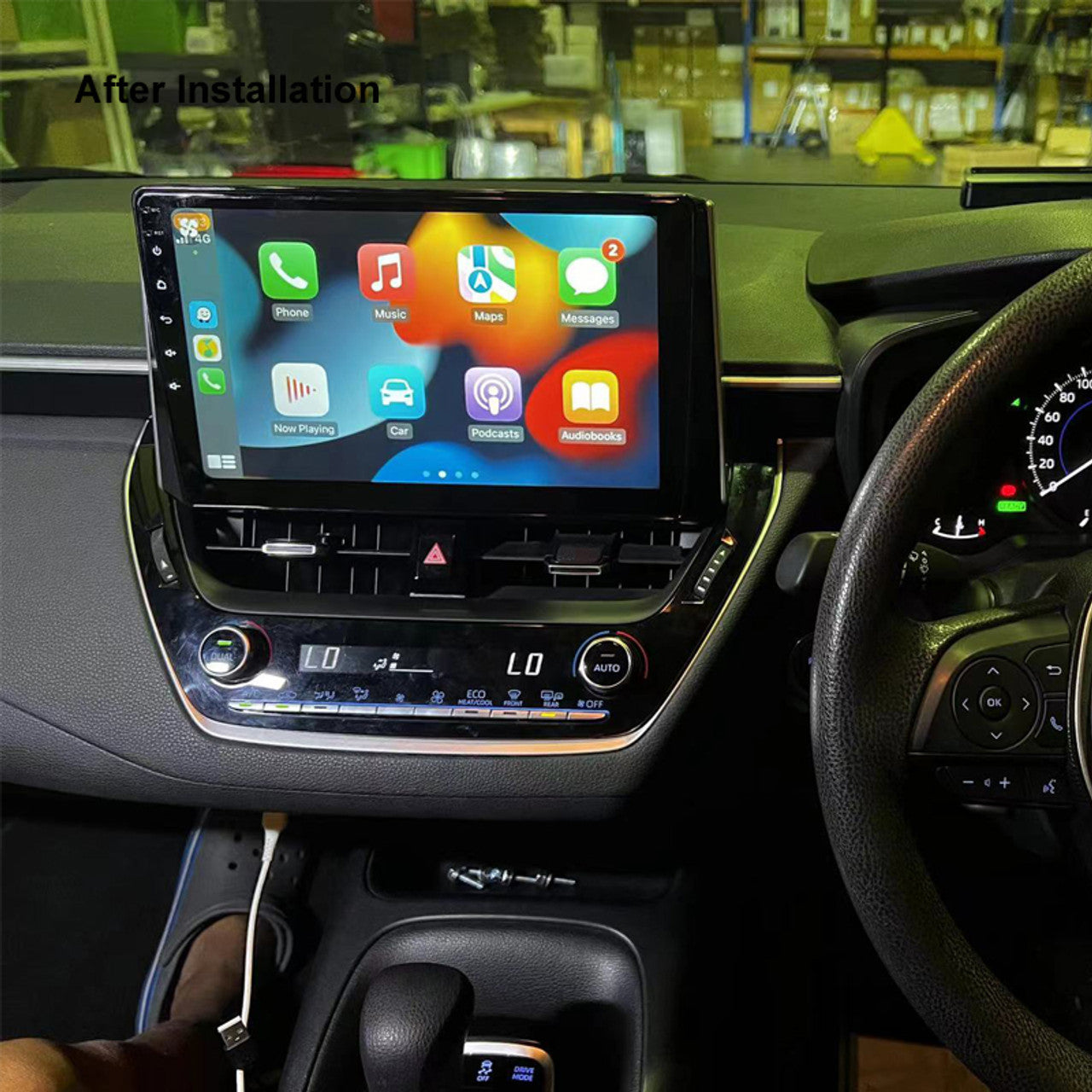

WIRELESS APPLE CARPLAY
The Ultimate Co-Pilot. With Wireless Apple CarPlay, you can access all your iPhone features without cables. Get directions, make calls, send and receive messages, and enjoy your music—all on your car's built-in display. iOS also brings new app categories and customizable wallpapers to the CarPlay dashboard, providing a personalized in-car experience.

WIRELESS ANDROID AUTO (Wired for specific phone brands)
Pair your Android phone wirelessly to the car display for seamless integration. View apps on the screen, get driving directions, send text messages, and make hands-free calls. Android Auto keeps you focused on the road, making the drive safer and more enjoyable.

BLUETOOTH
Bluetooth Version: 5.0 + EDR
Frequency: 2.4GHz
Max Range: 5m

RADIO
FM Frequency Range: 87.5–108.0 MHz
AM Frequency Range: 522–1620 kHz
Preset Stations: 18 FM, 12 AM

AUDIO
Max Output Power: 4×50W
Pre-Output Voltage: 4V/10KΩ
Speaker Impedance: 4–8Ω

VIDEO

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB INTERFACE

• USB for CarPlay/Android Auto
• USB for Music/Video

ADDITIONAL INPUTS

• Radio Antenna Input
• Microphone Input

RCA CABLES

• Front/Rear Speaker Outputs
• Subwoofer Output
• Parking Brake Control
• Amplifier Control

Package Contents:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (*Different vehicle models may require different accessory packages, so some items may not match the listing exactly.)

General Specifications:

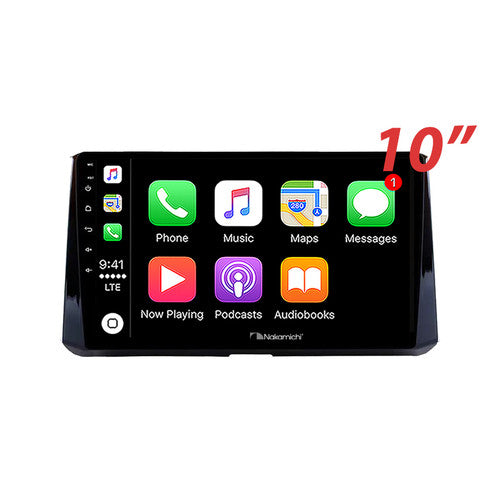

• TFT Screen Size: 10"
• Resolution: 1240×600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Charging/Reading: 5V/1A
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
