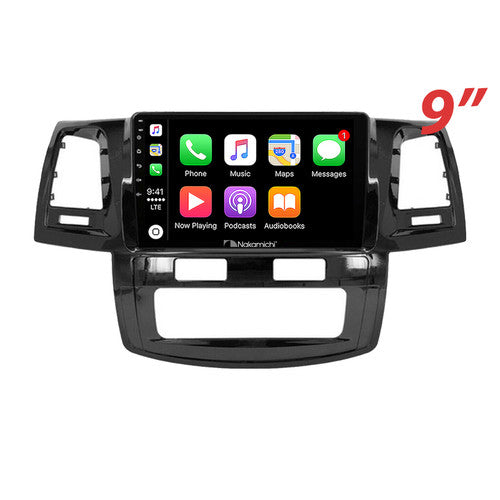

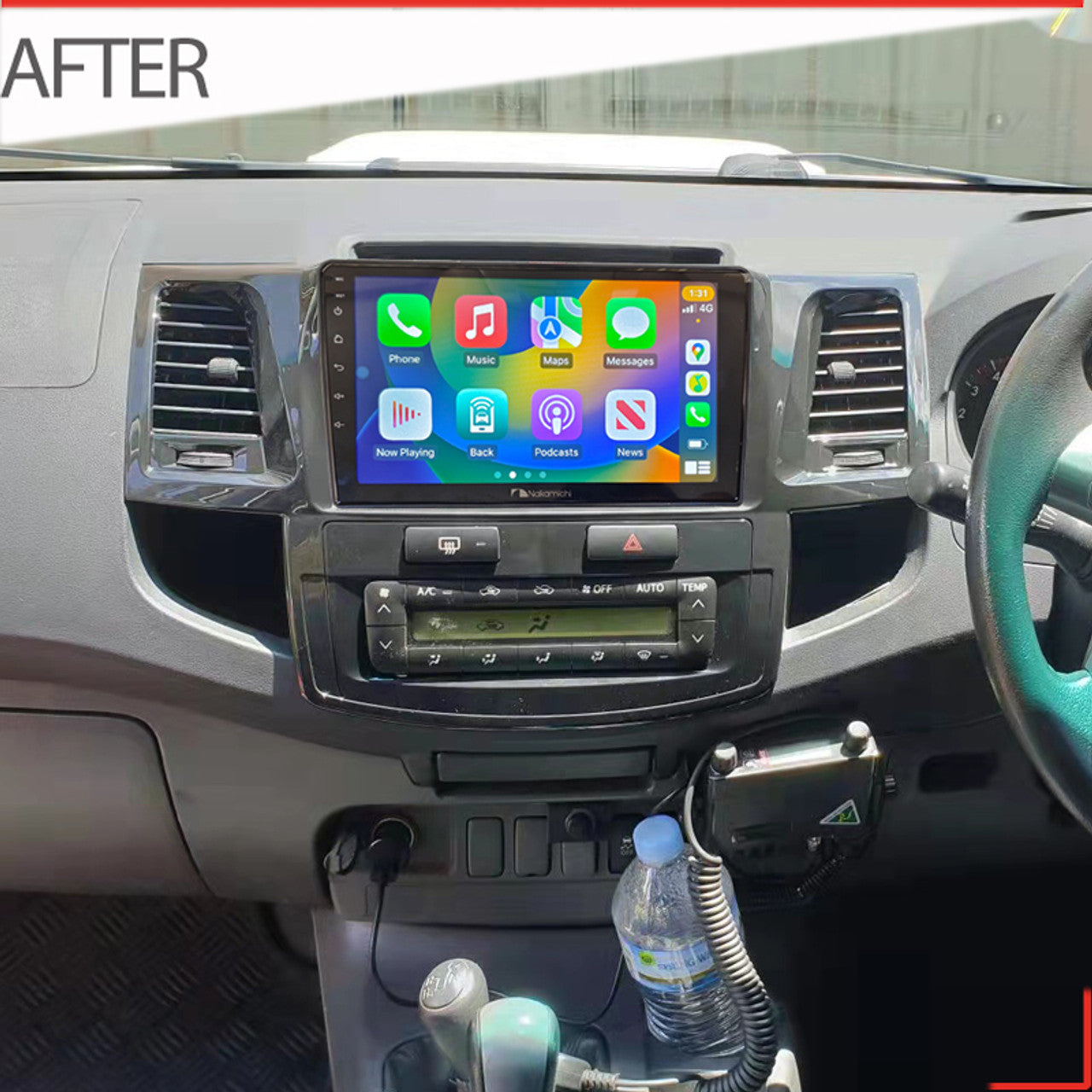

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Hilux 2005-2014 (Auto A/C)

Compatibility:

• for Toyota Hilux (2005-2014) Auto A/C

Important Notes:

• Compatible with Steering Wheel Controls.
• Factory reverse camera requires hardwiring.
• Please send us a photo of your vehicle’s dashboard along with the year and model when purchasing, so we can send you the compatible harness.

Key Features:

WIRELESS APPLE CARPLAY
Experience the ultimate co-pilot with Wireless Apple CarPlay. Effortlessly use your iPhone for directions, calls, messages, and music without any cables. CarPlay makes your drive smarter and safer, with new app categories and customizable wallpapers for your CarPlay dashboard.

WIRELESS ANDROID AUTO (Wired for some phone brands)
Connect your Android phone wirelessly to the car display for easy access to apps, driving directions, text messages, and hands-free calls. Android Auto keeps you focused on the road, with a fun and interactive experience along the way.

BLUETOOTH
Bluetooth Version: 5.0 + EDR
Frequency: 2.4GHz
Max Range: 5m

RADIO
FM Frequency Range: 87.5–108.0 MHz
AM Frequency Range: 522–1620 kHz
Preset Stations: 18 FM, 12 AM

AUDIO
Max Output Power: 4×50W
Pre-Output Voltage: 4V/10KΩ
Speaker Impedance: 4–8Ω

VIDEO

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB INTERFACE

• USB for CarPlay/Android Auto
• USB for Music/Video

ADDITIONAL INPUTS

• Radio Antenna Input
• Microphone Input

RCA CABLES

• Front/Rear Speaker Outputs
• Subwoofer Output
• Parking Brake Control
• Amplifier Control

Package Contents:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (*Different vehicle models may require different accessory packages, so some items may not match the listing exactly.)

General Specifications:

• TFT Screen Size: 9"
• Resolution: 1240×600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Charging/Reading: 5V/1A
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
