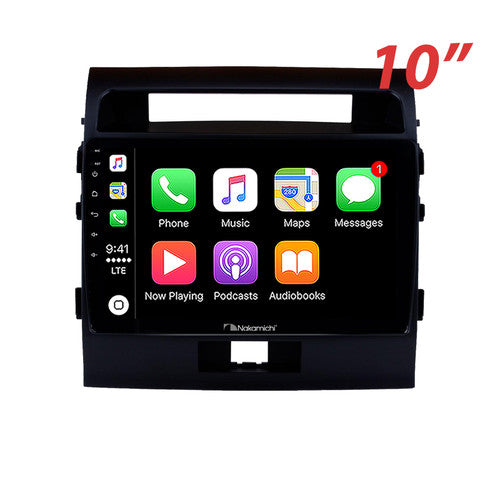

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Landcruiser 2007-2015

Compatibility:

• for Toyota Landcruiser 2007-2015.

Important Notes:

• Compatible with Steering Wheel Controls (SWC).
• Factory reverse camera requires hardwiring.

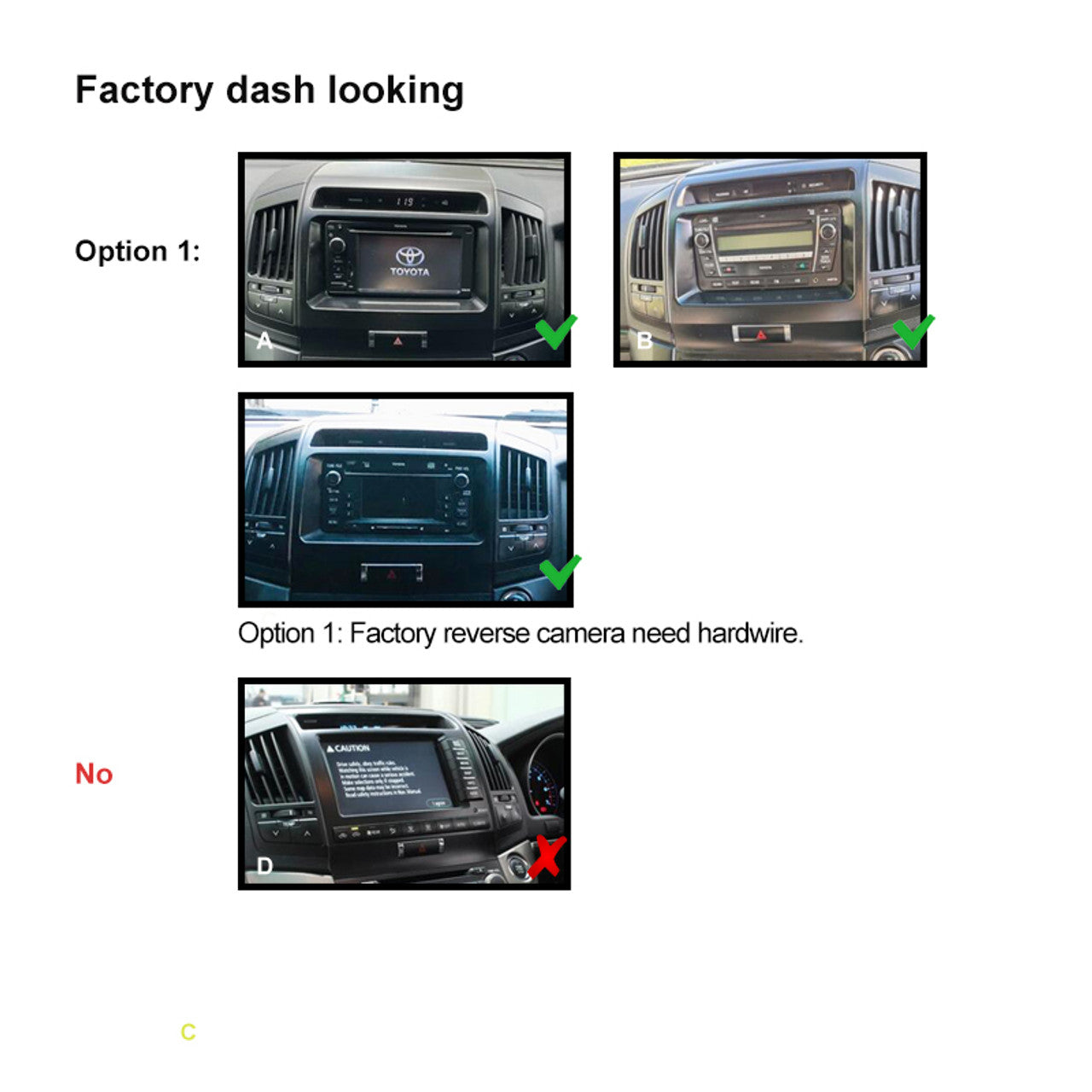

• Not compatible with factory big screen model.
• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure compatibility and receive the correct harness.

Main Features:

Wireless Apple CarPlay

• Enjoy wireless CarPlay for a safer, smarter driving experience. Access your iPhone for directions, calls, messages, and music through your car's built-in display. With iOS, CarPlay introduces all-new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto

• Connect your Android device wirelessly to your car’s display. Android Auto brings all your essential apps to the screen for hands-free calling, texting, navigation, and entertainment. Simply plug in and go!

Bluetooth 5.0

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Output

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio sources

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna input (ANT)
• Microphone input (MIC) for hands-free communication

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake input (PARK)
• Amplifier control input (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. This is normal, and the items may not match exactly as listed.

Tech Specs:

• TFT screen size: 10"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
