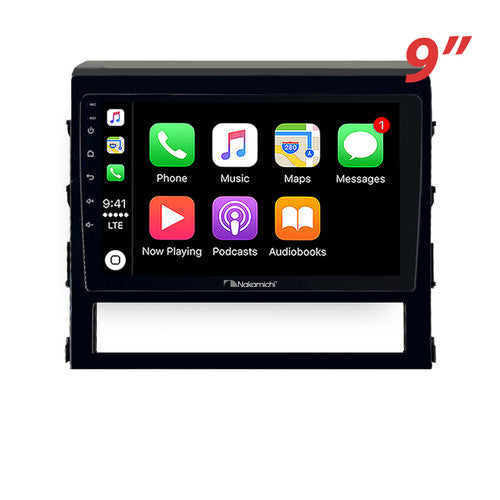

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota LandCruiser 2016-2021 200 Series

Compatibility:

• for Toyota LandCruiser 2016-2021 200 Series

Important Notes

• Compatible with steering wheel controls.
• Works with factory reverse camera.

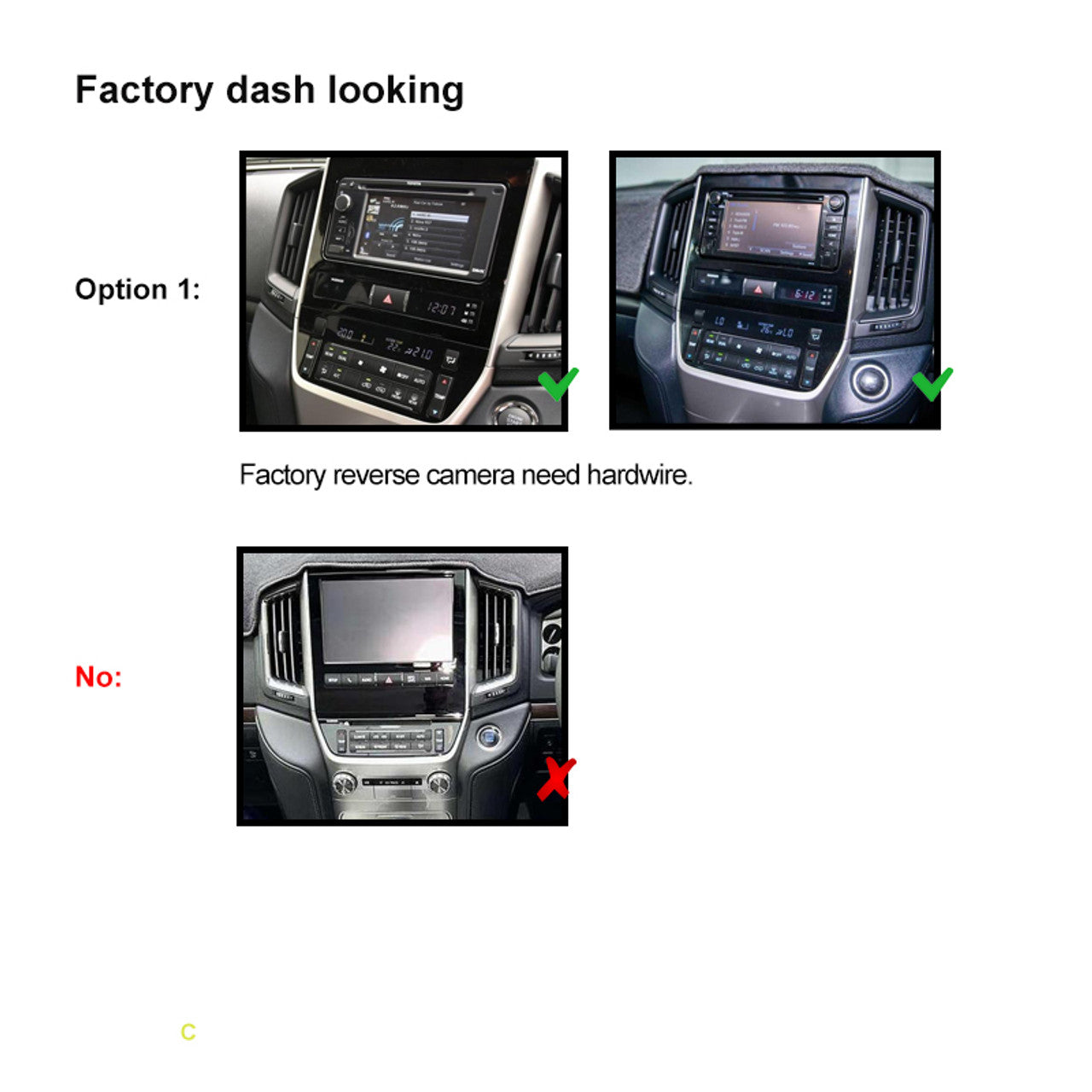

• Not compatible with factory large screen Sahara VX models.
• Please send a photo of your dashboard with your car’s year and model when purchasing so we can send you the compatible harness.

Key Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay offers a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. Plus, with iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some phone brands)
Pair your phone without cables—just hit the road. Pair your Android phone to the car display, and your apps will show up onscreen instantly. Get driving directions, send texts, or make hands-free calls—all while staying focused on the road. Android Auto is designed for a safer, more enjoyable driving experience.

Bluetooth

• Bluetooth Version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications

• Max Power: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Input (Rear): Left & Right

Video Inputs & Outputs

• Reverse Camera Video Input
• Extra Video Input (V-IN)
• Video Output 1 & 2 (V-OUT)

USB Connections

• USB for CarPlay/Android Auto
• USB for music or video playback

Other Inputs

• Radio Antenna Input
• Microphone Input

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessories may vary depending on the car model.)

General Specifications

• Screen Size: 9" TFT
• Resolution: 1240x600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Output: 5V/1A
• Supported Video Formats: H264/MP4/AVI/MKV/FLV
• Supported Audio Formats: MP3/APE/AAC/FLAC
