Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Landcruiser UTE 2007-2023 LC70 LC79 Series

Compatible Models:

• for Toyota Landcruiser UTE 2007-2023, LC70, LC79 Series.

Important Notes:

• Compatible with Steering Wheel Controls (SWC).

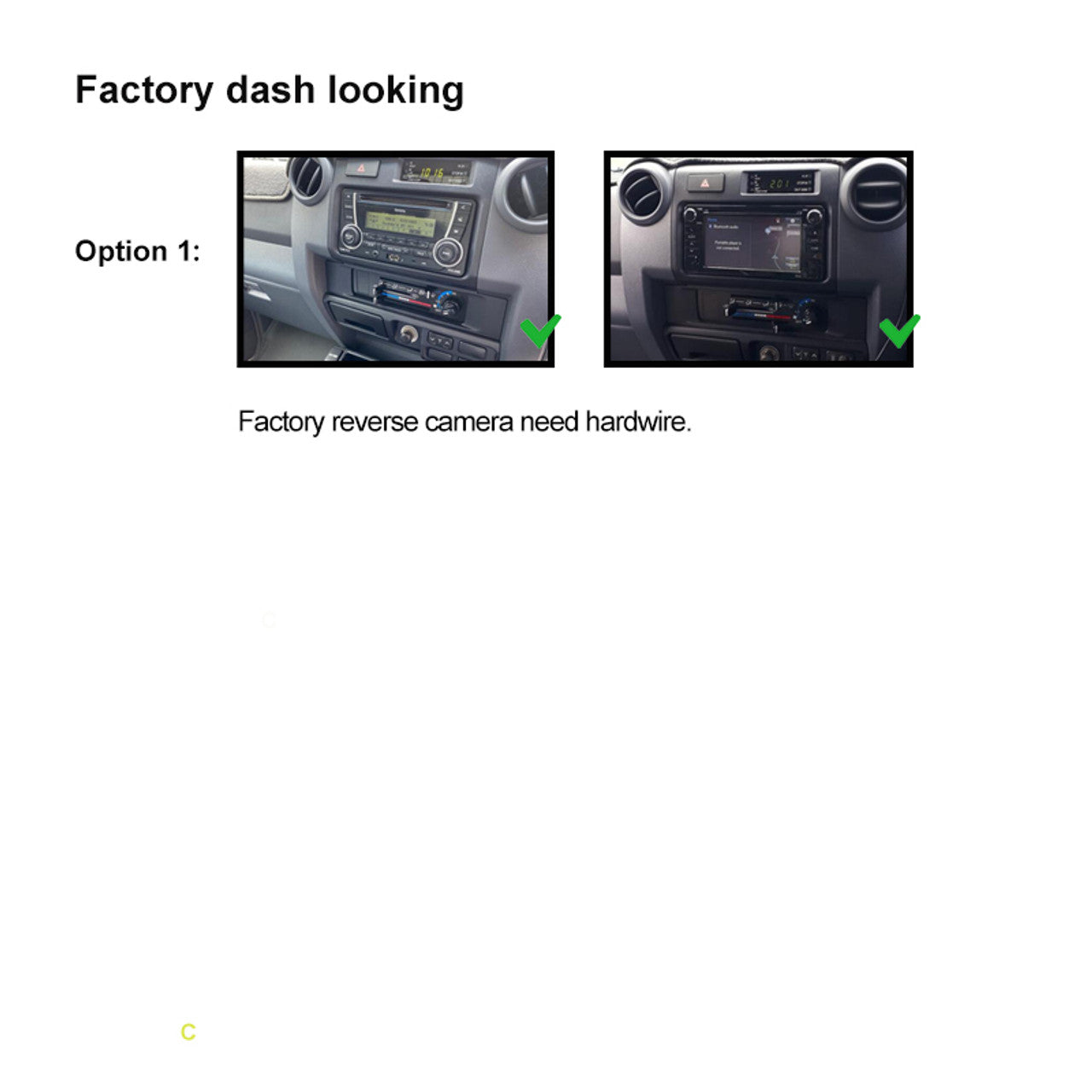

• Factory reverse camera requires hardwiring.
• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure compatibility and receive the correct harness.

Main Features:

Wireless Apple CarPlay

• Enjoy wireless CarPlay for a safer and smarter driving experience. Access your iPhone for directions, calls, messages, and music all through your car’s display. iOS offers additional CarPlay features, including new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto

• Connect your Android device wirelessly to your car’s display. Android Auto brings all your essential apps to the screen for hands-free calling, texting, navigation, and entertainment. Simply plug in and go!

Bluetooth 5.0

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Output

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio sources

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna input (ANT)
• Microphone input (MIC) for hands-free communication

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake input (PARK)
• Amplifier control input (AMP)

Package Contents:

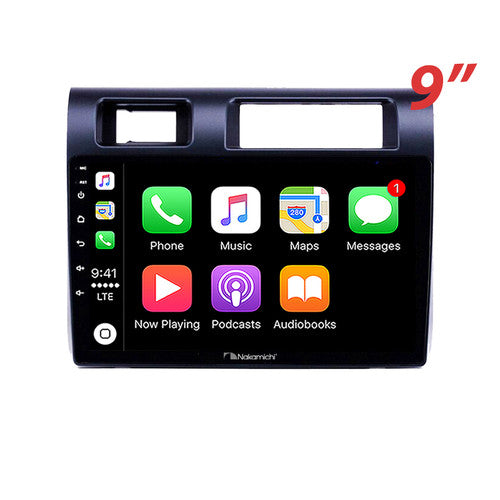

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. This is normal, and the items may not match exactly as listed.

Tech Specs:

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
