Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Prado 2009-2013

Compatibility:

• for Toyota Prado 2009-2013.

Important Notes:

• Compatible with Steering Wheel Controls (SWC).
• Factory button location will shift from right to left, requiring modification for proper fitment.

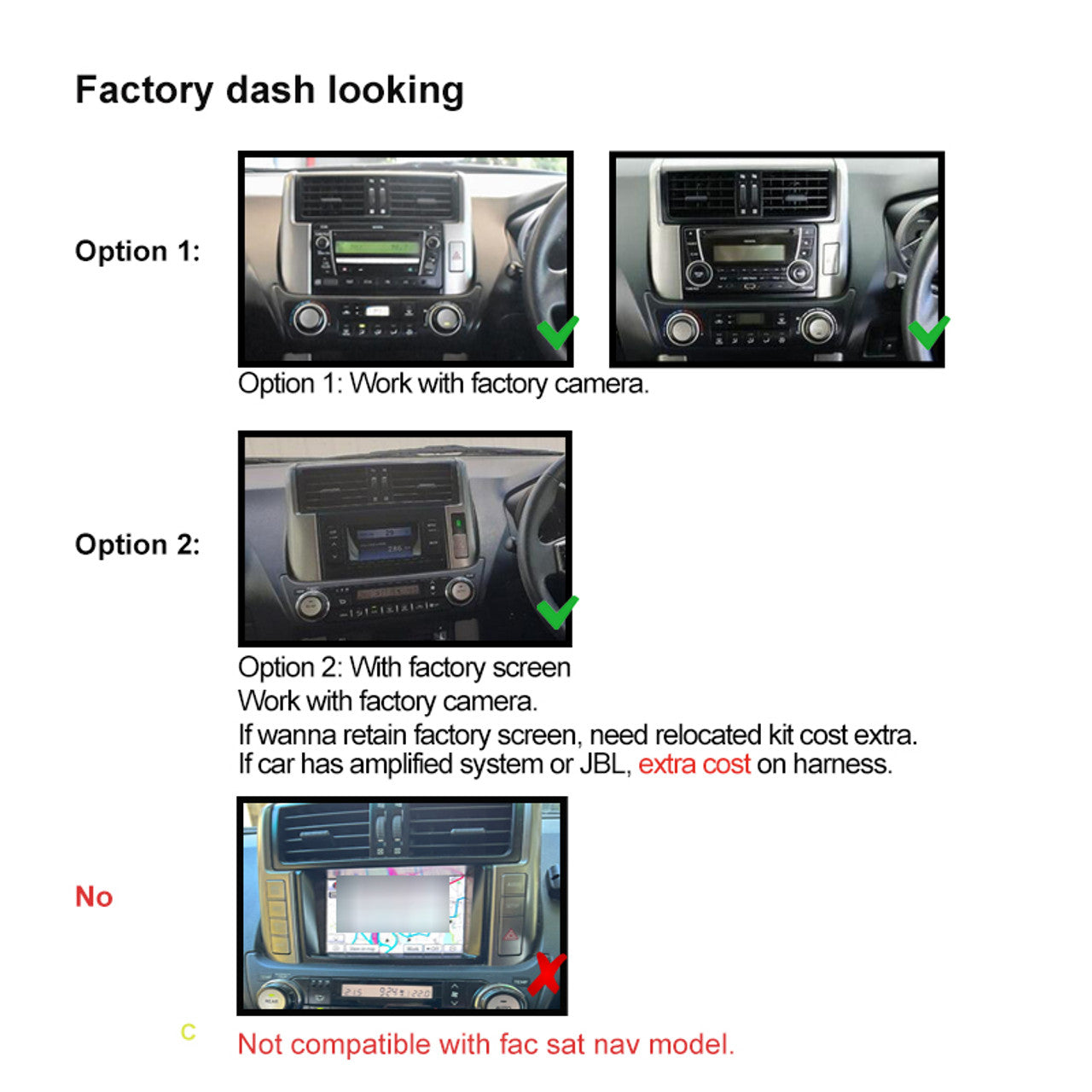

• Option 1: Works with the factory reverse camera.
• Option 2: Works with the factory screen and reverse camera. If you want to retain the factory screen, an additional relocation kit is required (extra cost).
• If the car has an amplified system or JBL, additional harness cost is required.
• Not compatible with the factory satellite navigation model.
• Please send a photo of your car’s dashboard along with the year and model when purchasing to receive the compatible harness.

Main Features:

Wireless Apple CarPlay

• Enjoy CarPlay wirelessly—no cables needed. CarPlay is a smarter and safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy music all on your car’s built-in display. With iOS, CarPlay offers all-new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto

• Pair your Android phone wirelessly with your car’s display. Android Auto helps you stay focused on the road while allowing you to get directions, send texts, make hands-free calls, and more. Simply plug in and go!

Bluetooth 5.0

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Output

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio devices

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna input (ANT)
• Microphone input (MIC) for hands-free communication

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake input (PARK)
• Amplifier control input (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary depending on the car model. This is normal, and the listing may not match exactly for all items.

Tech Specs:

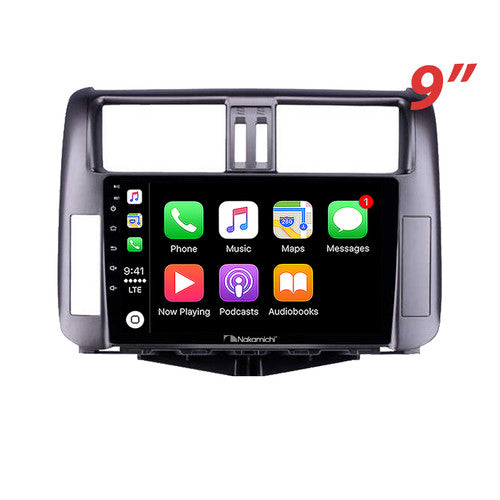

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
