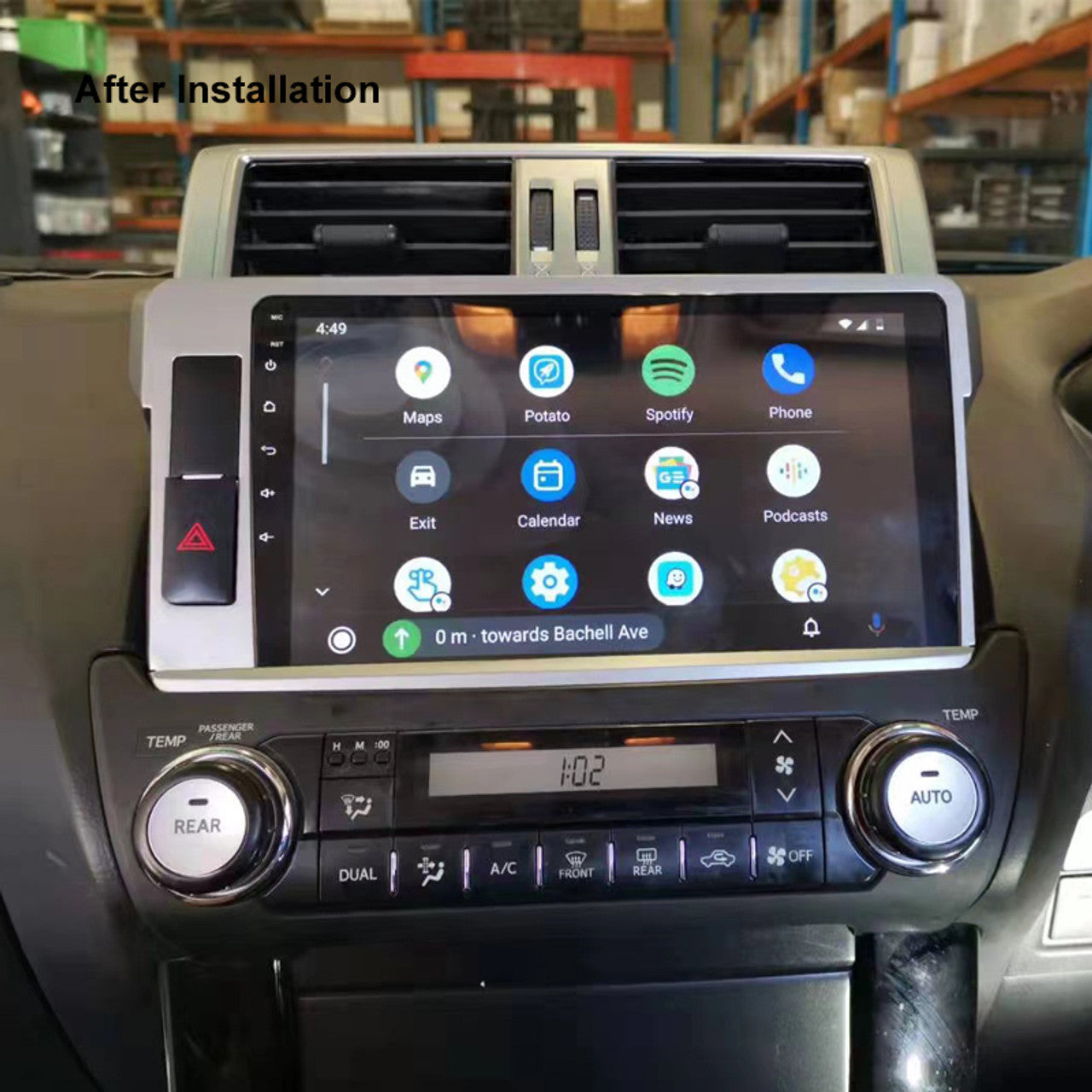

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Prado 2014-2017

Compatibility:

• for Toyota Prado 2014-2017.

Important Notes:

• Compatible with Steering Wheel Controls (SWC).
• Works with the factory reverse camera.
• With the factory JBL system or factory 360° camera, you can adjust the camera view using SWC. The front-facing camera works, but does not offer individual views. The roof DVD player operates separately.
• Extra harness required for factory JBL or 360° camera.
• Please send a photo of your car’s dashboard, along with the year and model, when purchasing to receive the compatible harness.

Main Features:

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy CarPlay wirelessly—no cables required. CarPlay makes using your iPhone while driving smarter and safer. Get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car’s built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto

• Pair your Android phone wirelessly with your car’s display. Android Auto helps you stay connected with driving directions, hands-free calls, and texts. Just plug in and go!

Bluetooth 5.0

• Communication system BT: 5.0 + EDR, operating on a 2.4GHz frequency band with a max range of 5 meters for wireless connectivity.

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM stations, 12 AM stations.

Audio Output

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio devices.

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays.

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna input (ANT)
• Microphone input (MIC) for hands-free communication.

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake input (PARK)
• Amplifier control input (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary for different car models. This is normal, and the listing may not exactly match all items.

Tech Specs:

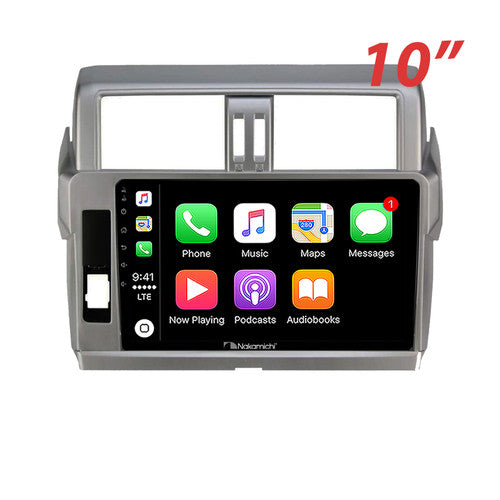

• TFT screen size: 10"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
