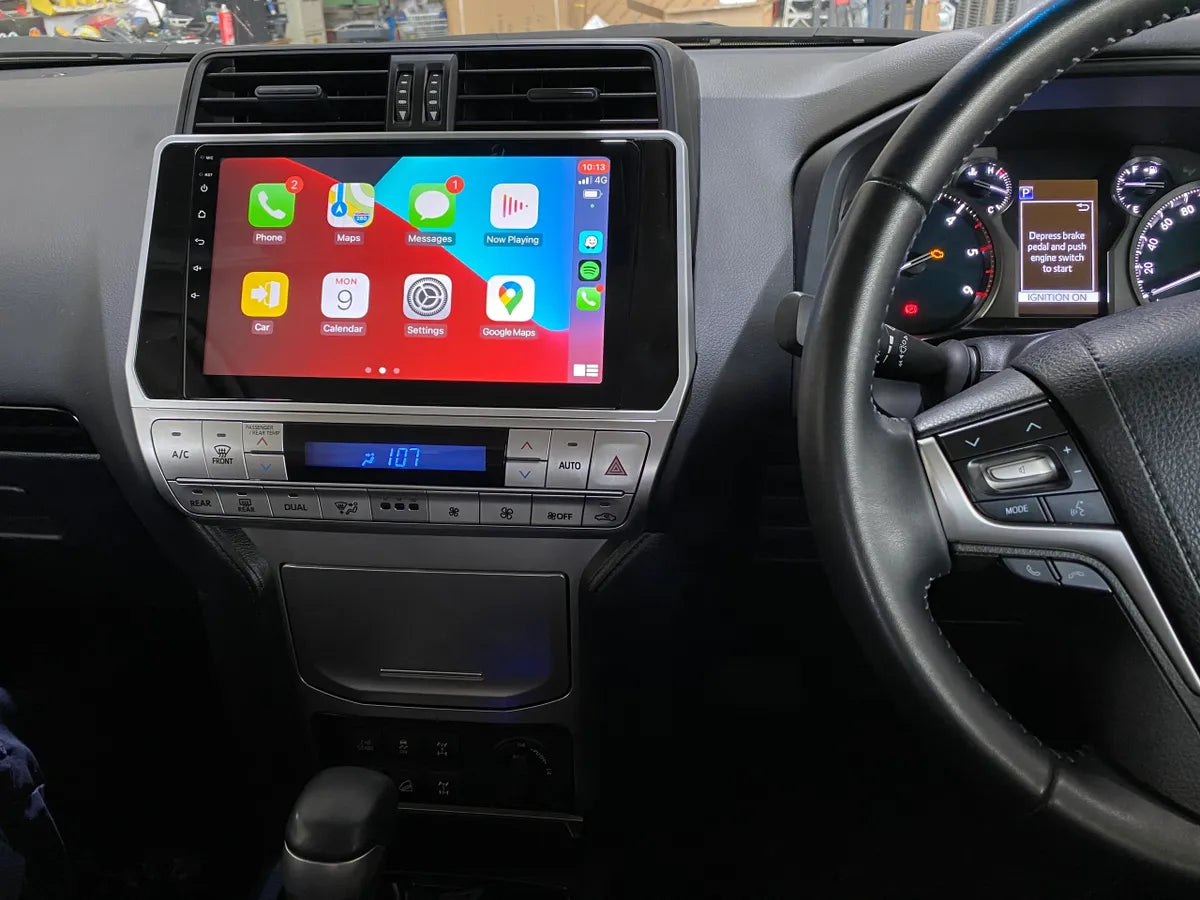

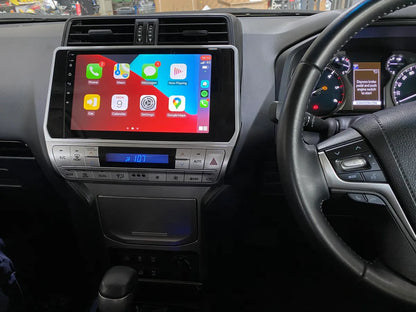

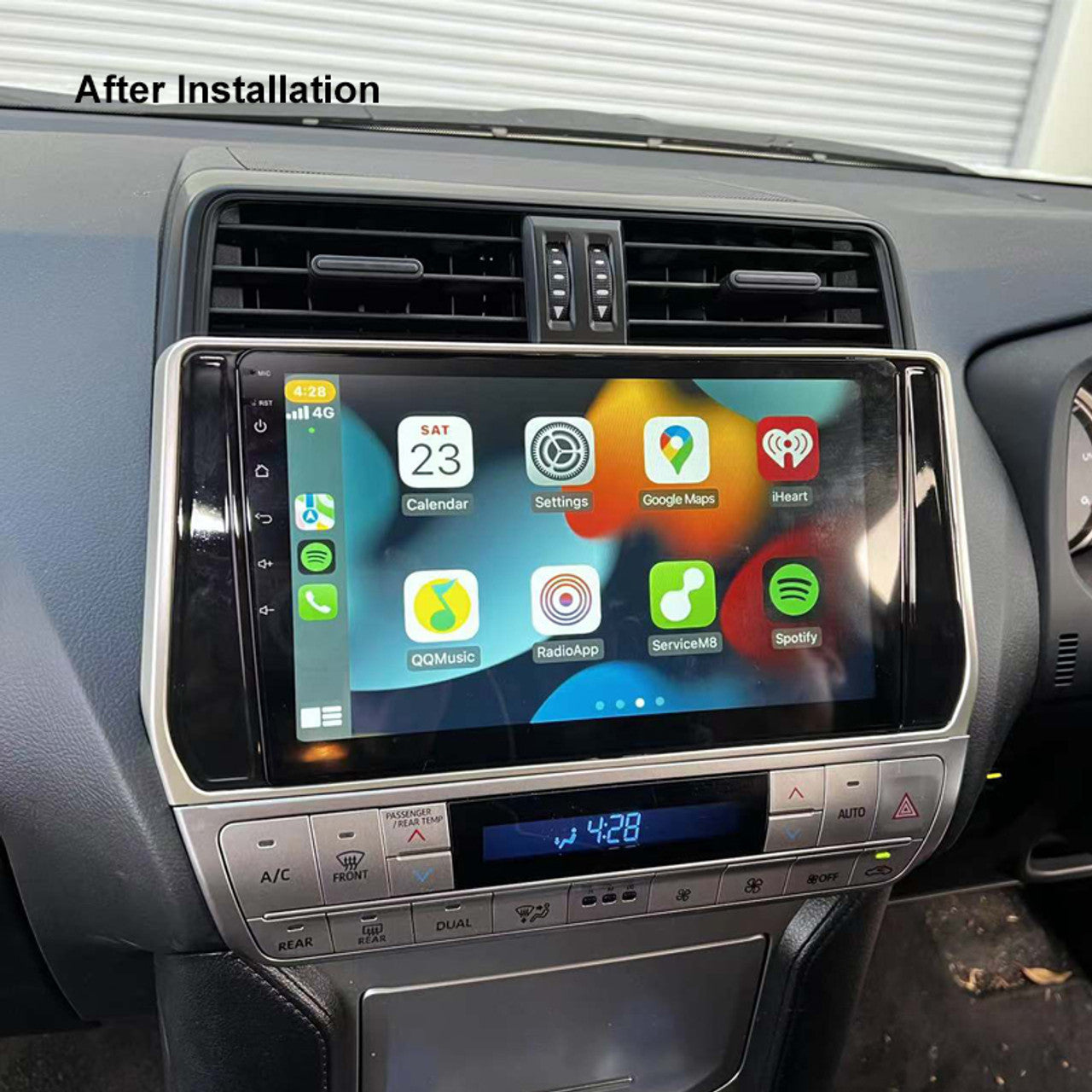

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Prado 2017+

Compatibility:

• for Toyota Prado 2017 and newer.

Important Notes:

• Compatible with Steering Wheel Controls.
• Works with factory reverse camera.
• If the vehicle is equipped with a 360° camera, you must set the camera view before installation. The view cannot be changed post-installation.
• Additional cost for harness if your car has a factory JBL system or 360° camera.

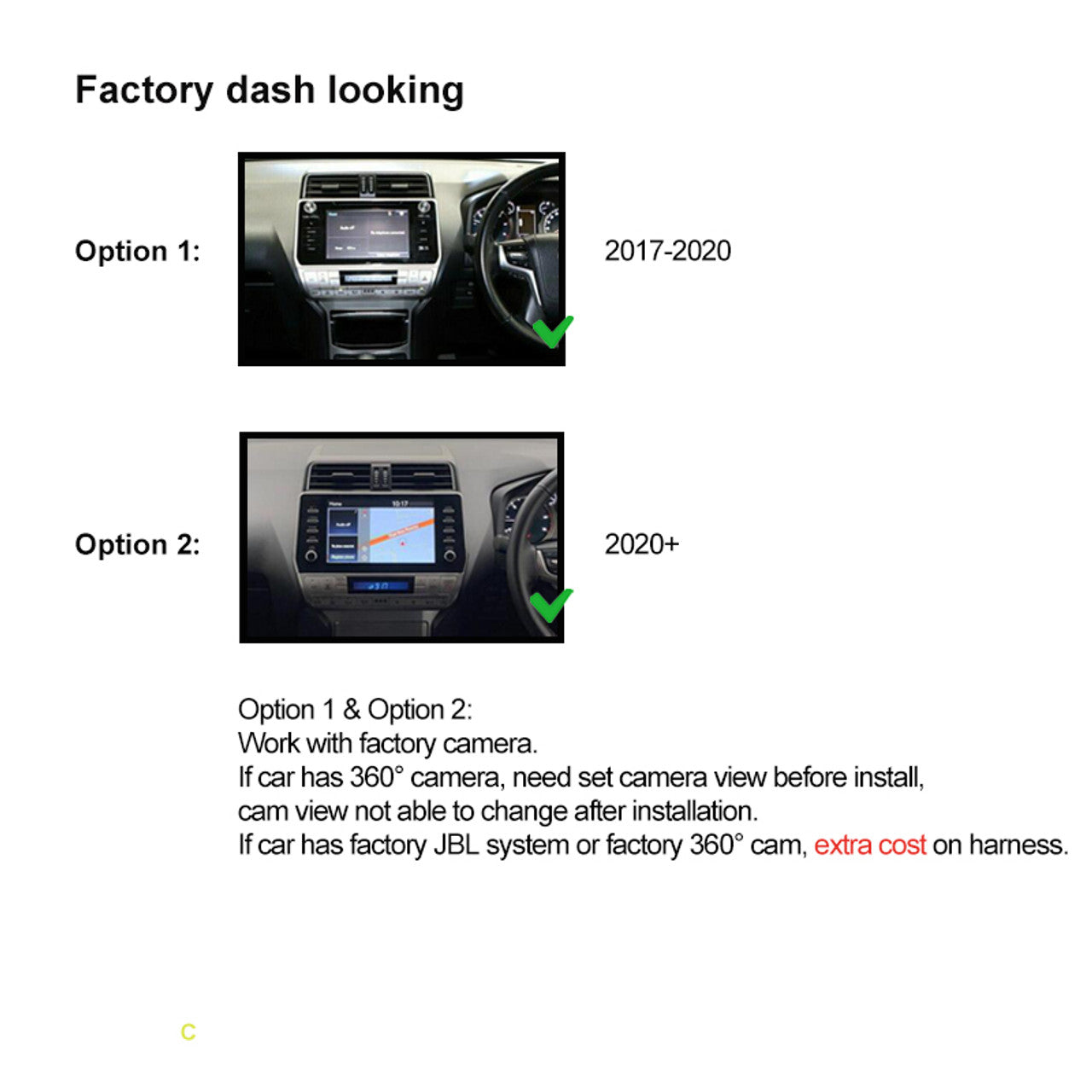

• Option 1: For 2017-2020 models.
• Option 2: For 2020+ models. Option 1 & Option 2 use different harnesses.
• Please send a photo of your car's dashboard along with the car's year and model when purchasing to ensure you receive the compatible harness.

Main Features:

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy CarPlay wirelessly without cables. CarPlay is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send messages, and enjoy your favorite music—all on your car’s built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto

• Pair your Android phone wirelessly with the car’s display. Your Android apps will appear on-screen, and you can tap to get directions, send texts, or make hands-free calls. Android Auto helps you stay focused on the road and have fun along the way. Just plug in and go!

Bluetooth 5.0

• Bluetooth communication system (BT: 5.0 + EDR) with a frequency band of 2.4 GHz and a maximum range of 5 meters for easy hands-free calls and audio streaming.

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM stations, 12 AM stations.

Audio Output

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio devices (located at the back of the unit).

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays.

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna input (ANT)
• Microphone input (MIC) for hands-free communication.

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake input (PARK)
• Amplifier control input (AMP)

Package Contents:

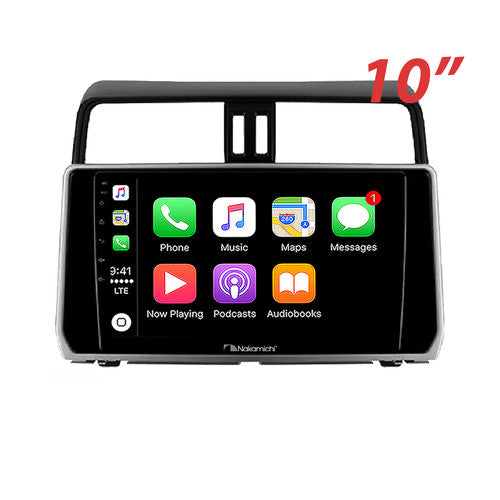

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: The accessory package may vary for different car models. This is normal, and the listing may not exactly match all items.

Tech Specs:

• TFT screen size: 10"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
