Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Prius 2004-2008

Compatibility:

• for Toyota Prius 2004-2008

Important Notes:

• Compatible with steering wheel controls.
• If your car has a factory amplified system, there will be an extra cost for the required harness.
• Please send a photo of your car's dashboard along with the year and model when purchasing, so we can ensure you receive the compatible harness.

Main Features:

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy Apple CarPlay wirelessly without the hassle of cables. CarPlay provides smarter, safer ways to use your iPhone while driving—access directions, make calls, send messages, and enjoy music on your car’s built-in display. With iOS, CarPlay introduces all-new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto

• Pair your phone wirelessly and access your favorite Android apps on your car’s display. Get driving directions, send texts, or make hands-free calls, all while staying focused on the road. Android Auto is designed to help you stay connected safely and enjoy your journey. Just plug in and go!

Bluetooth 5.0

• Bluetooth system (BT: 5.0 + EDR) with a frequency band of 2.4 GHz and a max range of 5m for seamless hands-free calls and media streaming.

Radio

• FM frequency range: 87.5-108.0 MHz
• AM frequency range: 522-1620 kHz
• 18 FM presets and 12 AM presets, so you can easily tune into your favorite stations.

Audio Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R inputs for external audio devices (located at the back of the unit).

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for connecting additional displays.

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB connection for music or video playback
• Radio antenna (ANT)
• Microphone input (MIC) for hands-free communication.

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. It is normal for the listing to not match exactly.

Tech Specs:

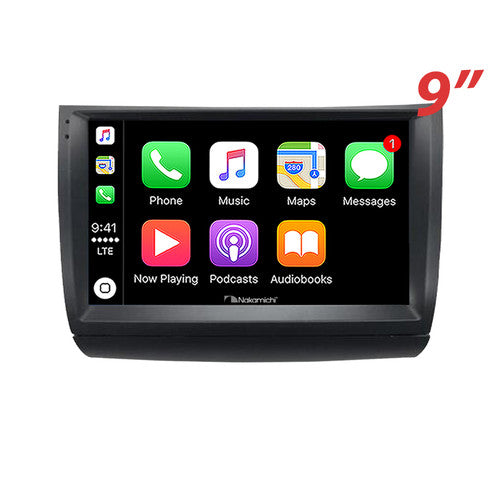

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
