Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Prius 2009-2015

Compatibility:

• for Toyota Prius 2009-2015

Important Notes:

• Compatible with steering wheel controls.
• When installing the new fascia, hot glue is needed.

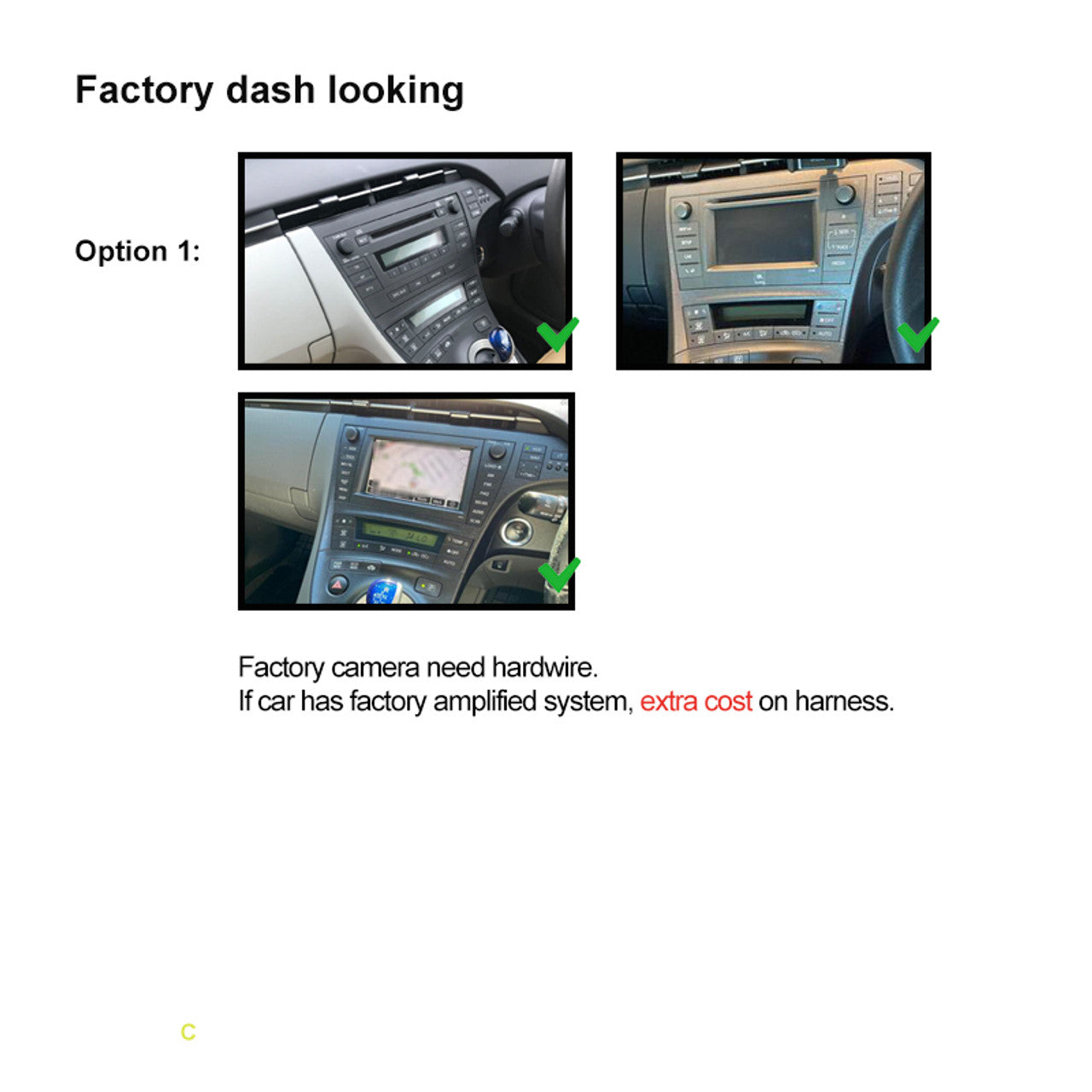

• Factory reverse camera requires hardwiring.
• If your car has a factory amplified system, there will be an extra cost for the required harness.
• Please send a photo of your car's dashboard with the year and model when purchasing, so we can ensure you receive the compatible harness.

Main Features:

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy wireless CarPlay without the clutter of cables. CarPlay provides smarter, safer ways to use your iPhone while driving—access directions, make calls, send messages, and enjoy music, all through your car's built-in display. Plus, with iOS, CarPlay features new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto

• Pair your phone wirelessly, and your Android apps will appear on the car’s display. Get directions, send a text, or make calls hands-free, all while keeping your focus on the road. Android Auto helps make your drive safer and more enjoyable. Simply plug in and go!

Bluetooth 5.0

• Bluetooth communication system (BT: 5.0 + EDR), frequency band of 2.4 GHz, with a max range of 5m for seamless connectivity and hands-free communication.

Radio

• FM frequency range: 87.5-108.0 MHz
• AM frequency range: 522-1620 kHz
• 18 FM presets and 12 AM presets for easy access to your favorite stations.

Audio Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R for audio input (located at the back of the unit).

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays or features.

USB Interface & Other Inputs

• USB for CarPlay/Android Auto connection (CP/AA)
• USB connection for music/video playback
• Radio antenna (ANT)
• Microphone input (MIC)

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. It is normal for the listing not to match exactly.

Tech Specs:

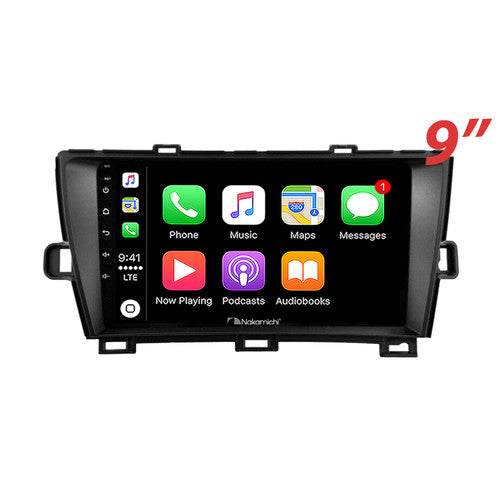

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
