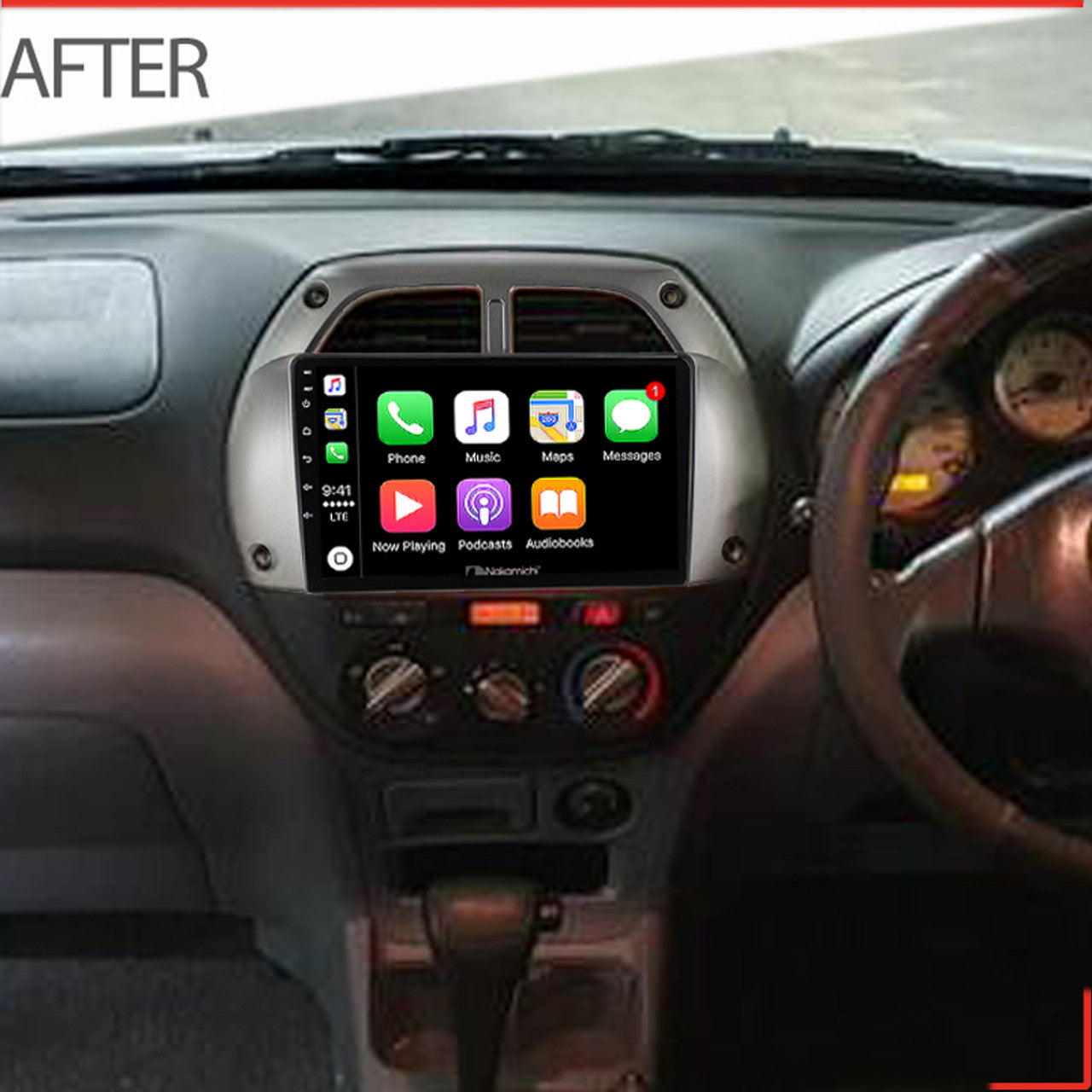

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota RAV4 2001-2005

Compatibility:

• for Toyota RAV4 2001-2005

Important Notes:

• Compatible with steering wheel controls.

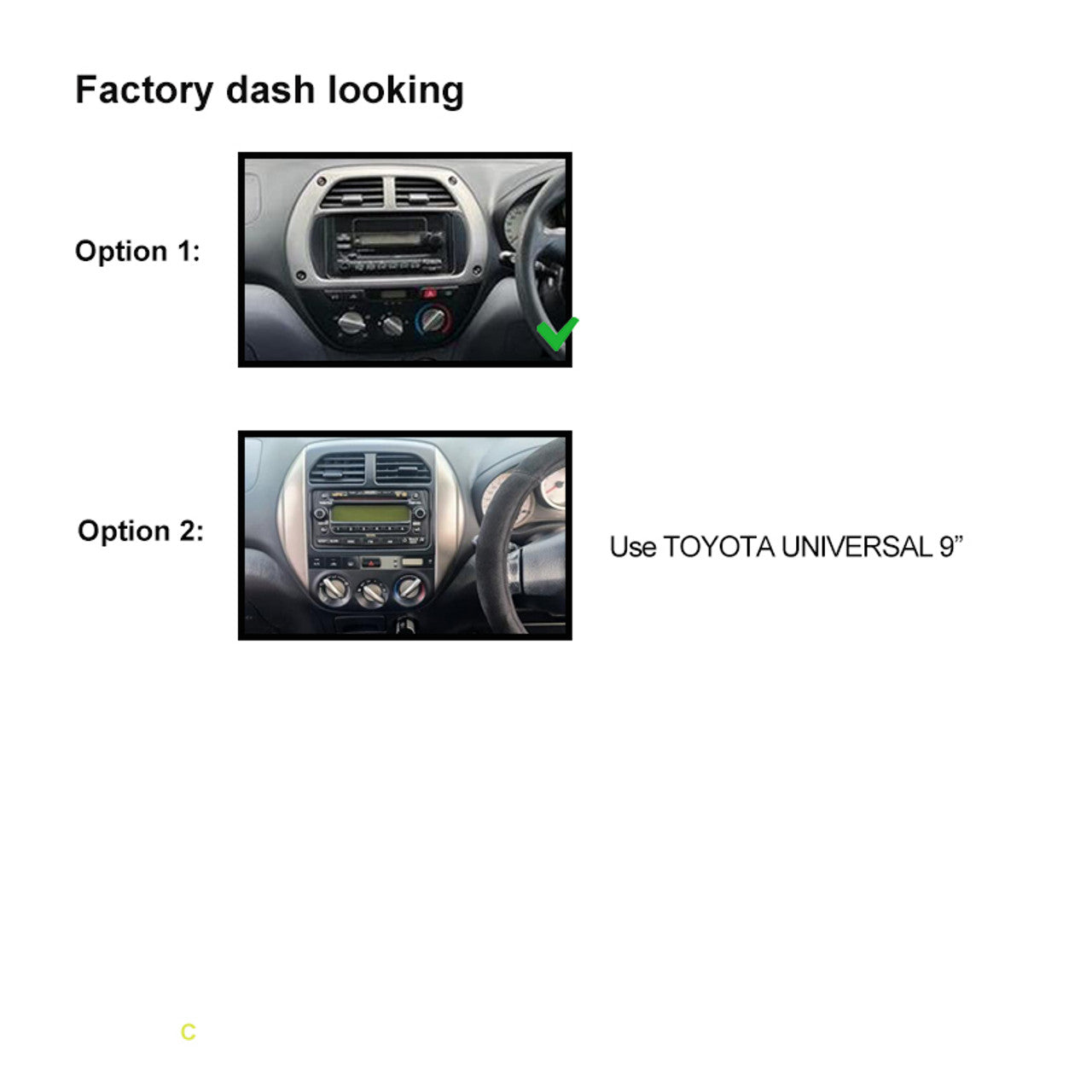

• Option 1: Use this model for your RAV4 2001-2005.
• Option 2: Use Toyota Universal 9" model.
• Please send a photo of your car's dashboard, along with the year and model, when purchasing to ensure we send the compatible harness.

Main Features:

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy CarPlay without cables. CarPlay allows you to safely and easily use your iPhone while driving. Access navigation, make calls, send and receive messages, and enjoy music—all displayed on your car’s built-in screen. With iOS, CarPlay features new app categories and custom wallpapers for your dashboard.

Wireless Android Auto

• Wireless Android Auto for a seamless connection (wired for some specific phone brands). Connect your Android phone to your car’s display, and your apps will appear on the screen. Get directions, send a text, or make calls hands-free—helping you stay focused on the road. Simply plug in and go!

Bluetooth 5.0

• Bluetooth communication system, frequency band of 2.4GHz, and a max range of 5m—perfect for hands-free calls and music streaming.

Radio

• FM frequency range: 87.5-108.0 MHz
• AM frequency range: 522-1620 kHz
• 18 FM presets and 12 AM presets for your convenience.

Audio Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R for audio input (located at the back of the unit).

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional screens or features.

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB for music/video playback
• Radio antenna (ANT)
• Microphone input (MIC)

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

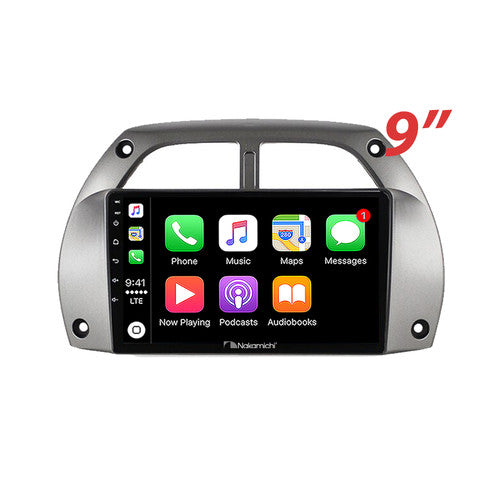

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. It is normal for the listing not to match exactly.

Tech Specs:

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
