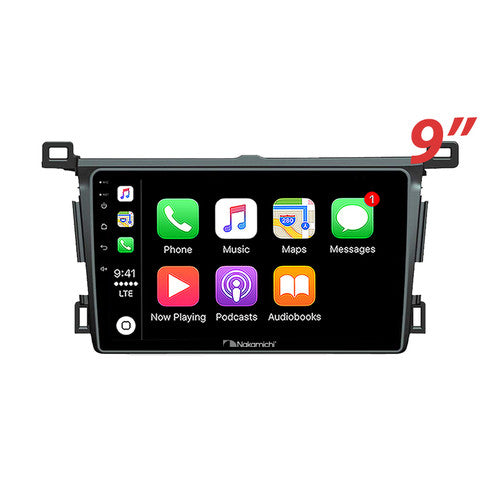

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota RAV4 2013-2018

Compatibility:

• for Toyota RAV4 2013-2018

Important Notes:

• Compatible with steering wheel controls.

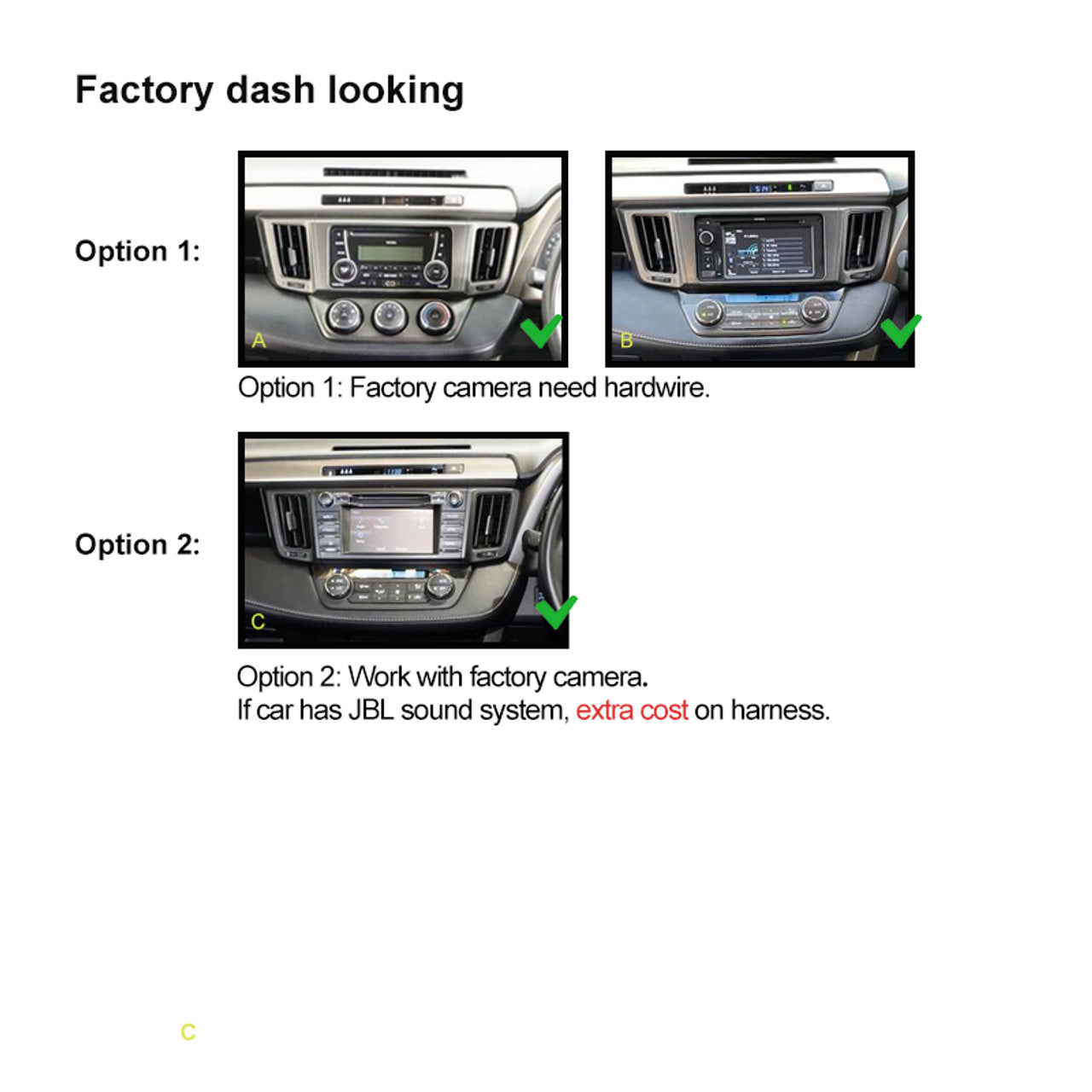

• Option 1: Factory camera requires hardwiring.
• Option 2: Works with factory reverse camera.
• If the car has a factory JBL system, an additional cost will be required for the specific harness.
• Please send a photo of your car's dashboard, along with the year and model, when purchasing to ensure we send the compatible harness.

Main Features:

Wireless Apple CarPlay

• The ultimate co-pilot for your drive. Enjoy CarPlay without any cables. CarPlay allows you to get directions, make calls, send messages, and enjoy music, all on your car’s built-in display. With iOS updates, CarPlay offers new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto

• Enjoy Android Auto wirelessly (wired for some specific phone brands). Pair your phone to your car’s display to access apps, driving directions, hands-free texting, and calling. Android Auto keeps you focused on the road while offering seamless connectivity. Just plug in and go!

Bluetooth 5.0

• Bluetooth communication system with a 2.4GHz frequency band and a range of up to 5 meters. Ideal for hands-free calling and music streaming.

Radio

• FM frequency range: 87.5-108.0 MHz
• AM frequency range: 522-1620 kHz
• 18 FM presets and 12 AM presets for easy station tuning.

Audio Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R for audio input.

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional displays or features.

USB Interface & Other Inputs

• USB connection for CarPlay / Android Auto (CP/AA)
• USB for music/video playback
• Radio antenna (ANT)
• Microphone input (MIC)

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. If there are differences, it is normal for the listing not to match exactly.

Tech Specs:

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
