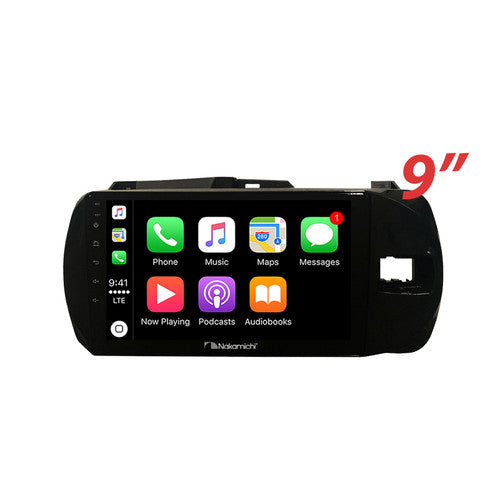

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Toyota Yaris 2014-2019

Compatibility:

• for Toyota Yaris 2014-2019

Important Notes:

• Compatible with steering wheel controls.
• Factory camera may require hardwiring.
• Option 2 with factory round hazard switch requires exchange and additional cost for a new hazard switch.
• Please send a photo of your car's dashboard with the year and model when purchasing to ensure compatibility and receive the correct harness.

Main Features:

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy CarPlay without the need for cables. CarPlay is a smarter, safer way to use your iPhone while driving. Access directions, make calls, send and receive messages, and enjoy your favorite music, all on your car’s built-in display. With iOS updates, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto

• Pair your Android phone wirelessly to the car’s display. Access apps, get driving directions, send hands-free messages, and make calls. Android Auto helps you stay focused on the road while enjoying your favorite apps, all without the hassle of cables.

Bluetooth 5.0

• Bluetooth communication system with a 2.4GHz frequency band and a maximum range of 5 meters, allowing for hands-free calling and music streaming.

Radio

• FM frequency range: 87.5-108.0 MHz
• AM frequency range: 522-1620 kHz
• 18 FM presets and 12 AM presets for easy tuning.

Audio Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R for additional audio input.

Video Inputs & Outputs

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video outputs (V-OUT1 & V-OUT2) for additional display options.

USB Interface & Other Inputs

• USB connection for CarPlay/Android Auto (CP/AA)
• USB for music/video playback
• Radio antenna (ANT)
• Microphone input (MIC)

RCA Cable Outputs

• Front Left Speaker Output (FL_OUT)
• Front Right Speaker Output (FR_OUT)
• Rear Left Speaker Output (RL_OUT)
• Rear Right Speaker Output (RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. If there are differences, it is normal for the listing not to match exactly.

Tech Specs:

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging and file reading: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
