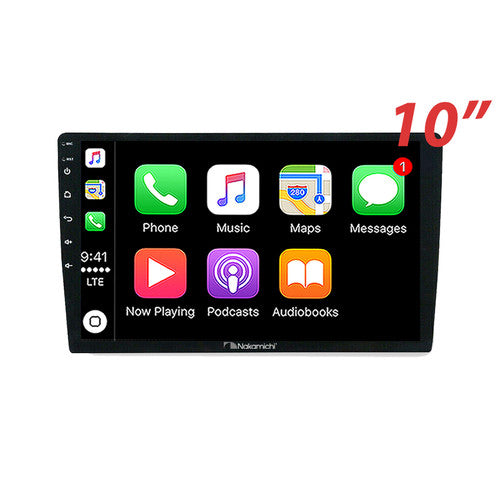

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Volkswagen Vehicles

Compatible Models:

• Volkswagen Amarok 2011+
• Volkswagen Beetle 2012-2015
• Volkswagen Caddy 2005-2015
• Volkswagen Caravelle 2010-2015
• Volkswagen CC 2012-2015
• Volkswagen EOS 2007-2014
• Volkswagen Golf 2004-2013
• Volkswagen Jetta 2005-2015
• Volkswagen Multivan 2010-2016
• Volkswagen Passat 2006-2015
• Volkswagen Polo 2010-2014
• Volkswagen Tiguan 2008-2015
• Volkswagen Transporter 2010-2016

Important Notice:

• Compatible with Steering Wheel Controls.
• Factory camera needs professional installation or requires an additional camera adapter.

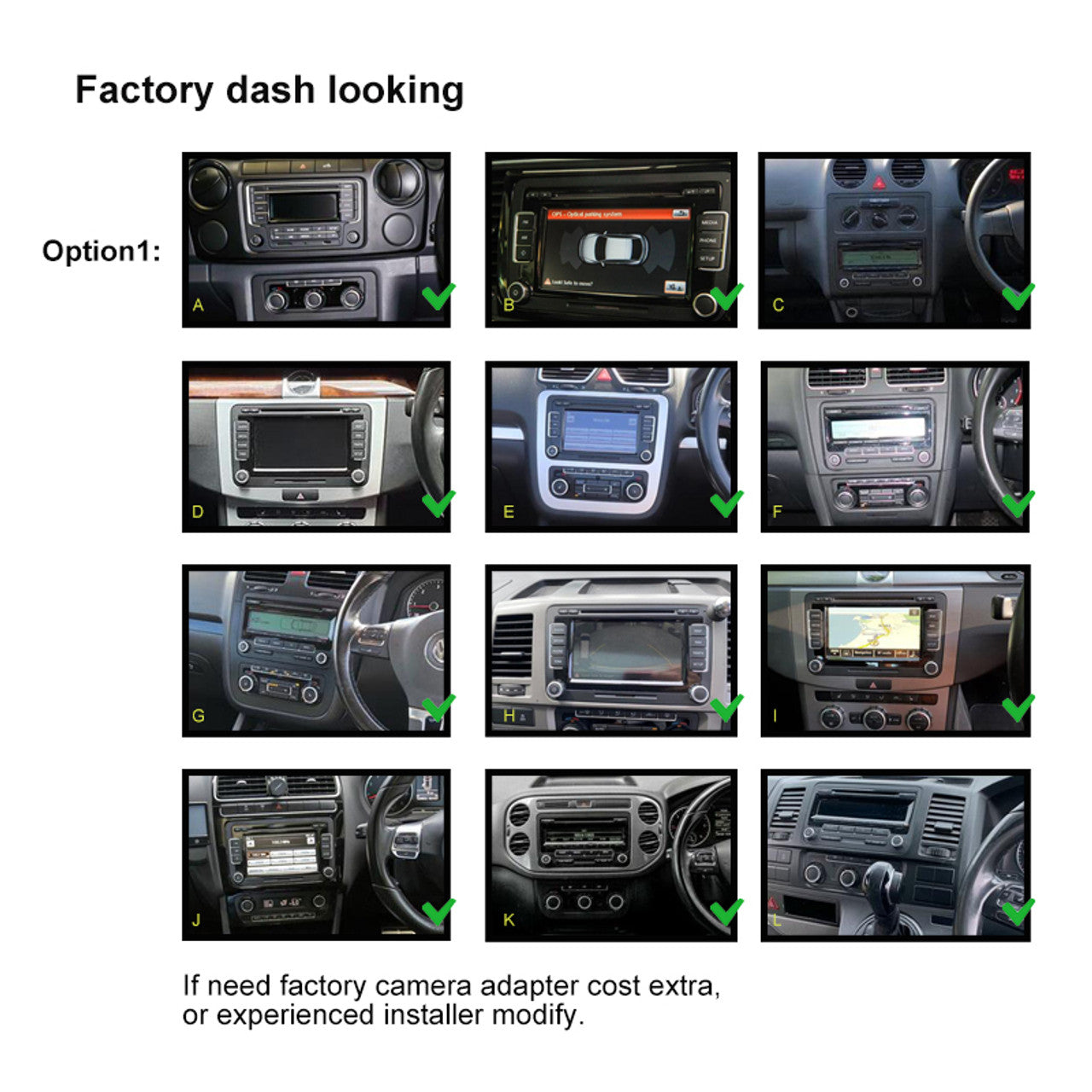

• Please send a photo of your dashboard with the car’s year and model when purchasing so we can provide the correct harness.

Key Features:

Wireless Apple CarPlay:
CarPlay is the ultimate co-pilot, offering a smarter and safer way to use your iPhone while driving. Access maps, calls, messages, and music on your car’s display without cables. With iOS updates, enjoy new app categories and customized wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some phone brands):
Easily pair your Android phone to the car’s display to access your apps, get directions, send hands-free texts, and make calls. Android Auto helps you stay focused on the road while making your journey enjoyable.

Bluetooth:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• Presets: 18 FM, 12 AM stations

Audio Features:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left (L) and Right (R) audio inputs

Video Inputs/Outputs:

• Reverse Camera Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output Options: V-OUT1, V-OUT2

USB Interface:

• 4-pin USB for CarPlay / Android Auto
• 6-pin USB for music and video playback

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• Canbus Box Interface for vehicle integration
• Parking Brake Input
• Amplifier Control (AMP)

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessories may vary depending on vehicle model.)

General Specifications:

• 10” TFT Display with 1240×600 resolution
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5V–16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
