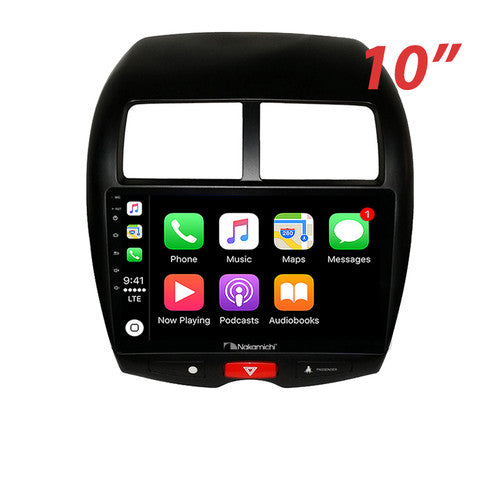

Nakamichi Wireless Apple CarPlay & Android Auto System for Peugeot 4008 (2012+)

Compatibility:

• for Peugeot 4008 (2012+)

Important Notice:

• Fully compatible with steering wheel controls
• Integrates with your factory reverse camera
• Please provide a photo of your dashboard along with your vehicle's year and model at the time of purchase to ensure we send you the correct harness.

Key Features:
Wireless Apple CarPlay:
Enjoy the ultimate driving companion with Apple CarPlay, wirelessly. It enables hands-free calling, message management, navigation, and access to your music and apps directly on your car’s display, enhancing safety and convenience on the road.

Wireless Android Auto (Wired for some devices):
Wireless Android Auto helps you keep your focus on the road while accessing your favorite apps. Make hands-free calls, get directions, and send texts, all on your car's display with no cables needed.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX inputs (Left & Right) for additional audio devices

Video Connectivity:

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB Connections:

• USB for CarPlay/Android Auto
• Additional USB for Music/Video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front/Rear Speaker Outputs
• Subwoofer Output
• Additional outputs for Canbus, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Audio/Video Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: Accessory kits may vary based on vehicle model.

General Specifications:

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
