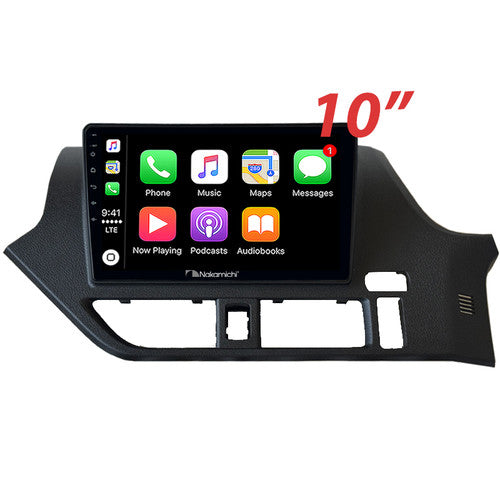

Nakamichi Wireless Apple CarPlay & Android Auto System for Toyota Noah Voxy (2014-2021)

Compatibility:

• for Toyota Noah Voxy (2014-2021).

Important Notes

• Steering wheel control compatibility.
• Factory reverse camera requires hardwiring.
• For compatibility, please send a photo of your car's dashboard, along with the year and model, when purchasing.

Key Features

Wireless Apple CarPlay
Enjoy a cable-free CarPlay experience! Connect your iPhone to your car’s display to get directions, make calls, send and receive messages, and play your favorite music all hands-free. With iOS, CarPlay now offers new app categories and customizable wallpapers for an even more personalized experience.

Wireless Android Auto (Wired for some devices)
Effortlessly pair your Android phone to your car’s display, giving you access to navigation, messaging, and more—without the need for wires. Android Auto helps you stay focused on the road while still enjoying your apps, music, and calls.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency: 2.4GHz
• Maximum range: 5m

Radio

• FM range: 87.5-108.0 MHz
• AM range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications

• Max power output: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX input (rear): Left & Right

Video Inputs and Outputs

• Reverse camera input
• Extra video input (V-IN)
• Video output 1 & 2 (V-OUT)

USB Connections

• USB for CarPlay/Android Auto
• USB for music or video playback

Additional Inputs

• Antenna (radio input)
• Microphone input

RCA Cables

• Front Left/Right speaker outputs
• Rear Left/Right speaker outputs
• Subwoofer output
• Canbus connector
• Parking brake & amplifier control

Package Includes

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  (Note: Accessories may vary depending on the car model.)

General Specifications

• Screen size: 10" TFT
• Resolution: 1240x600
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB output: 5V/1A
• Supported video formats: H264/MP4/AVI/MKV/FLV
• Supported audio formats: MP3/APE/AAC/FLAC
