Nakamichi Wireless CarPlay & Android Auto Solution for Toyota Corolla 2015-2018 Hatch

Compatibility:

• For Toyota Corolla 2015-2018 Hatch

Important:

• Fully compatible with steering wheel controls.
• Works with factory reverse camera.

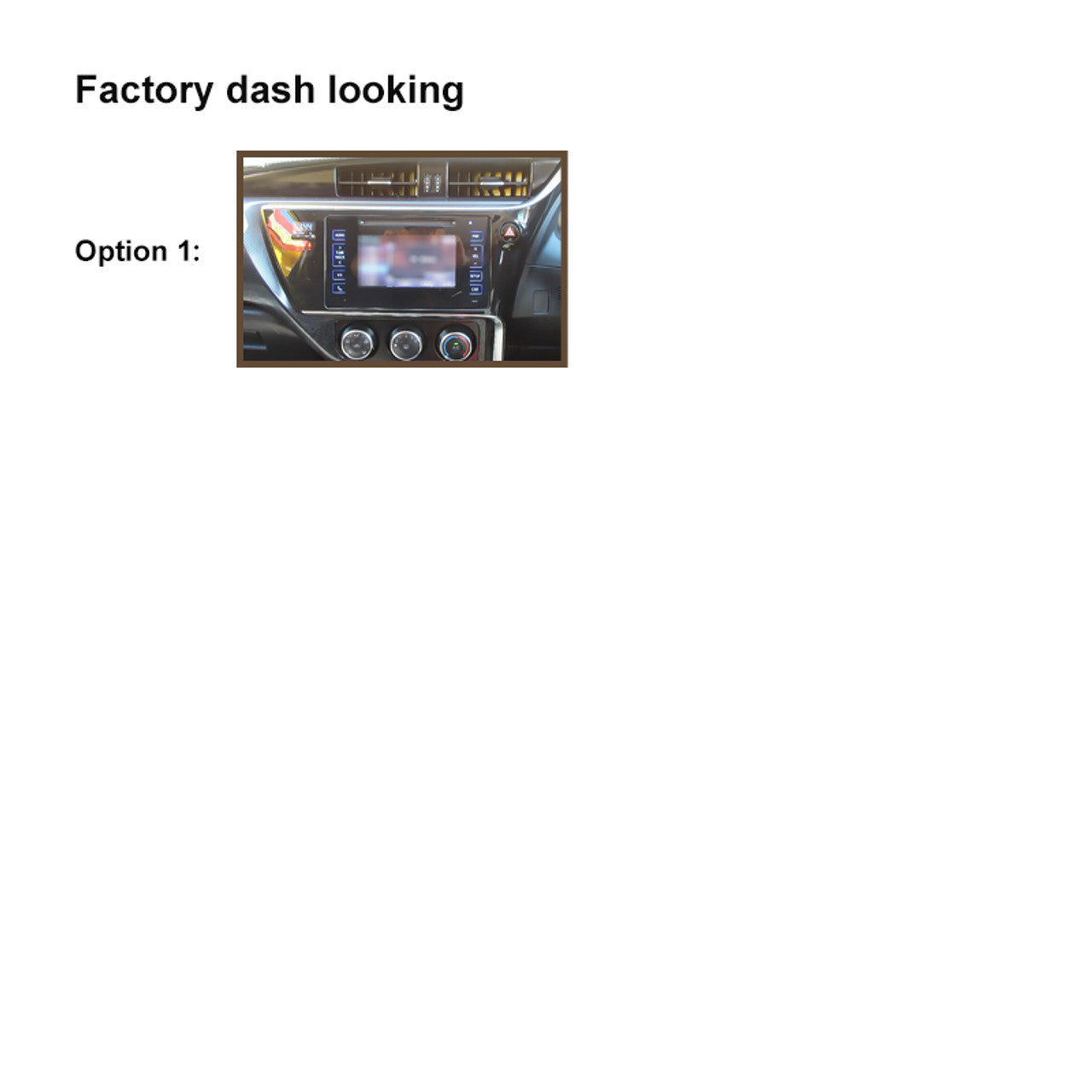

• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide the correct harness.

Key Features:

Wireless Apple CarPlay
Experience the ultimate co-pilot with Wireless Apple CarPlay. Drive smarter and safer by connecting your iPhone without the need for cables. Get navigation, make hands-free calls, send and receive messages, and enjoy your favorite music, all on your car's display. iOS integration also brings fresh app categories and personalized wallpapers for your CarPlay dashboard.

Wireless Android Auto
Go wireless and connect your Android phone for instant access to your apps, navigation, text messages, and calls. Android Auto keeps you focused on the road, allowing you to safely interact with your phone through voice commands and the car’s touchscreen.

Bluetooth 5.0 Connectivity
Stay connected effortlessly with Bluetooth 5.0.

• Frequency band: 2.4GHz
• Max range: 5 meters

Radio Options:

• FM: 87.5-108.0 MHz
• AM: 522-1620 kHz
• 18 FM presets, 12 AM presets

Audio Performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs: Left and right (rear)

Video Capabilities:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Dual video outputs (V-OUT1, V-OUT2)

USB Connections:

• CarPlay/Android Auto USB (rear connection)
• USB for music or video playback (rear connection)

Additional Rear Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Outputs:

• Front/rear left/right speaker outputs
• Subwoofer output
• Amplifier control (AMP)
• Parking brake input (PARK)
• Canbus connector (UART_RX/UART_TX)

Package Includes:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Accessories may vary depending on your vehicle model. It is normal for them to differ from the listed contents.

Technical Specifications:

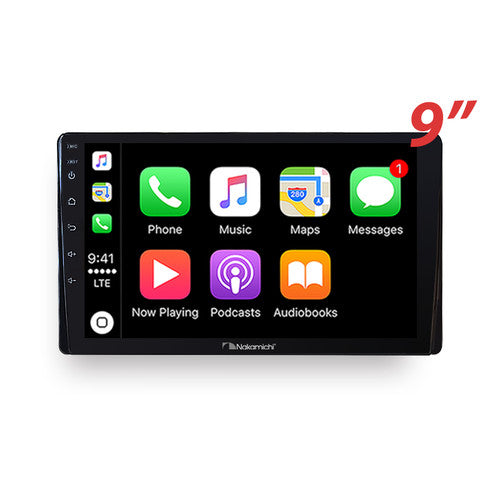

• Display size: 9" TFT
• Resolution: 1240 x 600
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging/reading: 5±0.25V/1A
• Supported video formats: H264/MP4/AVI/MKV/FLV
• Supported audio formats: MP3/APE/AAC/FLAC
