Nakamichi Wireless CarPlay & Android Auto Solution for Toyota Landcruiser UTE 2024+ LC70 LC79 Series

Compatibility:

• For Toyota Landcruiser UTE 2024+ LC70 LC79 Series

Important:

• Fully compatible with steering wheel controls.

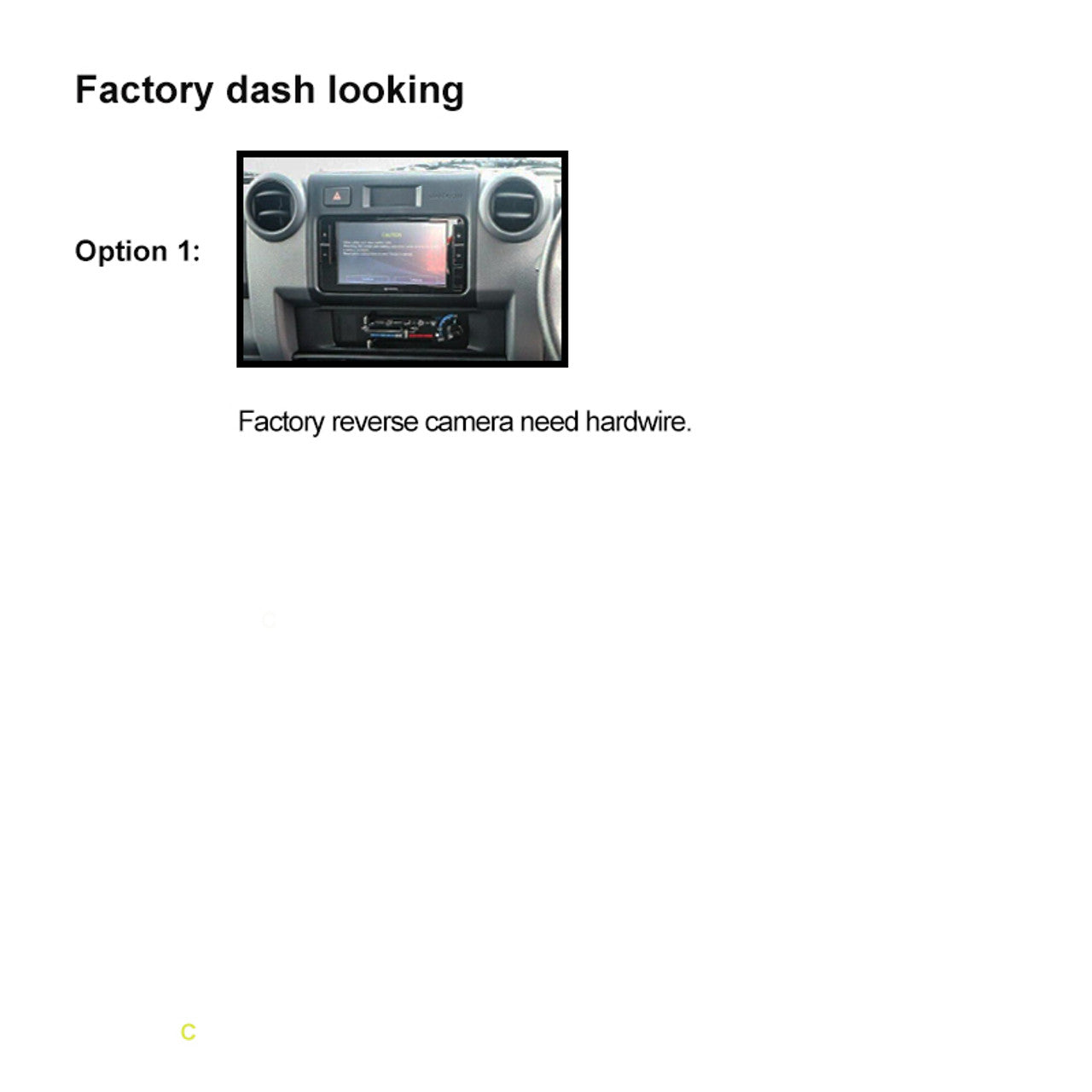

• Factory reverse camera requires hardwiring.
• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide the correct harness.

Key Features:

Wireless Apple CarPlay
The ultimate co-pilot—enjoy Apple CarPlay wirelessly. Drive smarter and safer by connecting your iPhone without cables. Access directions, make calls, send and receive messages, and enjoy your favorite music, all from your car’s display. CarPlay also brings new app categories and custom wallpapers to your dashboard for a personalized experience.

Wireless Android Auto
Cut the cords and pair your Android device wirelessly. Instantly access your apps, get directions, send texts hands-free, or make calls—all on your car’s display. Android Auto makes it easier to stay focused on the road while enjoying entertainment along the way.

Bluetooth 5.0 Connectivity
Enjoy smooth wireless communication with Bluetooth 5.0.

• Frequency band: 2.4GHz
• Max range: 5 meters

Radio Options:

• FM: 87.5-108.0 MHz
• AM: 522-1620 kHz
• 18 FM presets, 12 AM presets

Audio Performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs: Left and right (rear)

Video Capabilities:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Dual video outputs (V-OUT1, V-OUT2)

USB Connections:

• CarPlay/Android Auto USB (rear connection)
• USB for music or video playback (rear connection)

Additional Rear Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Outputs:

• Front/rear left/right speaker outputs
• Subwoofer output
• Amplifier control (AMP)
• Parking brake input (PARK)
• Canbus connector (UART_RX/UART_TX)

Package Includes:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Accessories may vary depending on your vehicle model. It is normal for them to differ from the listed contents.

Technical Specifications:

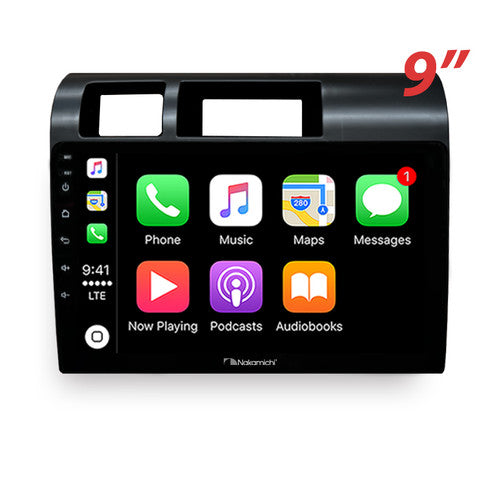

• Display size: 9" TFT
• Resolution: 1240 x 600
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging/reading: 5±0.25V/1A
• Supported video formats: H264/MP4/AVI/MKV/FLV
• Supported audio formats: MP3/APE/AAC/FLAC
