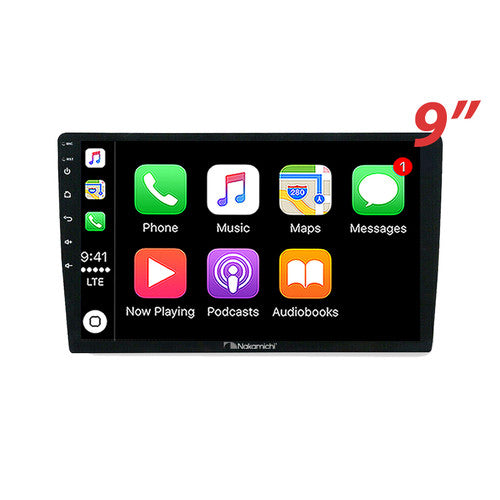

Nakamichi Wireless CarPlay & Android Auto Upgrade for Toyota 86 (2012+)

Compatibility:

• For Toyota 86 (2012 and newer)

Important:

• Fully compatible with steering wheel controls.

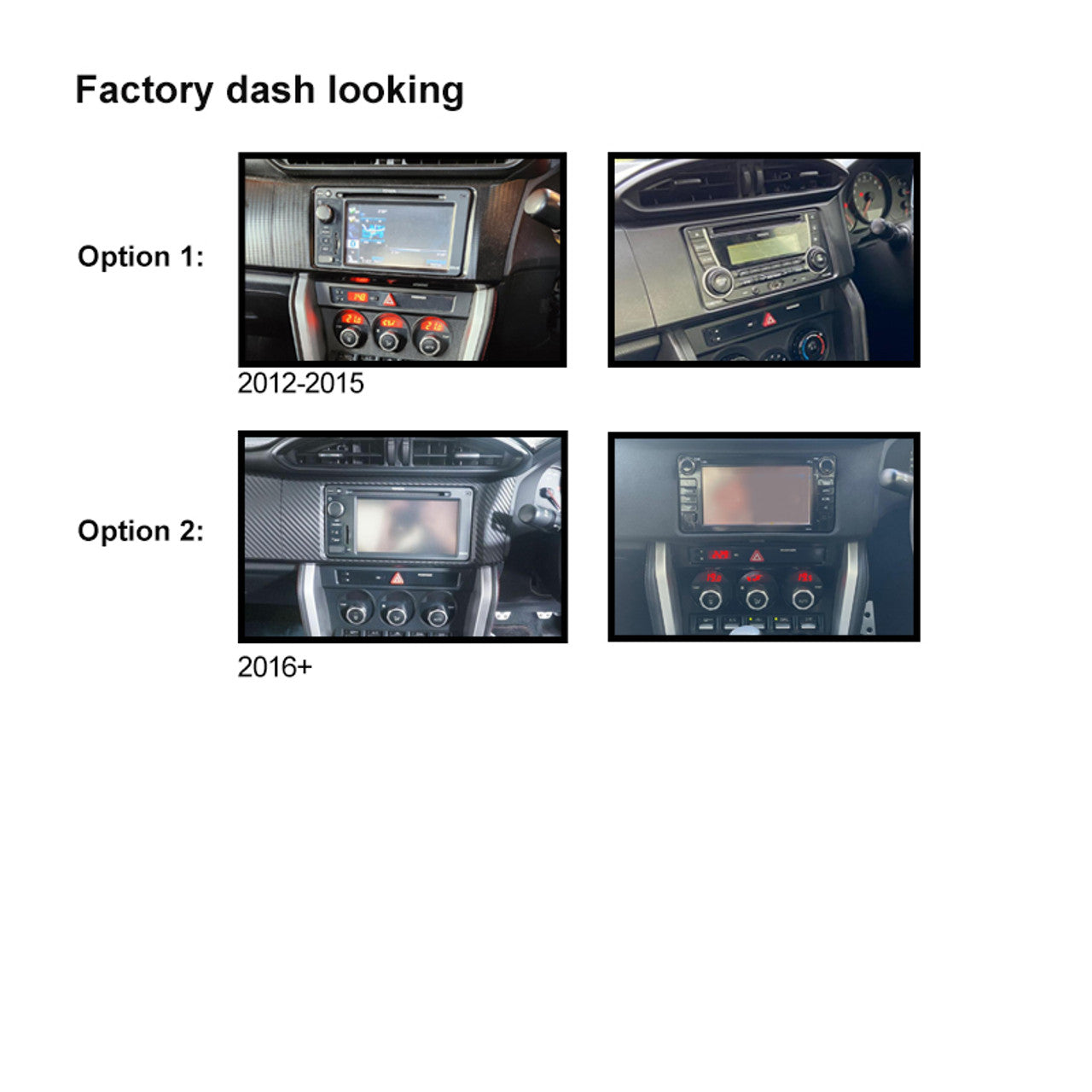

• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide the appropriate harness.

Key Features:

Wireless Apple CarPlay
Transform your driving experience with wireless Apple CarPlay. Seamlessly connect your iPhone to enjoy hands-free navigation, calls, messages, and music—all on your car's display. With iOS integration, CarPlay brings fresh app categories and customizable wallpapers to your dashboard.

Wireless Android Auto
No cables, no hassle. Wirelessly pair your Android device with your car’s display to access your apps, get directions, send hands-free texts, or make calls. Android Auto keeps you focused on the road while offering entertainment along the way.

Bluetooth 5.0 Connectivity
Stay connected with Bluetooth 5.0 for smooth, wireless communication.

• Frequency band: 2.4GHz
• Max range: 5 meters

Radio Options:

• FM: 87.5-108.0 MHz
• AM: 522-1620 kHz
• 18 FM presets, 12 AM presets

Audio Performance:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs: Left and right (rear)

Video Capabilities:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Dual video outputs (V-OUT1, V-OUT2)

USB Connections:

• CarPlay/Android Auto USB (rear connection)
• USB for music or video playback (rear connection)

Additional Rear Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Outputs:

• Front/rear left/right speaker outputs
• Subwoofer output
• Amplifier control (AMP)
• Parking brake input (PARK)
• Canbus connector (UART_RX/UART_TX)

Package Includes:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Accessories may vary depending on your vehicle model. It is normal for them to differ from the listed contents.

Technical Specifications:

• Display size: 9" TFT
• Resolution: 1240 x 600
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging/reading: 5±0.25V/1A
• Supported video formats: H264/MP4/AVI/MKV/FLV
• Supported audio formats: MP3/APE/AAC/FLAC
