Nakamichi Wireless CarPlay & Android Auto Upgrade Kit for Kia Optima 2014-2015

Compatibility:

• for Kia Optima 2014-2015 models.

Important Notice:

• Compatible with Steering Wheel Controls.

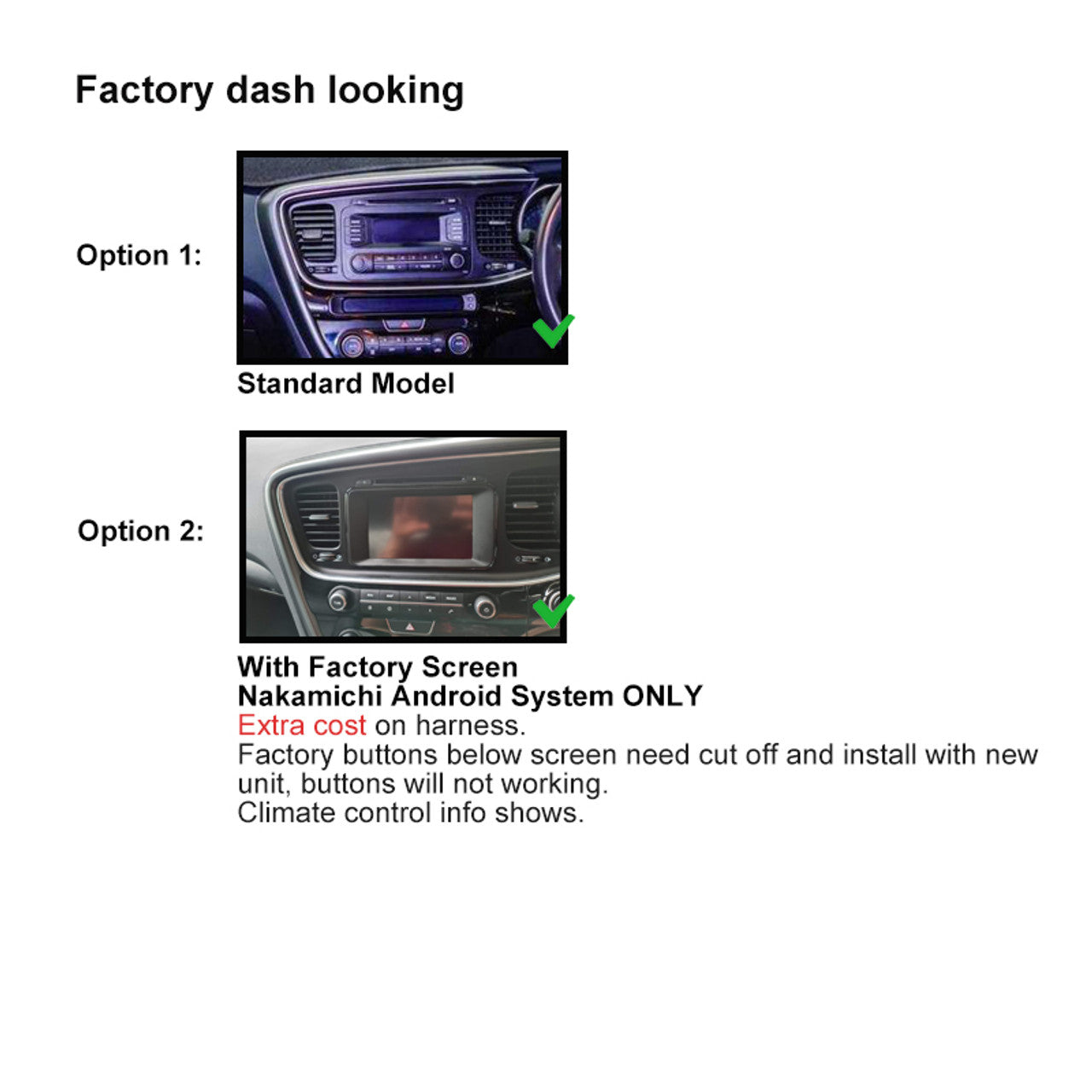

• Option 1: Standard model.
• Option 2: With factory screen—Nakamichi Android System ONLY. Additional harness required (extra cost). Factory buttons below the screen will need to be cut off and installed with the new unit; they will no longer function, but climate control info will still display.
• Please provide a photo of your dashboard along with the vehicle year and model when purchasing, so we can send you the compatible harness.

Key Features:

Wireless Apple CarPlay:
Experience the convenience of wireless CarPlay! Navigate, make calls, send and receive messages, and enjoy music—all on your car's built-in display. With iOS, CarPlay adds new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for select phones):
Instantly pair your Android device with the car display for easy access to your apps. Get driving directions, send texts, or make hands-free calls—all while keeping your focus on the road. Just plug in and go, with no cables necessary for most phones.

Bluetooth Connectivity:

• BT 5.0 + EDR
• Frequency: 2.4 GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• 18 FM presets and 12 AM presets.

Audio Features:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4–8Ω
• AUX-L and AUX-R audio inputs.

Video Inputs/Outputs:

• Reverse Camera (R-CAM) and Extra Video Input (V-IN)
• Video Outputs (V-OUT1, V-OUT2) for additional media integration.

USB Interface:

• USB for CarPlay/Android Auto (CP/AA)
• Additional USB for music or video playback.

Other Inputs/Outputs:

• Radio Antenna and Microphone Inputs
• Canbus Connector for vehicle integration
• Parking Brake and Amplifier Control outputs.

Package Includes:

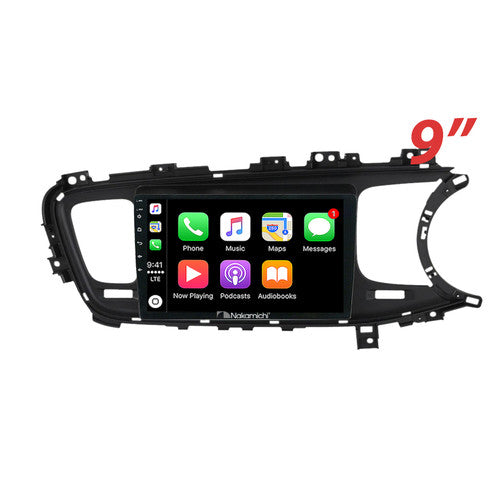

• Nakamichi Head Unit with Fascia
• Main Harness
• RCA Cable
• Microphone
• 2 USB Cables
• User Manual
  (Note: Accessory packages may vary based on vehicle model.)

General Specifications:

• 9” TFT Display with 1240x600 resolution
• 500 nits brightness for optimal visibility
• Operating Voltage: 14.4V (range: 10.5V–16V)
• USB Charging/Reading Support (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
