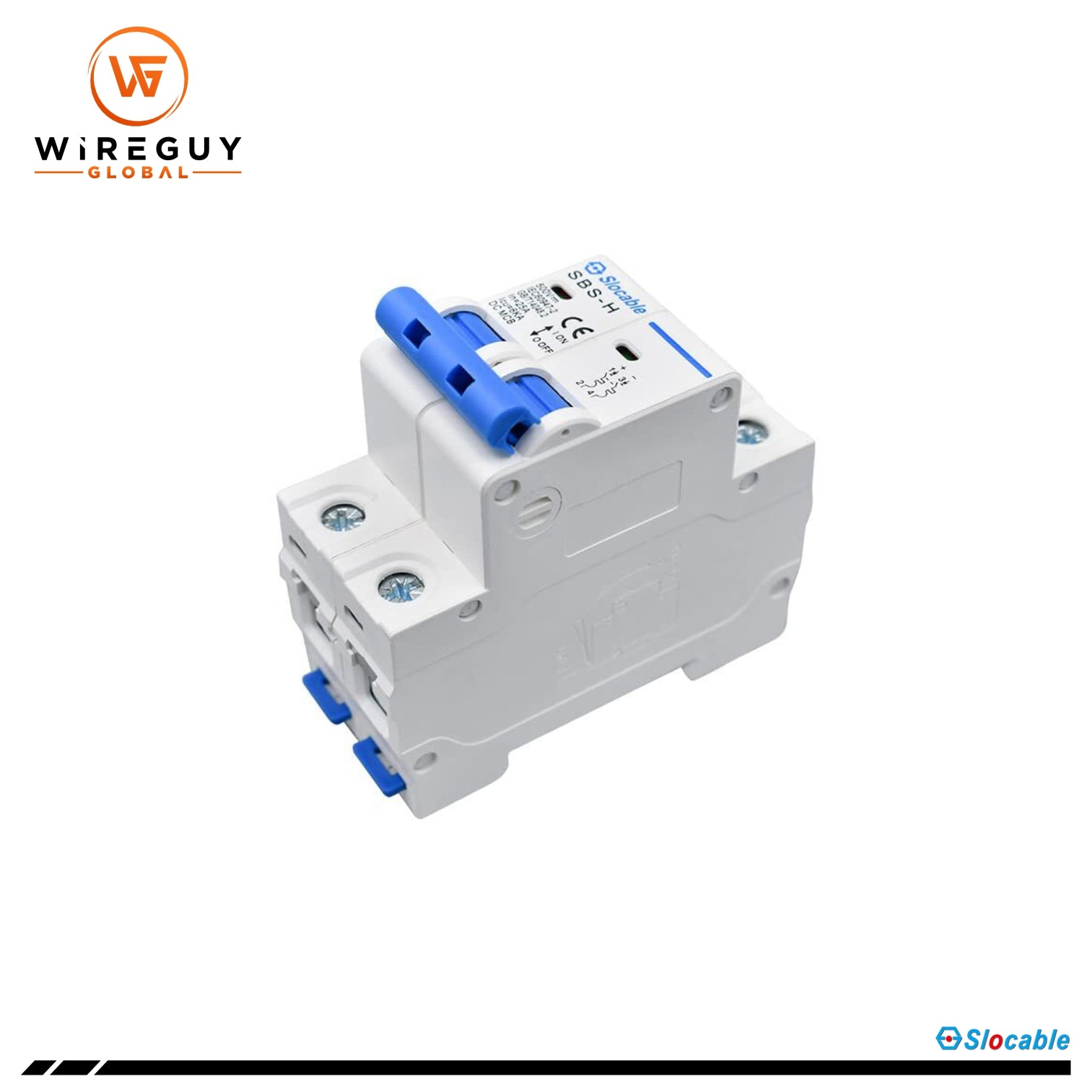

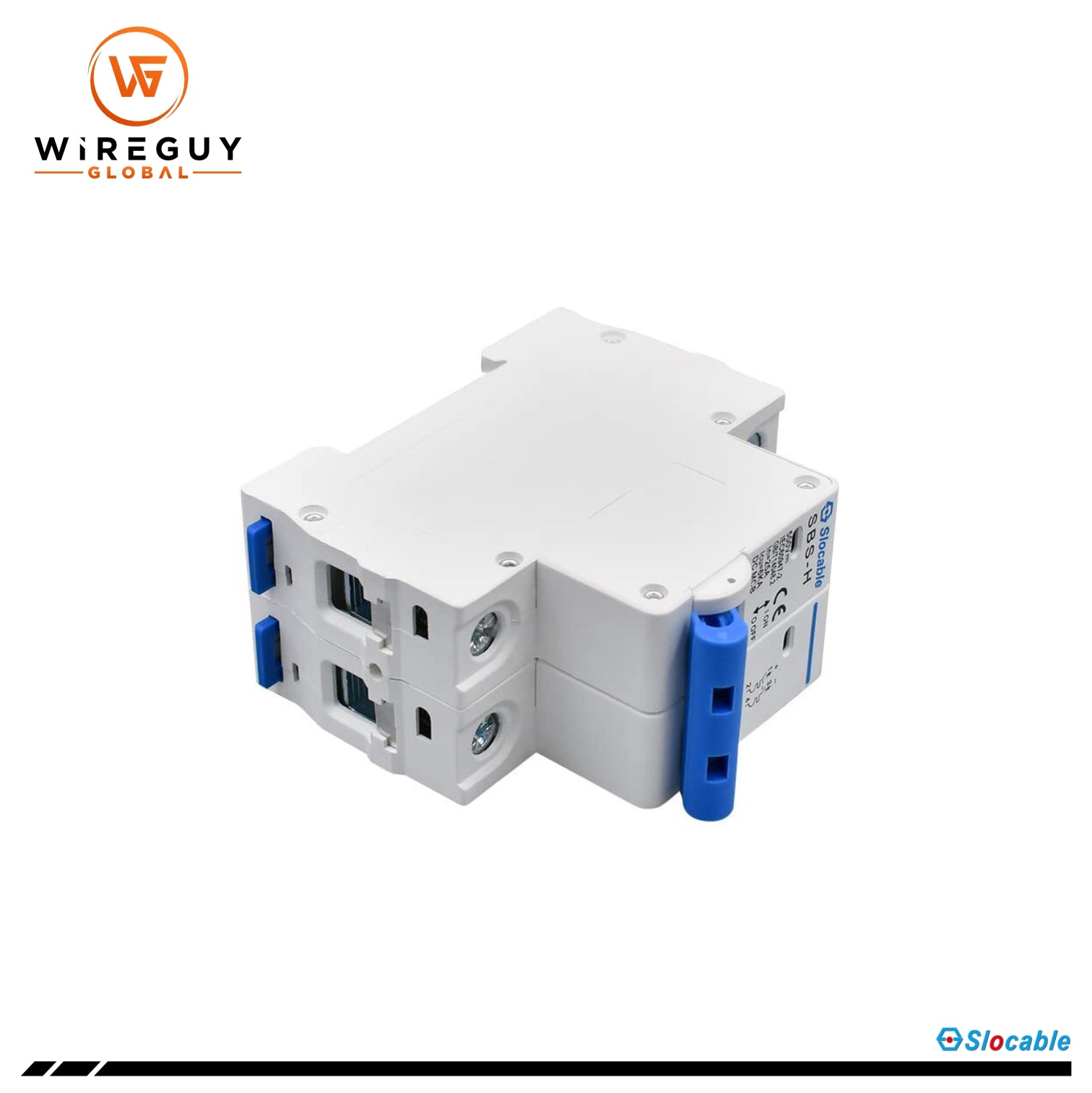

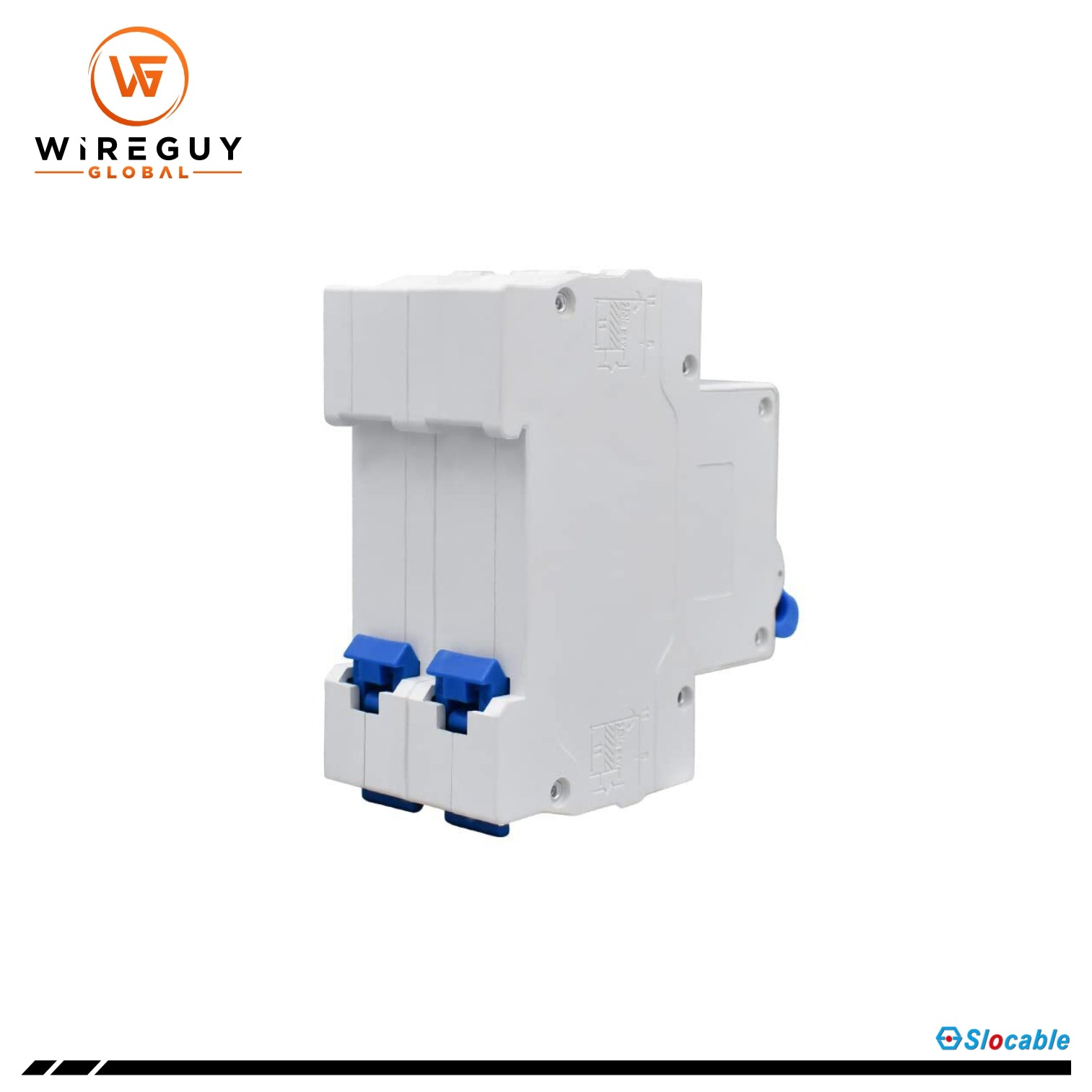

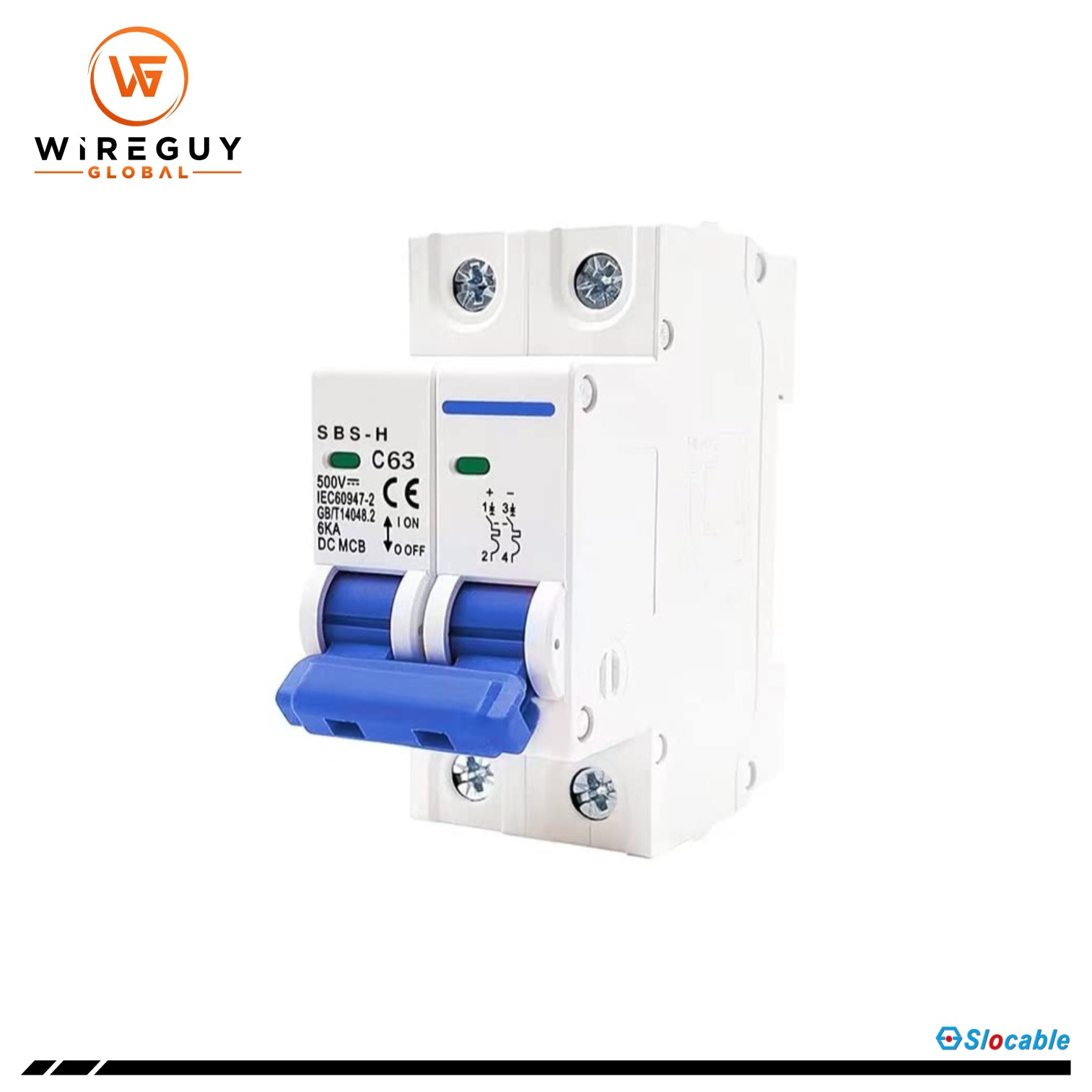

Slocable MCB 500V 2P 25A - DC Solar Isolator

The Slocable MCB 500V 2P 25A DC Solar Isolator is a high-quality miniature circuit breaker designed specifically for photovoltaic installations, energy storage systems, and other DC applications. It provides essential load isolation and protection against overloads and short circuits, ensuring the safety and efficiency of your solar power system. This isolator is typically installed between batteries and hybrid inverters and can be manually reset after tripping.

Key Features:

• Overload and Short Circuit Protection: Provides reliable protection against overloads and short circuits, ensuring safe operation of solar power systems.
• High Short Circuit Breaking Capacity: Rated up to 6 kA, it ensures rapid and effective interruption of fault currents, preventing damage to system components.
• Non-Polarity Design: Allows for easy wiring with no specific polarity requirement, simplifying installation.
• Wide Voltage and Current Ratings: Suitable for systems with currents up to 63A and voltages up to 1000V, making it versatile for a range of solar and DC applications.
• Advanced Arc Extinguishing Technology: Features arc extinguishing and flash barrier technology for quick and safe current interruption.
• Standards Compliant: Tested according to EN 60947-2 and AS/NZS IEC 60947.2:2015, ensuring reliable performance and safety.

Specifications:

• Model: MCB 500V 2P 25A
• SKU Code: MCB500252P
• Poles: 2
• Rated Working Voltage (Ue): 500V DC
• Frame Current: 63A
• Rated Current (In): 25A
• Rated Insulation Voltage (Ui): 1000V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Tripping Characteristics: B/C
• Tripping Type: Thermal Magnetic
• Rated Ultimate Short-Circuit Breaking Capacity (Icu): 6kA
• Rated Service Short-Circuit Breaking Capacity (Ics): 6kA
• Electrical Life: 500 cycles (actual), 300 cycles (standard)
• Mechanical Life: 10,000 cycles (actual), 9,700 cycles (standard)
• Overvoltage Category: III
• Pollution Degree: 3
• Ingress Protection: IP40; Wiring Port IP20
• Resistance to Humidity and Heat: Class 2
• Relative Humidity: ≤ 95%
• Vibration Resistance: According to IEC60068-2-6
• Shock Resistance: According to IEC60068-2-27
• Terminal Capacity: 2.5 ~ 35mm²
• Fastening Torque for Terminals: 2.0 ~ 3.5Nm
• Ambient Temperature Range: -30°C to 70°C
• Storage Temperature Range: -40°C to 85°C
• Installation Method: DIN rail
• Elevation: ≤ 2000m

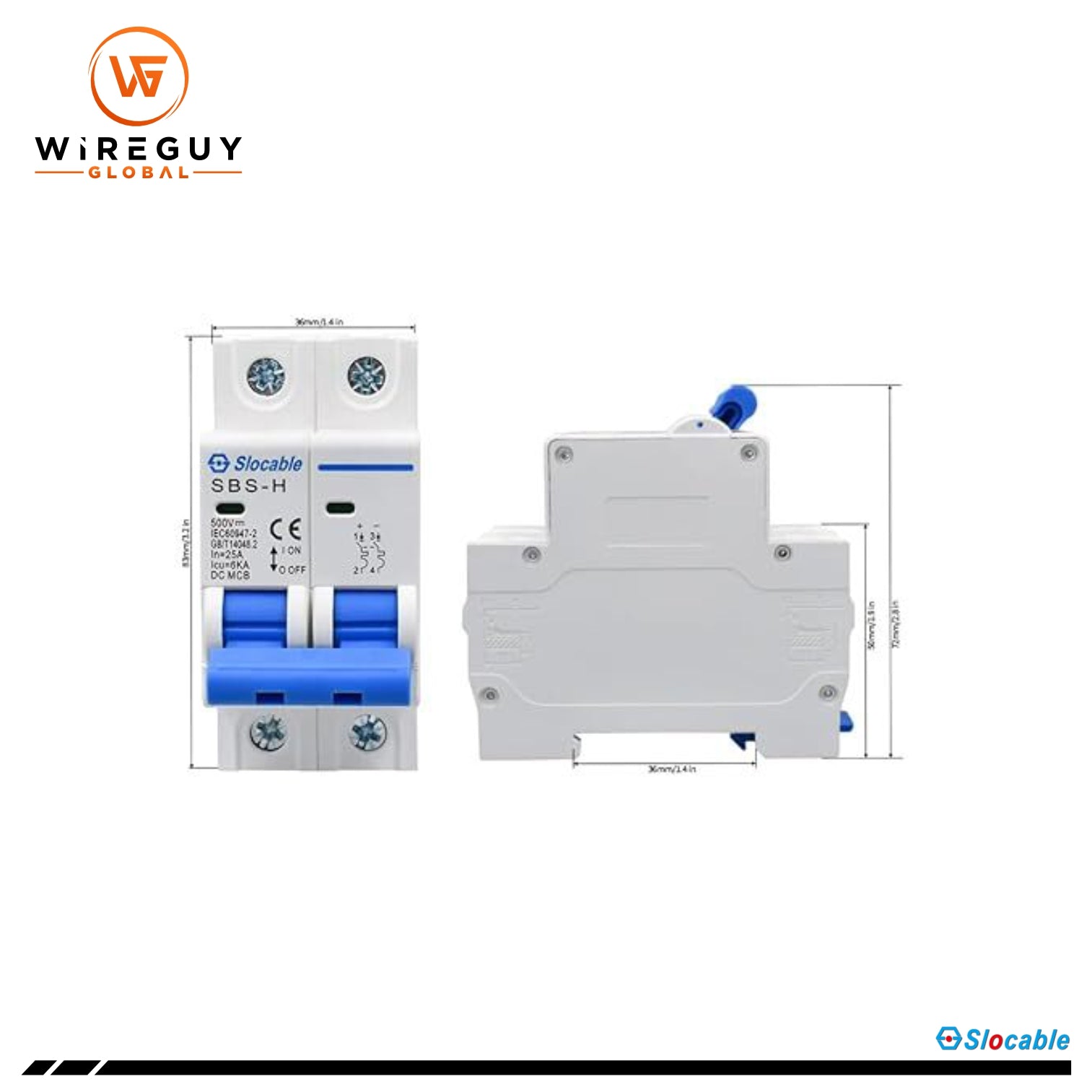

• Dimensions (W x H x D): 72mm x 83mm x 72mm
• Weight: 0.24kg

Warranty:

• 5-year manufacturer’s warranty

What's in the Box:

• 1 x MCB 500V 2P 25A DC Solar Isolator

Applications:

• Photovoltaic installations
• Energy storage systems
• Other DC applications requiring reliable circuit protection

FAQs:

1. Can this isolator be used in systems with voltages higher than 500V DC?
   No, this isolator is rated for a maximum working voltage of 500V DC. For higher-voltage systems, a different isolator with the appropriate voltage rating should be used.

2. Is the isolator suitable for outdoor installations?
   This isolator has an IP40 ingress protection rating, meaning it’s protected from solid objects larger than 1mm, but not from water. It is ideal for indoor use or within a weatherproof enclosure for outdoor installations.

3. How do I reset the isolator after it trips?
   Once the cause of the trip (overload or short circuit) is addressed, the isolator can be manually reset by switching it back to the “ON” position.
