Slocable MCB 500V 2P 32A - DC Solar Isolator

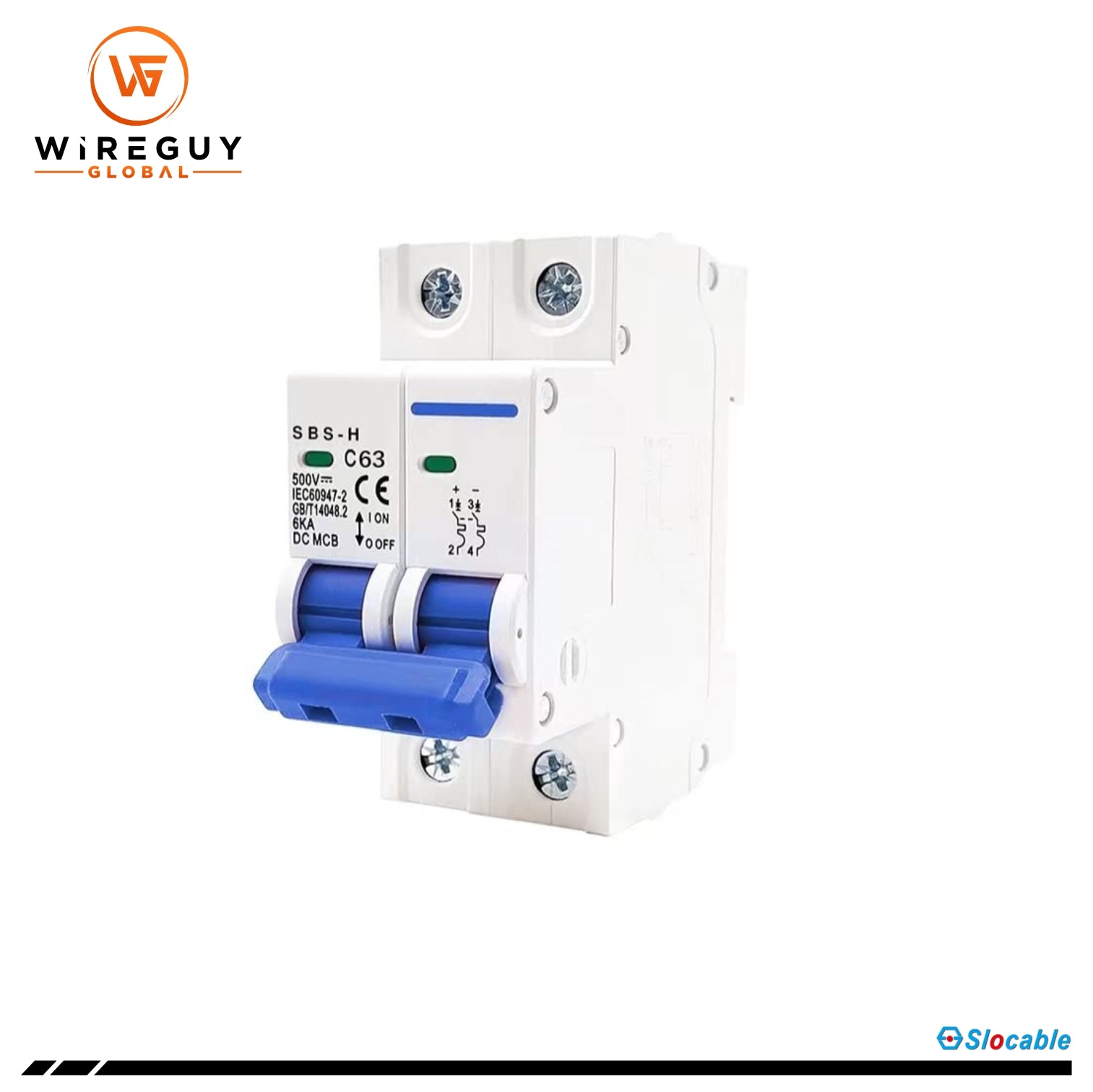

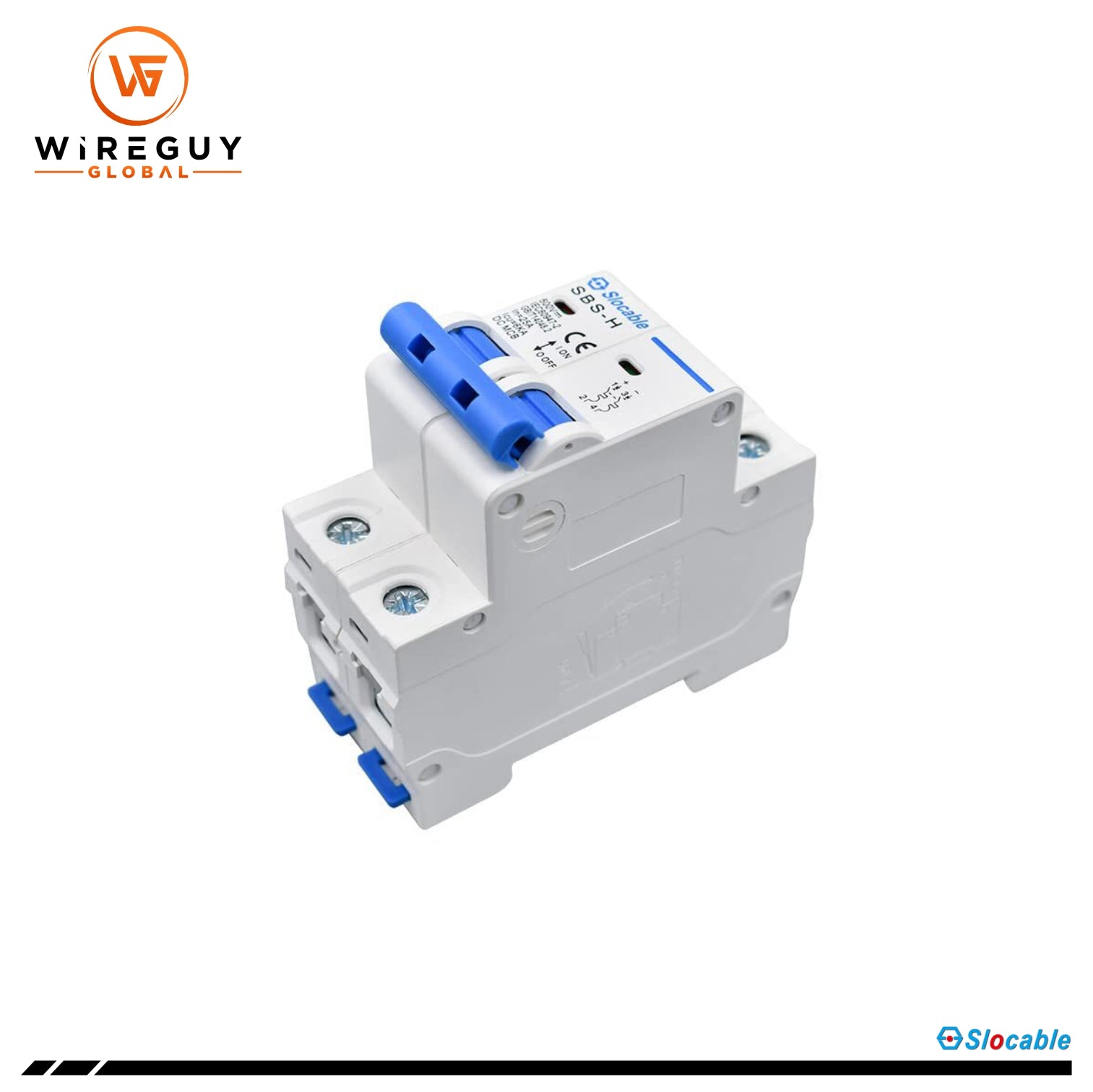

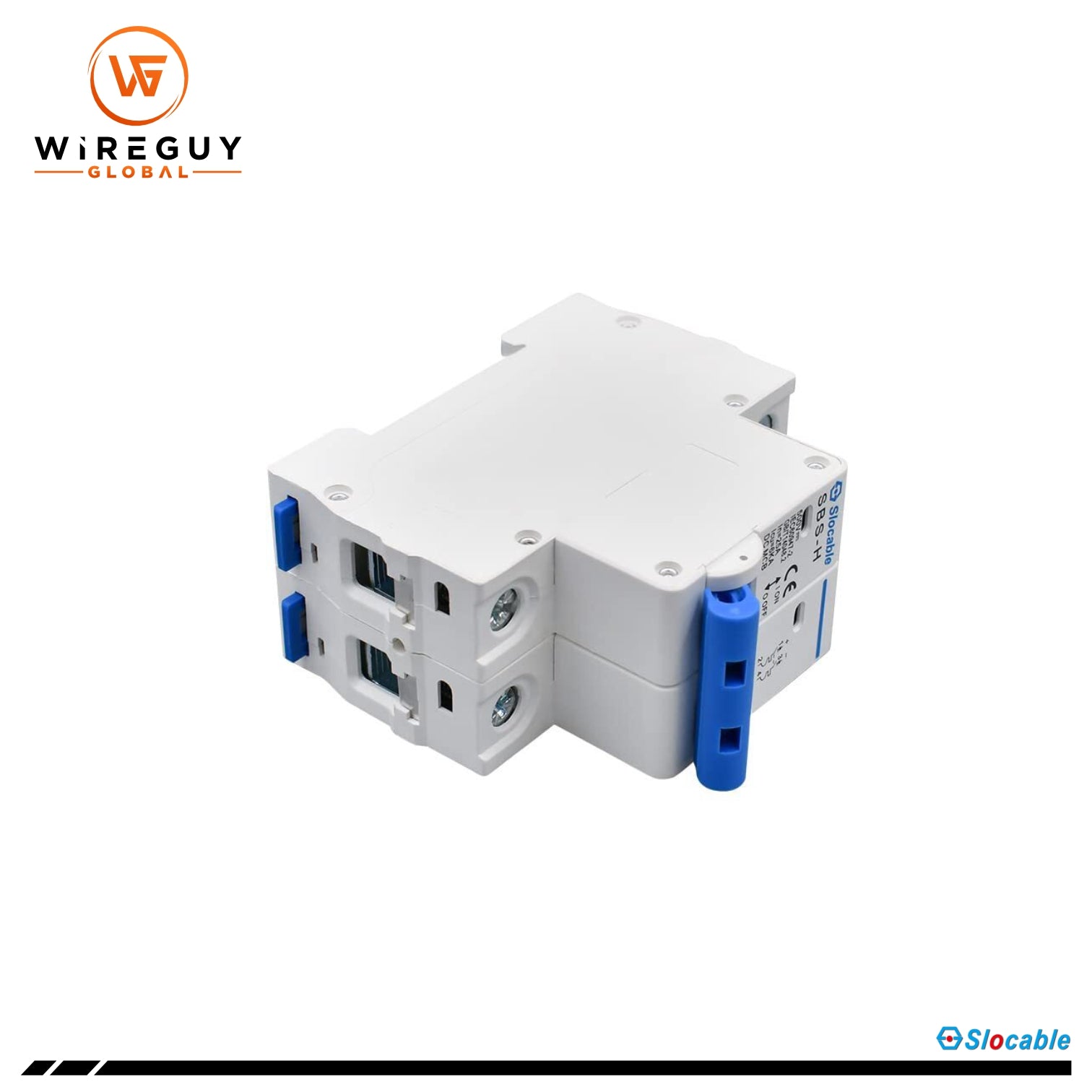

The Slocable MCB 500V 2P 32A DC Solar Isolator is a high-quality miniature circuit breaker designed for photovoltaic installations, energy storage systems, and other DC applications. It provides essential load isolation and protection against overloads and short circuits, ensuring the safety and efficiency of your solar power system. This isolator is commonly installed between batteries and hybrid inverters and can be manually reset after tripping.

Key Features:

• Overload and Short Circuit Protection: Safeguards your system from electrical faults, providing reliable protection for solar power systems.
• High Short Circuit Breaking Capacity: Rated up to 6 kA, ensuring rapid interruption of fault currents, preventing damage to equipment.
• Non-Polarity Design: Simplifies installation with no polarity requirements, making it easier to wire the system.
• Wide Voltage and Current Ratings: Suitable for use in systems with currents up to 63A and voltages up to 1000V, ideal for a variety of solar and DC applications.
• Advanced Arc Extinguishing Technology: Utilizes arc extinguishing and flash barrier technology to ensure safe and quick interruption of current during faults.
• Standards Compliant: Tested and approved according to EN 60947-2 and AS/NZS IEC 60947.2:2015 standards, ensuring high quality and reliable performance.

Specifications:

• Model: MCB 500V 2P 32A
• SKU Code: MCB500322P
• Poles: 2
• Rated Working Voltage (Ue): 500V DC
• Frame Current: 63A
• Rated Current (In): 32A
• Rated Insulation Voltage (Ui): 1000V
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Tripping Characteristics: B/C
• Tripping Type: Thermal Magnetic
• Rated Ultimate Short-Circuit Breaking Capacity (Icu): 6kA
• Rated Service Short-Circuit Breaking Capacity (Ics): 6kA
• Electrical Life: 500 cycles (actual), 300 cycles (standard)
• Mechanical Life: 10,000 cycles (actual), 9,700 cycles (standard)
• Overvoltage Category: III
• Pollution Degree: 3
• Ingress Protection: IP40; Wiring Port IP20
• Resistance to Humidity and Heat: Class 2
• Relative Humidity: ≤ 95%
• Vibration Resistance: According to IEC60068-2-6
• Shock Resistance: According to IEC60068-2-27
• Terminal Capacity: 2.5 ~ 35mm²
• Fastening Torque for Terminals: 2.0 ~ 3.5Nm
• Ambient Temperature Range: -30°C to 70°C
• Storage Temperature Range: -40°C to 85°C

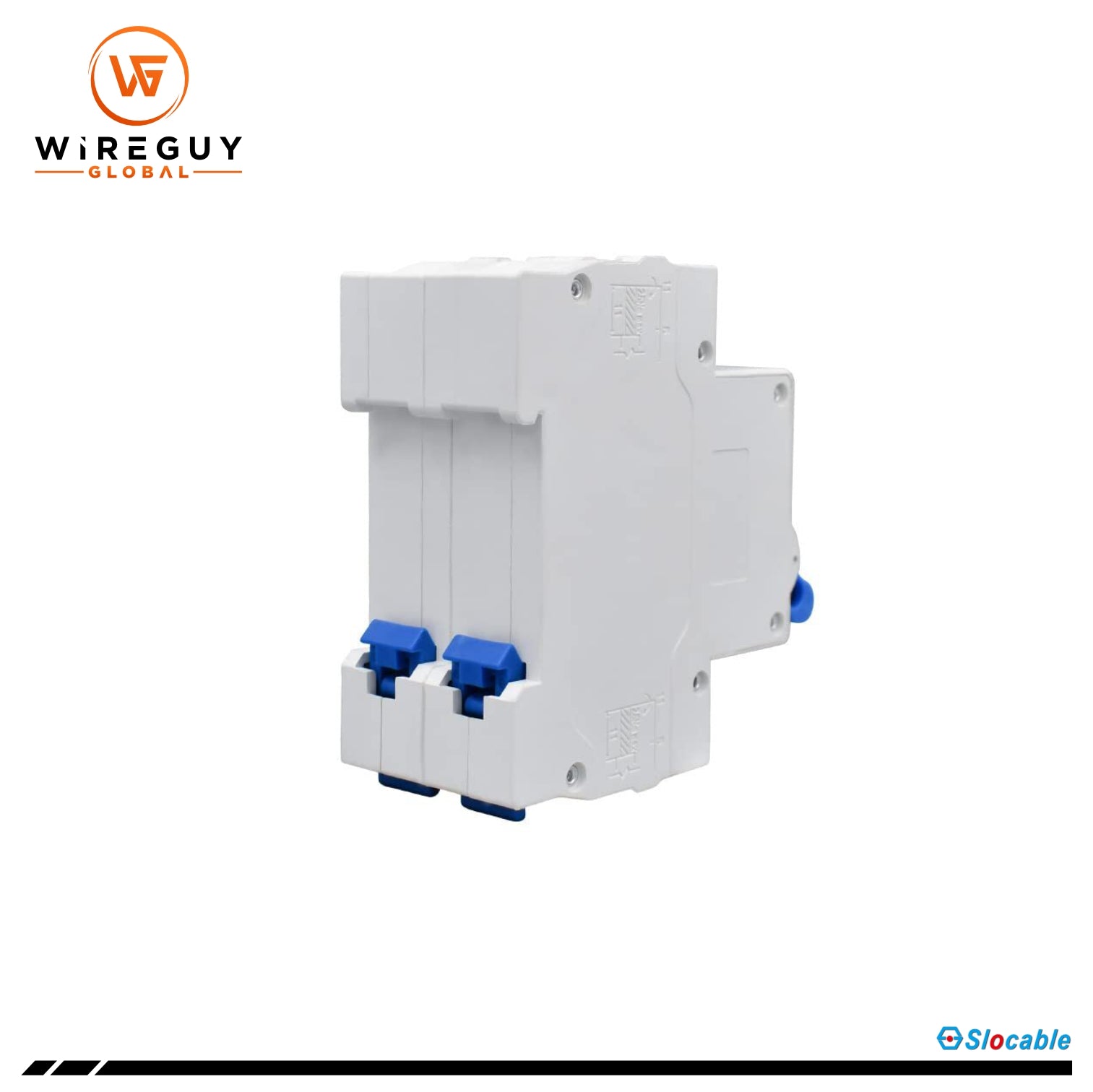

• Installation Method: DIN rail
• Elevation: ≤ 2000m

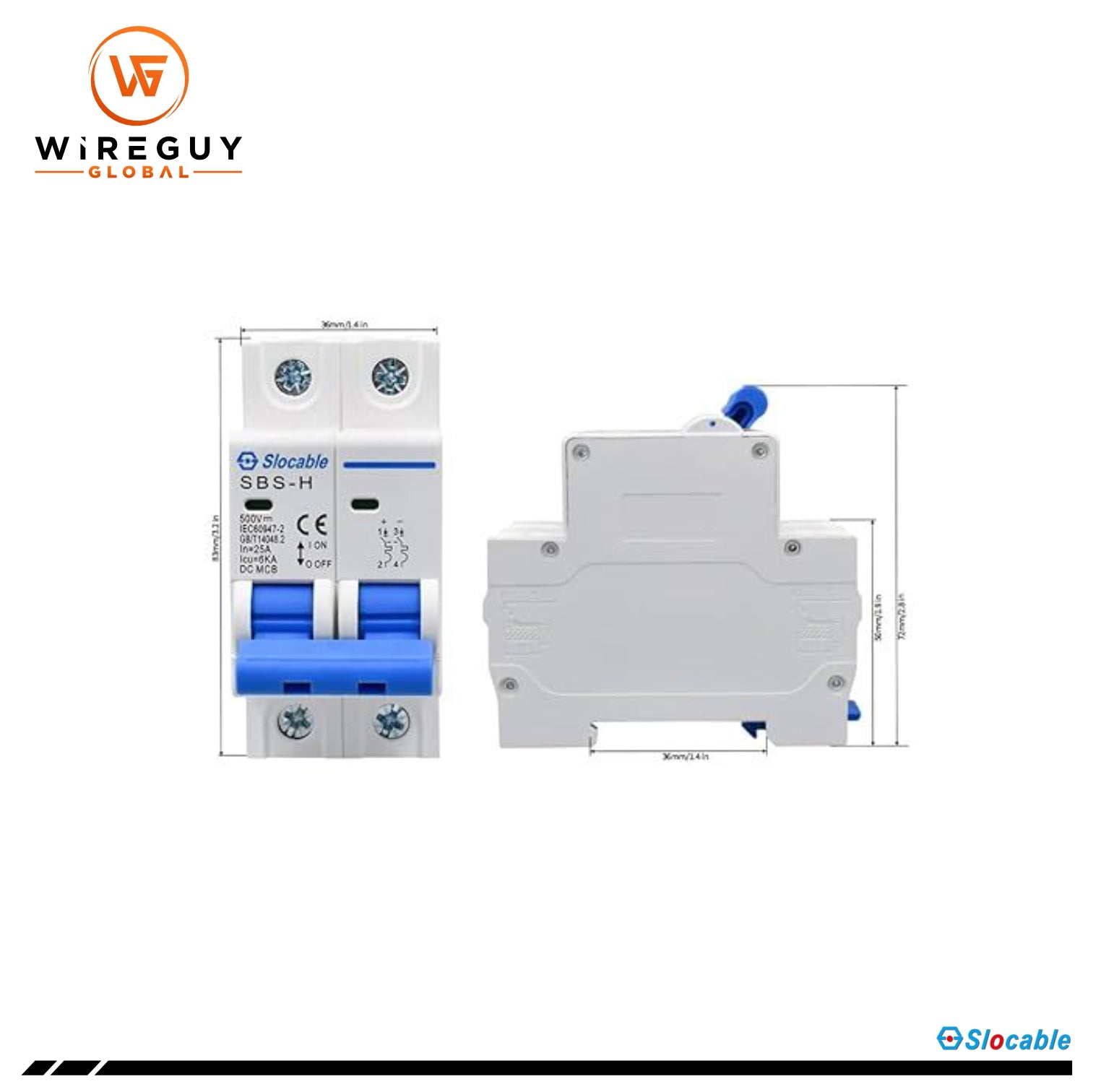

• Dimensions (W x H x D): 72mm x 83mm x 72mm
• Weight: 0.24kg

Warranty:

• 5-year manufacturer’s warranty

What’s in the Box:

• 1 x MCB 500V 2P 32A DC Solar Isolator

Applications:

• Photovoltaic installations
• Energy storage systems
• Other DC applications requiring reliable circuit protection

FAQs:

1. Can this isolator be used in systems with voltages higher than 500V DC?
   No, the MCB 500V 2P 32A DC Solar Isolator is rated for a working voltage of up to 500V DC. For systems with higher voltages, a different isolator with the appropriate voltage rating should be selected.

2. Is the isolator suitable for outdoor installations?
   The isolator is rated IP40, meaning it’s protected from solid objects larger than 1mm but not from water. For outdoor use, it is recommended to install it within a weatherproof enclosure.

3. How do I reset the isolator after it trips?
   Once the cause of the trip (such as overload or short circuit) is resolved, the isolator can be manually reset by switching it back to the “ON” position.
