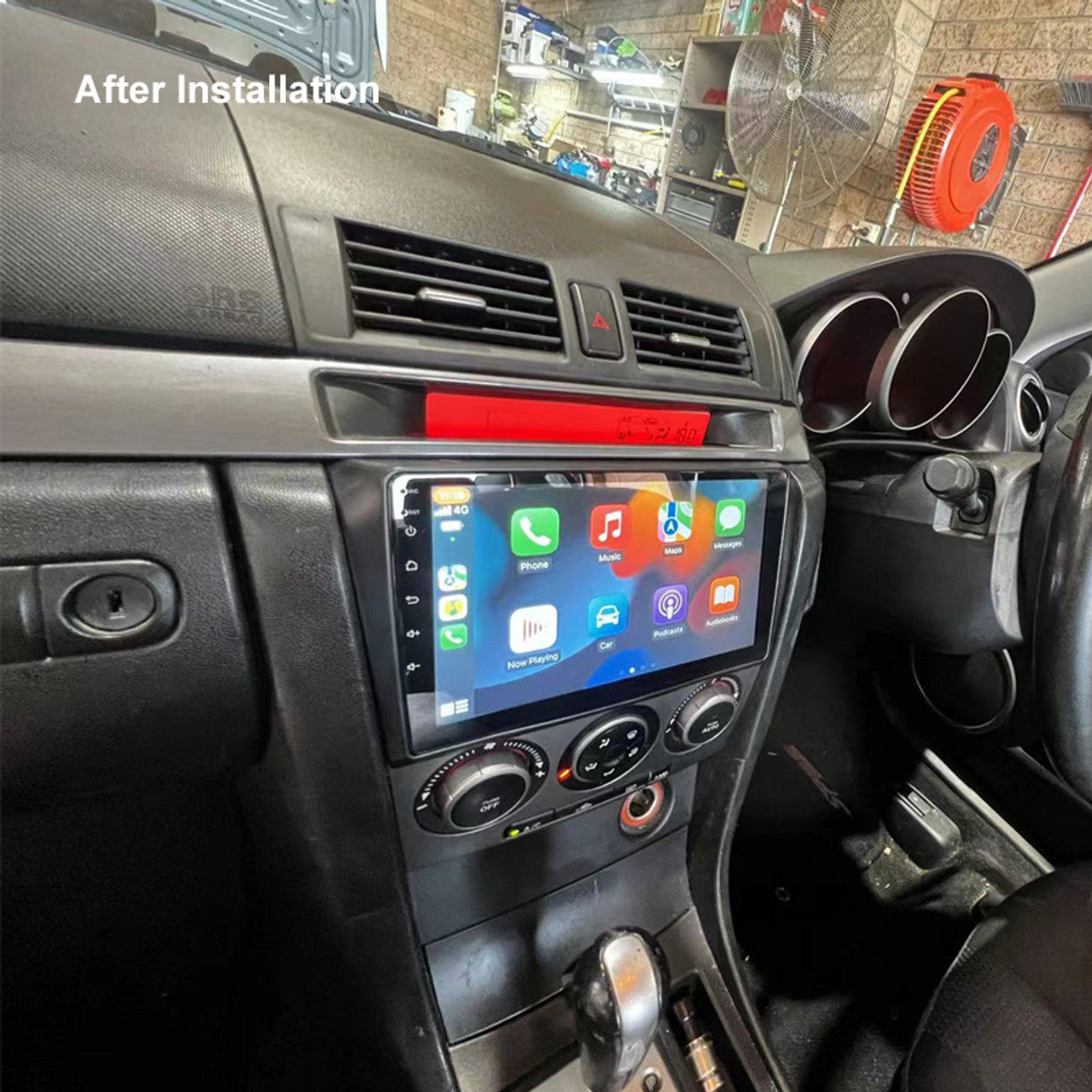

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mazda 3 2004-2009

Compatibility:

• For Mazda 3 2004-2009.

Important Information

• Compatible with Steering Wheel Controls.
• If your car has the BOSE sound system, a harness modification is required.
• Please send a photo of your dashboard with the car’s year and model when purchasing, so we can send you the compatible harness.

Key Features

Wireless Apple CarPlay

• The Ultimate Co-Pilot. Enjoy CarPlay without the need for cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car’s built-in screen. With iOS, CarPlay introduces all-new app categories and custom wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands)

• Pair your phone without cables and start your journey. Your Android apps will show up on your car’s display. Tap to get driving directions, send a text, or make a hands-free call. Android Auto helps you focus on the road while making your drive enjoyable. Just plug in and go!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM frequency: 87.5-108.0 MHz
• AM frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX IN_L: Audio left input
• AUX IN_R: Audio right input
• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• SUB_OUT: Subwoofer output
• AMP_POW: Amplifier control
• RL-OUT: Rear left speaker output
• RR-OUT: Rear right speaker output

Video Inputs

• R-CAM: Reverse camera video input
• V-IN: Extra video input
• V-OUT1: Video output 1
• V-OUT2: Video output 2

USB Interface

• CP/AA: USB connection for CarPlay/Android Auto
• USB: USB connection for music or video

Other Inputs

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Includes

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: For different car models, the accessory package may vary. It is normal if the contents are not exactly the same as listed.

General Specifications

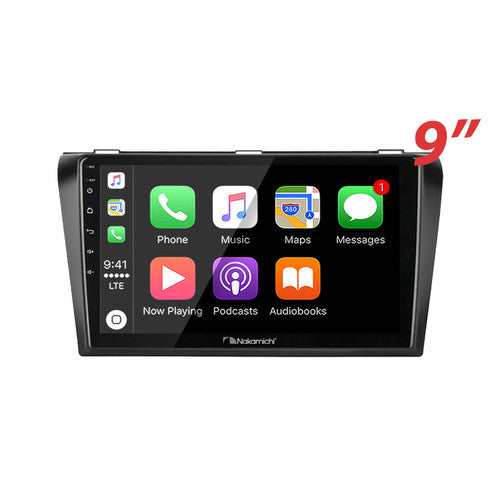

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB readable/chargeable: (5±0.25V/1A)
• Video format support: H264/MP4/AVI/MKV/FLV
• Audio format support: MP3/APE/AAC/FLAC
