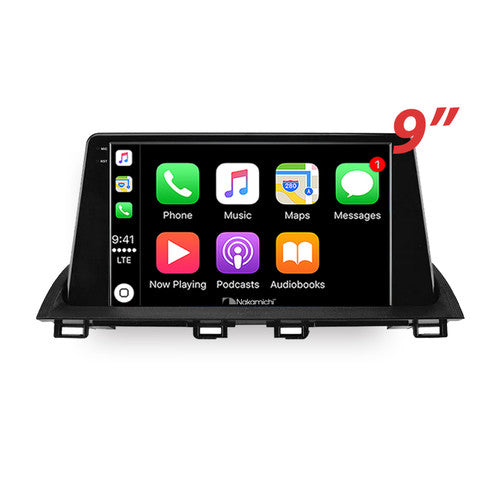

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mazda 3 2013+

Compatibility:

• For Mazda 3 2013+.

Important Information

• Nakamichi Android System
• Compatible with Steering Wheel Controls

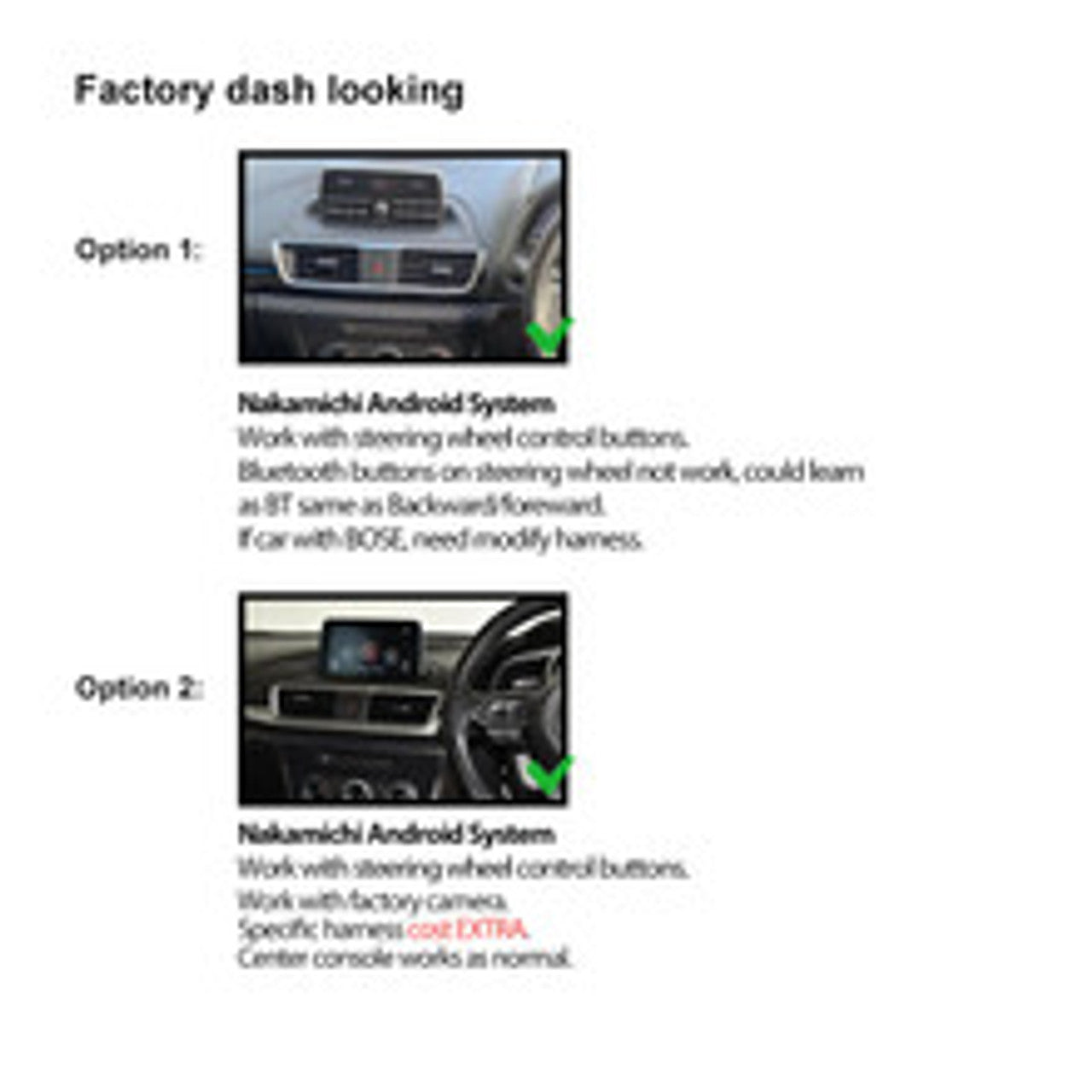

• Option 1: If your car has the BOSE sound system, a harness modification is required. The Bluetooth button on the Steering Wheel Control (SWC) is not compatible but can be configured to work as the Backward/Forward button.
• Option 2: If your car has the factory screen, extra cost applies for the harness. The system will work with the factory camera, but is not compatible with the factory USB.
• The center console will function as normal.
• Please send a photo of your dashboard with the car’s year and model when purchasing, so we can send you the compatible harness.

Key Features

PhoneLink Operation

• iPhone Connection
  The ultimate co-pilot. Enjoy iPhone apps without cables. PhoneLink is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

• Android Phone Connection (Wired for some specific phone brands)
  Pair your phone without cables and hit the road. Pair your phone to the car display, and your phone’s apps will show up onscreen. Tap to get driving directions, send a text, or make a hands-free call. This system is designed to help you focus on the road while making your drive more enjoyable. Just plug in and go!

Built-in GPS

• Preloaded GPS data, with the ability to update or purchase additional data via the Google Play Store.

Built-in WiFi & Support for 4G

• Connect the stereo to a WiFi network, or insert a SIM card for 4G connectivity.

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM frequency: 87.5-108.0 MHz
• AM frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX IN_L: Audio left input
• AUX IN_R: Audio right input
• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• SUB_OUT: Subwoofer output
• AMP_POW: Amplifier control
• RL-OUT: Rear left speaker output
• RR-OUT: Rear right speaker output

Video Inputs

• B.CAMERA: Reverse camera video input
• F_CAMERA: Front camera input
• CVBS: Extra video input

USB Interface

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs

• RADIO: Radio antenna input
• GPS: GPS antenna input
• 5G WiFi
• 4G+/4G-
• MIC: External microphone port
• BRAKE: Brake detection
• Can RX/TX: Canbus box interface

What’s Included in the Package

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x WiFi/BT/Camera cable
• 1 x RL/RR cable
• 1 x Microphone
• 1 x 4G antenna
• 1 x GPS antenna
• 1 x User manual
• 2 x USB cables
  Note: For different car models, the accessory package may vary. It's normal if the contents are not exactly the same as listed.

General Specifications

• TFT screen size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display resolution: 1280x720 IPS
• Brightness: 500 nit
• Operating voltage: 14.4V (range: 10.5-16V)
• USB readable/chargeable: 5±0.25V/1A
• Video format support: H264/MP4/AVI/MKV/FLV
• Audio format support: MP3/APE/AAC/FLAC
