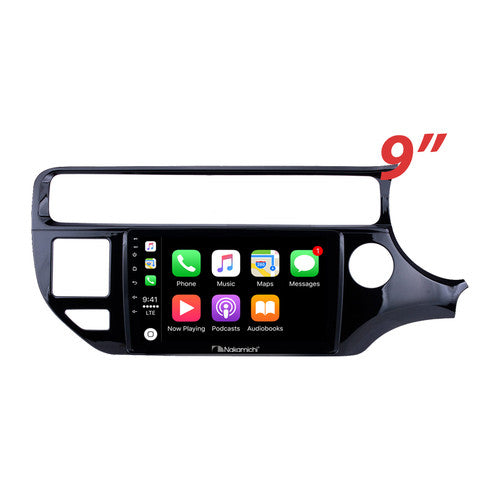

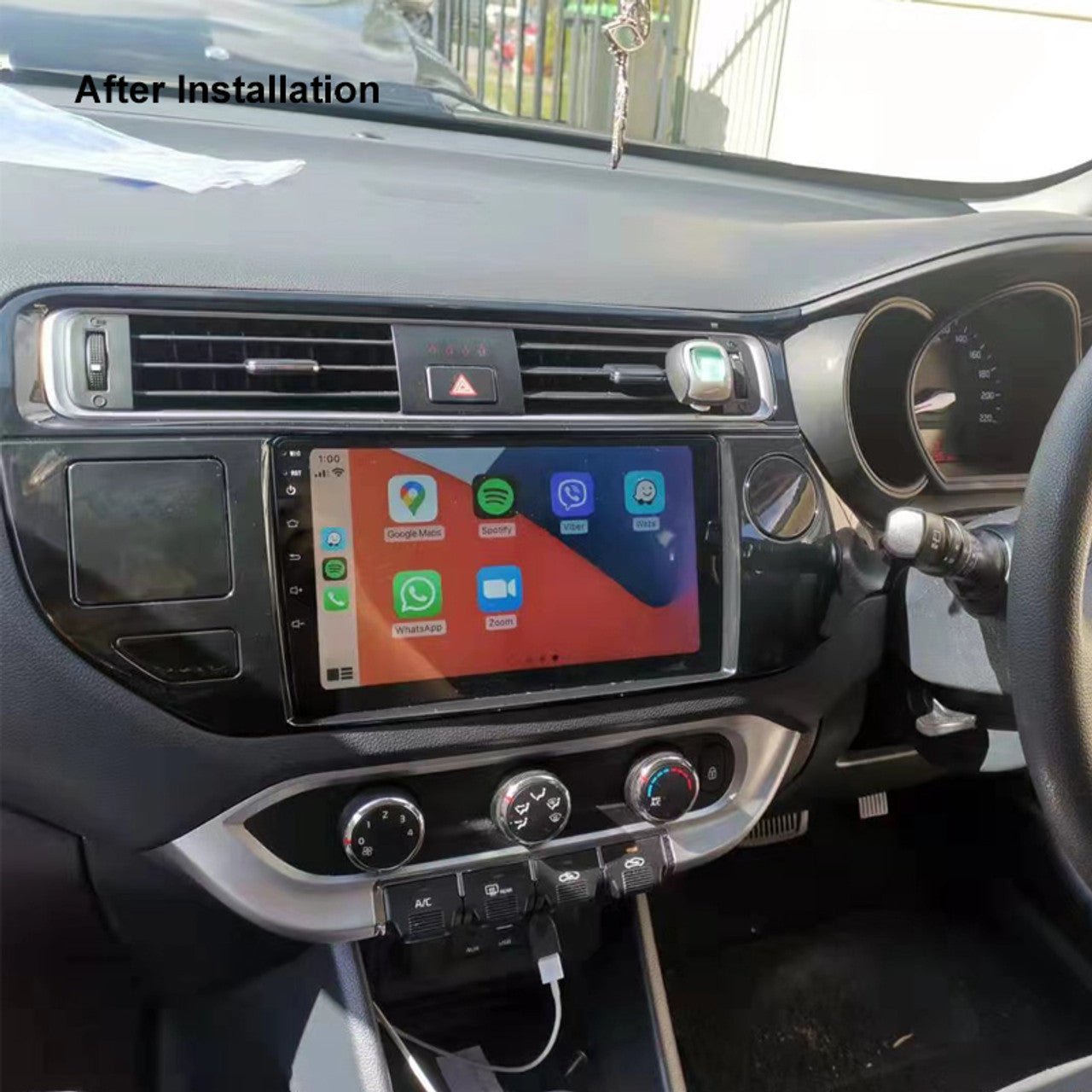

Nakamichi Wireless Apple CarPlay & Android Auto System for Kia RIO 2015-2016

Compatibility:

• for Kia RIO 2015-2016

Important Notice:

• Fully compatible with Steering Wheel Controls
• If your car has CANBUS, an additional cost for the harness will apply
• To ensure compatibility, please send a photo of your dashboard along with your vehicle’s year and model when placing your order

Key Features:

Wireless Apple CarPlay:

• Experience a cable-free Apple CarPlay. Access navigation, hands-free calling, messages, and music on your car's display
• iOS updates introduce new app categories and customizable wallpapers for your CarPlay Dashboard

Wireless Android Auto:

• Connect your Android device wirelessly for apps, maps, texts, and calls on your car screen
• (Wired connection may be required for some phone brands)

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM: 87.5 - 108.0 MHz
• AM: 522 - 1620 kHz
• Station Presets: 18 FM & 12 AM

Audio Output:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right (Rear of the Unit)

Video Inputs & Outputs:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Dual Video Outputs (V-OUT1 & V-OUT2)

USB Connectivity:

• USB Port for CarPlay & Android Auto
• Additional USB Port for Music or Video files

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• RCA Outputs for Front, Rear, and Subwoofer speakers
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake & Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
• Note: The accessory package may vary based on the car model, and it's normal for differences to occur.

Specifications:

• Display: 9" TFT, Resolution: 1240x600
• Brightness: 500 nits, Contrast Ratio: 500
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A for charging and file reading
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
