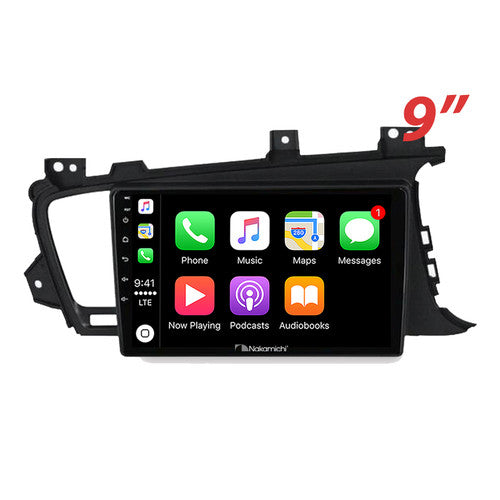

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Kia Optima 2010-2013

Compatibility:

• for Kia Optima 2010-2013

Important Notice:

• Compatible with Steering Wheel Controls

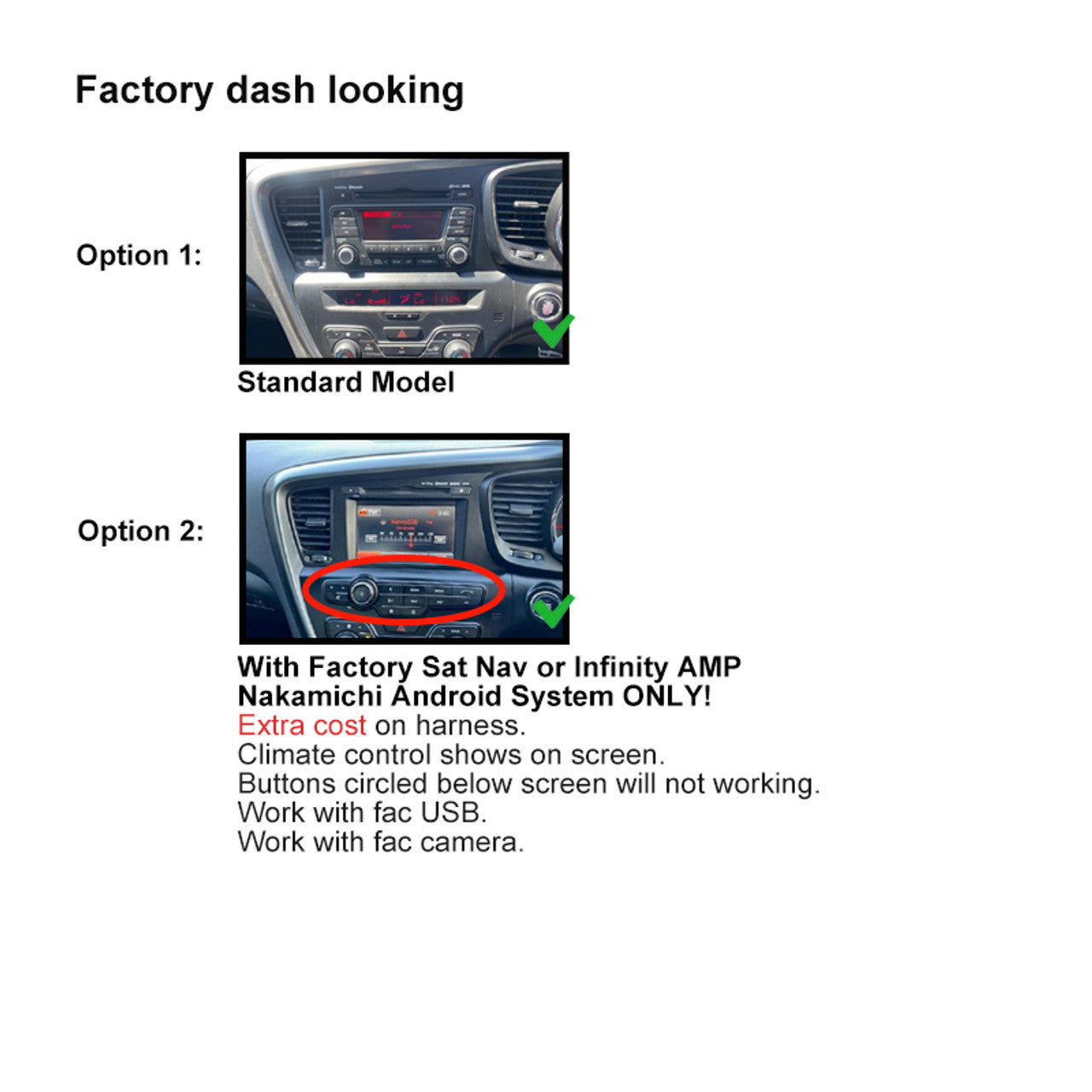

• Option 1: Standard model
• Option 2: For models with factory sat nav or Infinity amp, use the Nakamichi Android System ONLY (extra cost for the harness)
  • Climate control shows on screen
  • Buttons below the screen will not work
  • Works with factory USB and camera
• Please send us a photo of your dashboard along with your car's year and model when purchasing, so we can provide the compatible harness

Main Features:

Wireless Apple CarPlay:

• Enjoy CarPlay without the need for cables
• Get directions, make calls, send and receive messages, and listen to your favorite music on your car's display
• Customizable CarPlay Dashboard with new app categories and wallpapers

Wireless Android Auto:

• Wirelessly pair your phone to your car display
• Display Android apps like maps, messages, and calls on the screen
• Wired connection needed for certain phone brands

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 kHz
• Station Presets: 18 FM & 12 AM

Audio Output:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right (Rear of the Unit)

Video Inputs & Outputs:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Dual Video Outputs (V-OUT1 & V-OUT2)

USB Connectivity:

• USB Port for CarPlay & Android Auto
• Additional USB Port for Music or Video files

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• RCA Outputs for Front, Rear, and Subwoofer speakers
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake & Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
• Note: Accessory packages may vary depending on the car model and it is normal for differences to occur.

Specifications:

• Display: 9" TFT, Resolution: 1240x600
• Brightness: 500 nits, Contrast Ratio: 500
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A for charging and file reading
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
