Nakamichi Wireless Apple CarPlay & Android Auto Solution for Kia Cerato 2009-2013

Compatibility:

• for Kia Cerato 2009-2013

Important Notice:

• Compatible with Steering Wheel Controls

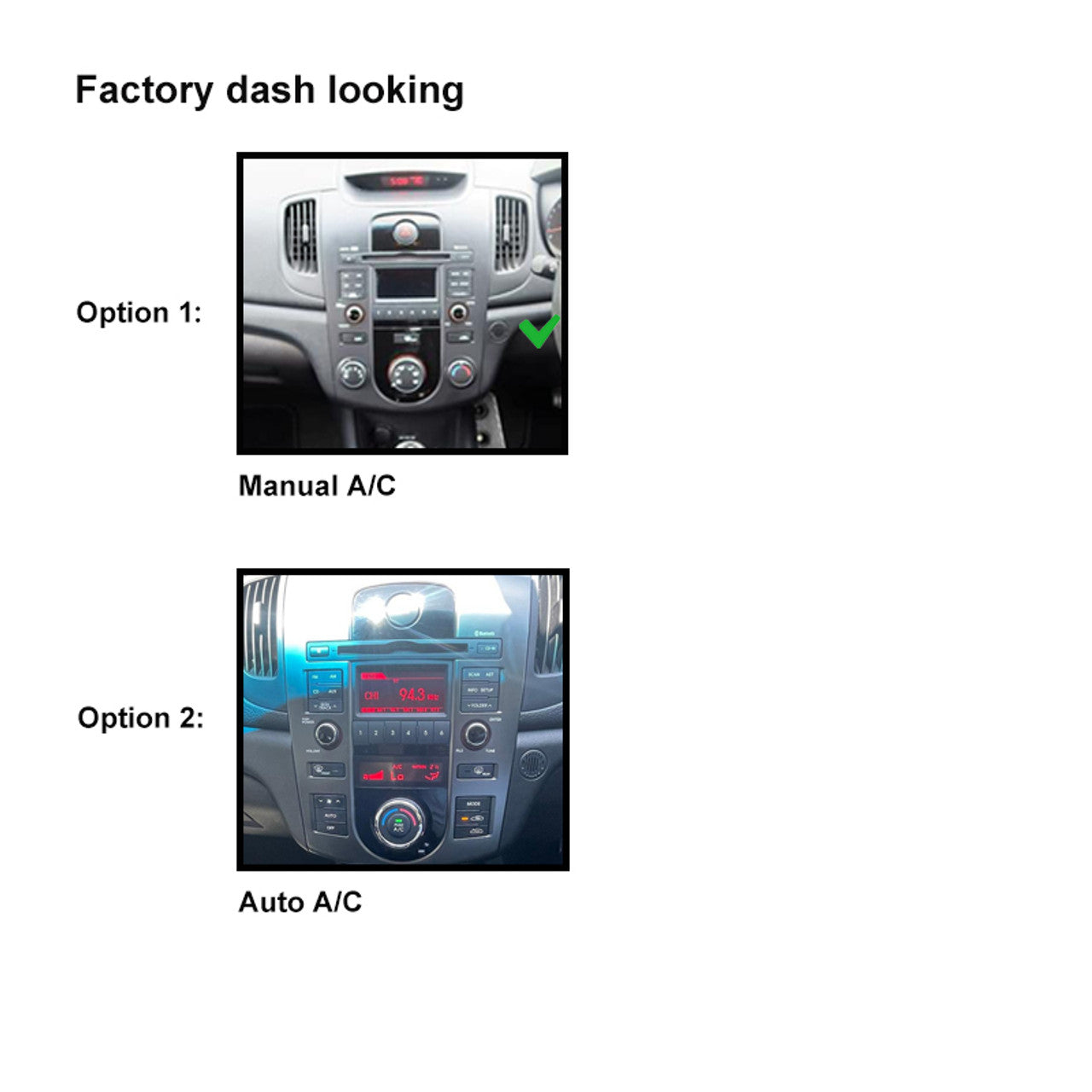

• Option 1: Manual A/C
• Option 2: Auto A/C
• Hazard light switch needs modification
• Not compatible with cars that have a factory amplified system
• Please send a photo of your dashboard along with the car’s year and model when purchasing, so we can send the compatible harness.

Main Features:

Wireless Apple CarPlay:

• Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music, all on your car's built-in display.
• With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto:

• Pair your Android phone wirelessly, and your Android apps will appear on the car’s display.
• Tap to get driving directions, send a text, or make a hands-free call.
• Android Auto helps you focus on the road while enjoying your drive. Some phone brands may require a wired connection.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 kHz
• Station Presets: 18 FM & 12 AM

Audio Specifications:

• Maximum Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right (Rear of the unit)

Video Inputs & Outputs:

• Reverse Camera Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs (V-OUT1 & V-OUT2)

USB Connectivity:

• USB Connection for CarPlay & Android Auto
• Additional USB Port for Music or Video

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• RCA Outputs for Front, Rear, and Subwoofer Speakers
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake & Amplifier Control

Package Includes:

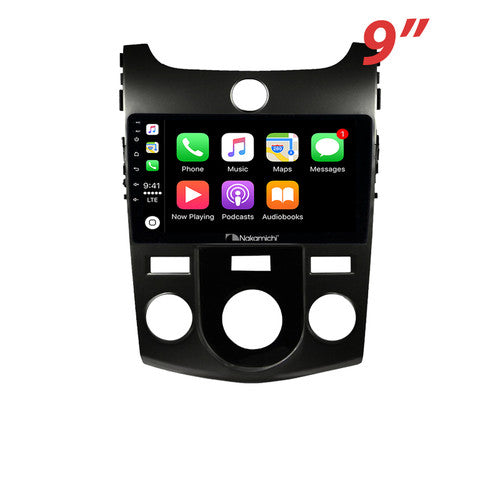

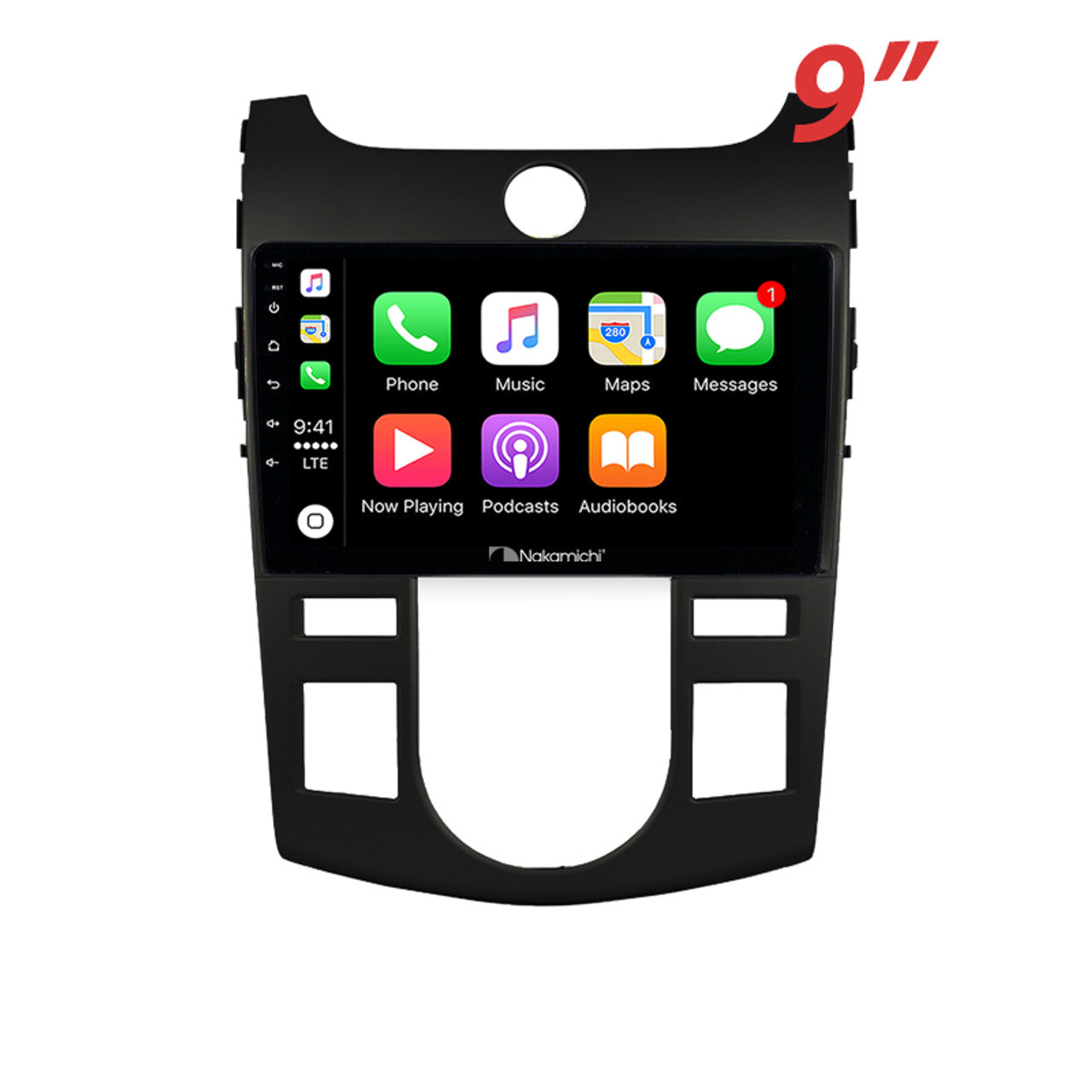

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
• Note: The accessory package may vary depending on the car model and may not match the listed contents exactly.

General Specifications:

• Display Size: 9" TFT
• Resolution: 1240×600
• Brightness: 500 nits
• Contrast Ratio: 500
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A for charging and file reading
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
