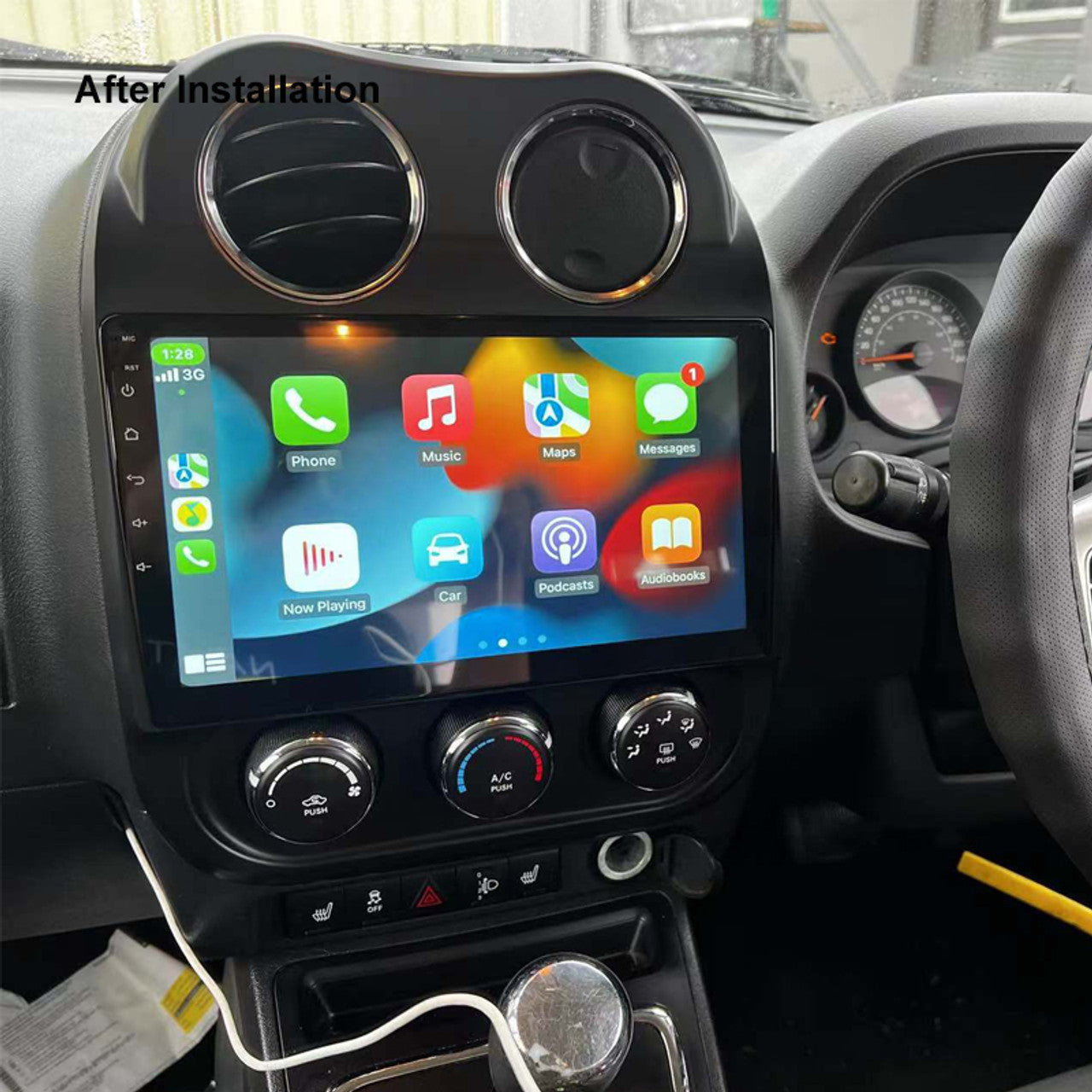

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Jeep Patriot 2009-2016

Compatibility:

• for Jeep Patriot 2009-2016

Important Notice:

• Compatible with Steering Wheel Controls
• Factory reverse camera requires hardwiring

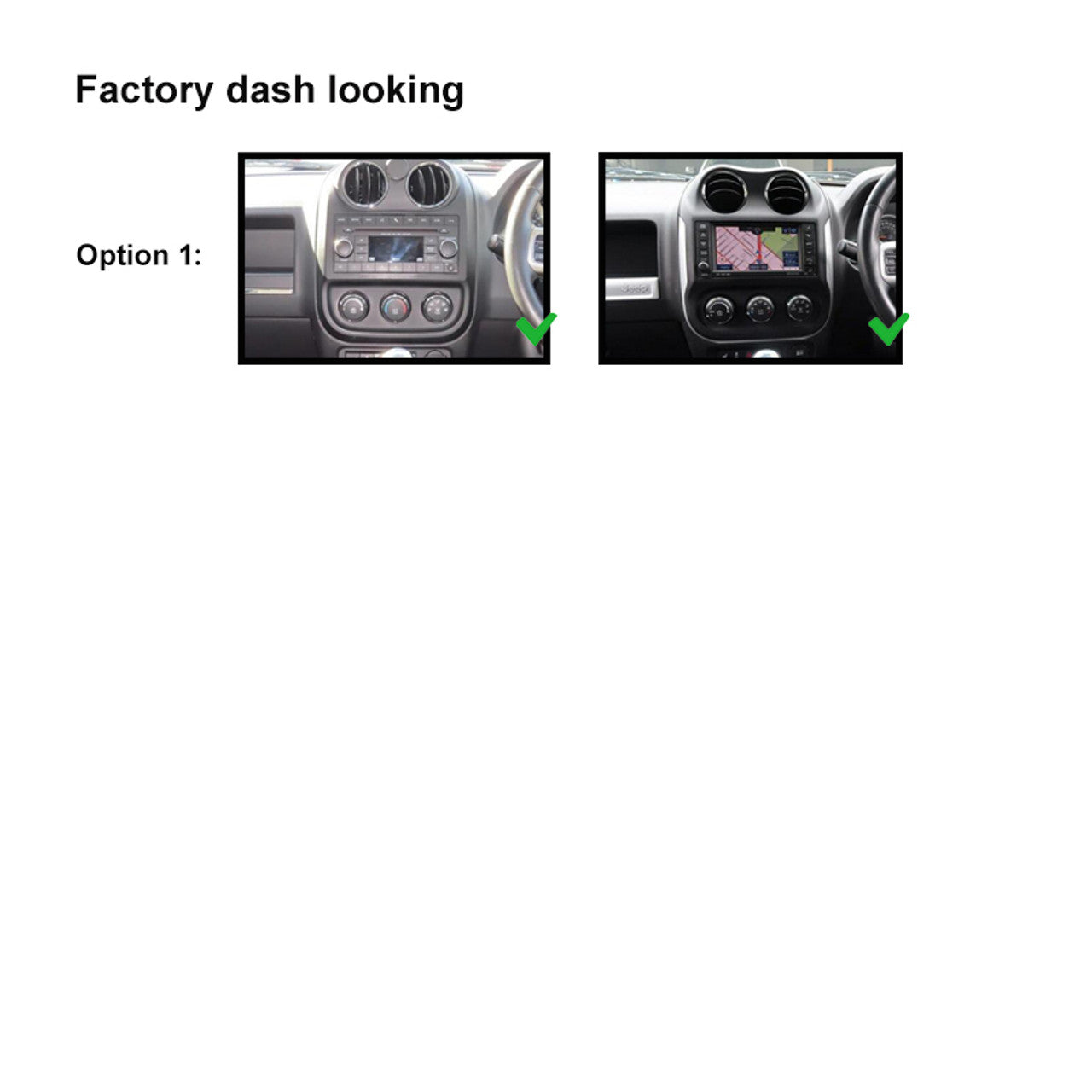

• Please send a photo of your dashboard along with the car’s year and model when purchasing, so we can send the compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Enjoy CarPlay without cables. CarPlay offers smarter, safer ways to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy music all on your car’s built-in display.
• With iOS, CarPlay introduces all-new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto:

• Wireless phone pairing for seamless use on your car display.
• Get driving directions, talk to send a text, or make hands-free calls — all while staying focused on the road.
• For some specific phone brands, Android Auto may require a wired connection.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Station Presets: 18 FM & 12 AM

Audio Specifications:

• Maximum Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs (Left & Right) located on the back of the unit.

Video Inputs & Outputs:

• Reverse Camera Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs (V-OUT1 & V-OUT2)

USB Connectivity:

• USB connection for CarPlay & Android Auto
• Additional USB port for Music or Video

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• RCA Outputs for Front, Rear, and Subwoofer Speakers
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake & Amplifier Control

Package Includes:

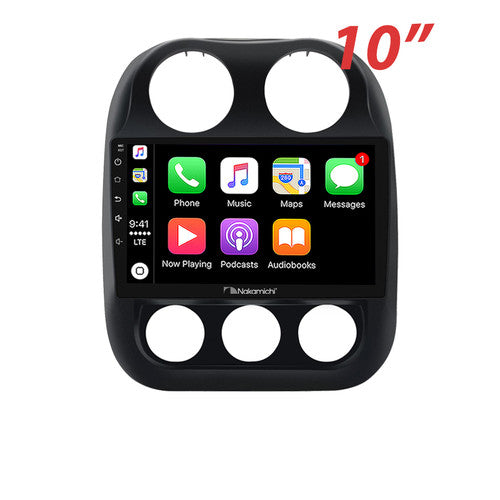

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
• Note: The accessory package may vary depending on your car model and may not match the listed contents exactly.

General Specifications:

• Display Size: 10" TFT
• Display Resolution: 1240×600
• Brightness: 500 nits
• Contrast Ratio: 500
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A (for charging and file reading)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
