Nakamichi Wireless Apple CarPlay & Android Auto Solution for Jeep Grand Cherokee 2014-2021

Compatibility:

• for Jeep Grand Cherokee 2014-2021

Important Notice:

• Compatible with Steering Wheel Controls
• Works with factory reverse camera

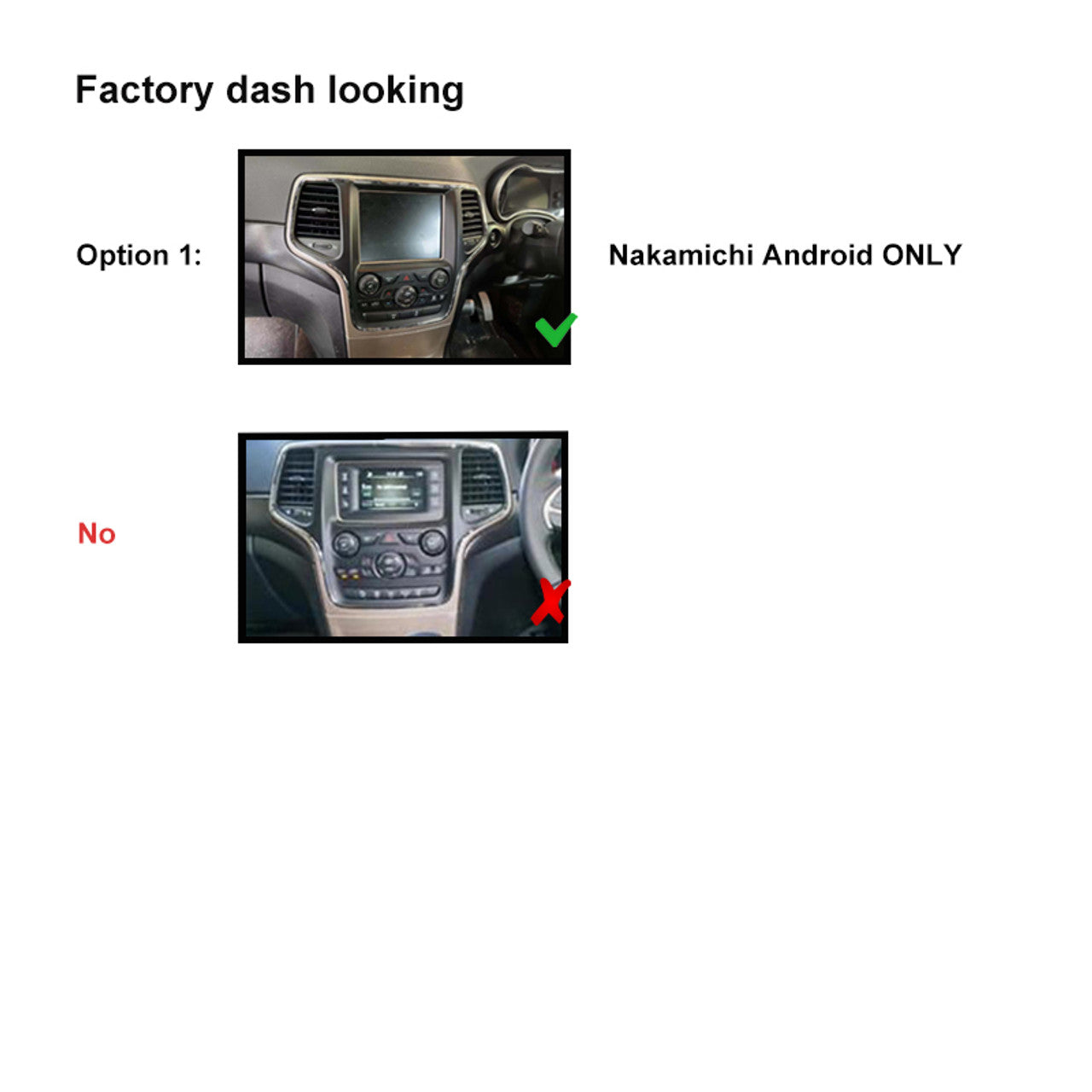

• Please send a photo of your dashboard along with the car’s year and model when purchasing, so we can send the compatible harness.

Main Features:

PhoneLink Operation:

iPhone Connection (Phonelink):

• The Ultimate Co-Pilot. Enjoy iPhone apps wirelessly. Phonelink allows you to use your iPhone in a smarter, safer way while driving.
• Access your directions, make calls, send messages, and listen to your favorite music—all on your car’s built-in display.

Android Phone Connection (Wired for some specific phone brands):

• Pair your phone wirelessly to the car display for easy access to your apps, maps, texts, and calls—all while driving hands-free.
• For certain phones, a wired connection may be required for Android Auto.

Built-in GPS:

• Preloaded GPS data with the option to update or purchase preferred maps through the Google Playstore.

Built-in WiFi & Support for 4G:

• Connect to a WiFi network or insert a SIM card to enable 4G connectivity for internet browsing.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Station Presets: 18 FM & 12 AM

Audio Input/Output:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs (Left & Right) located on the back of the unit.
• RCA outputs for Front, Rear, and Subwoofer Speakers

Video Inputs & Outputs:

• Reverse Camera Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Connectivity:

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for Music or Video

Other Inputs:

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi Support
• 4G Antenna Input
• External Microphone Port
• Brake Detection
• Canbus Box Interface (Can RX/TX)

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
• Note: The accessory package may vary depending on your car model and may not match the listed contents exactly.

General Specifications:

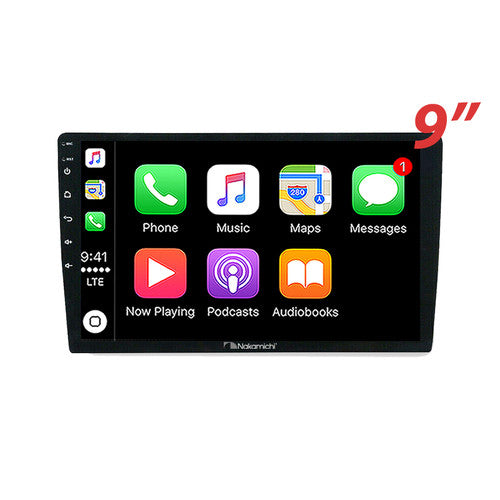

• Display Size: 9" TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A (for charging and file reading)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
