Nakamichi Wireless Apple CarPlay & Android Auto Solution for Jeep Grand Cherokee 2011-2013

Compatibility:

• for Jeep Grand Cherokee 2011-2013

Important Notice:

• Compatible with Steering Wheel Controls
• Works with factory reverse camera (requires hardwiring)

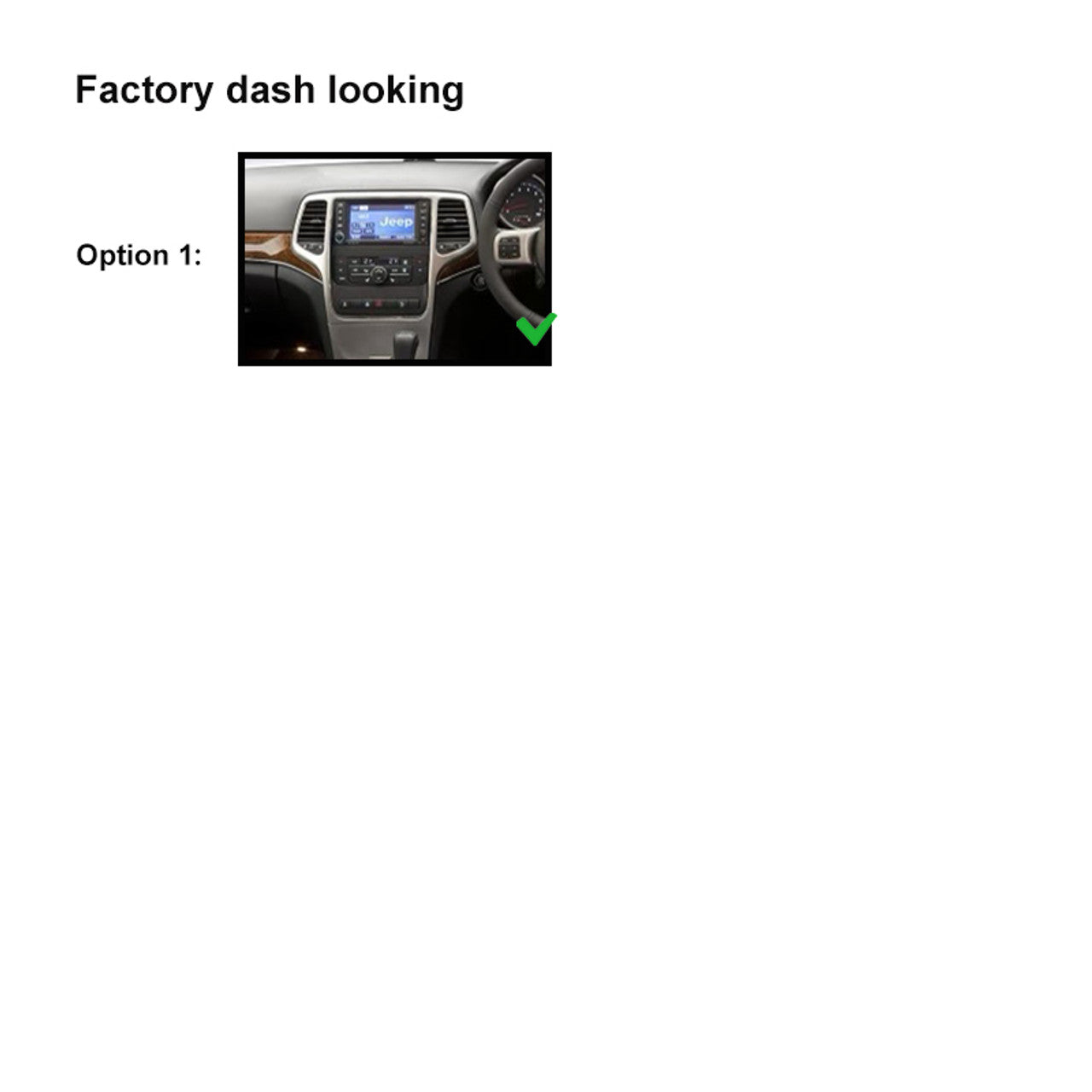

• Please send a photo of your dashboard along with your car’s year and model when purchasing, so we can send the compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Enjoy CarPlay without cables.
• CarPlay is a smarter and safer way to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.
• With iOS, CarPlay introduces all-new app categories and customized wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands):

• Pair your phone wirelessly and hit the road.
• Your Android apps show up on the screen instantly.
• Get driving directions, talk to send texts, and even make hands-free calls.
• Android Auto is designed to help you stay focused on the road while enjoying your drive. Just plug in and go!

Bluetooth Connectivity:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4 GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Inputs (Left & Right) located on the back of the unit

Video Features:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs 1 & 2 (V-OUT1, V-OUT2)

USB Interfaces:

• CP/AA: USB Connection for CarPlay / Android Auto
• USB: USB connection for Music or Video

Other Inputs on the Back of the Unit:

• Antenna Input (ANT)
• Microphone Input (MIC)

RCA Cable Outputs:

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes:

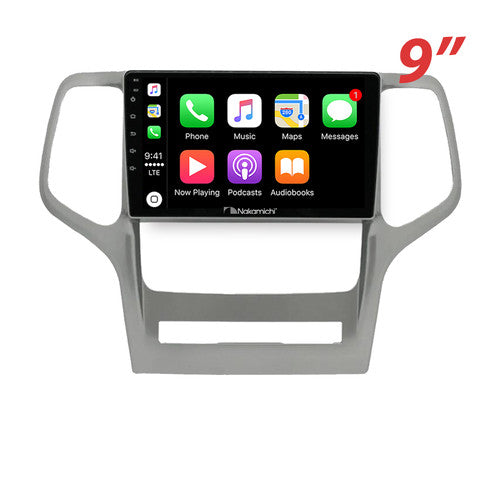

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cable
• Note: The accessory package may vary depending on the car model and may not match the listed contents exactly.

General Specifications:

• TFT Screen Size: 9"
• Display Resolution: 1240x600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A (for charging and file reading)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
