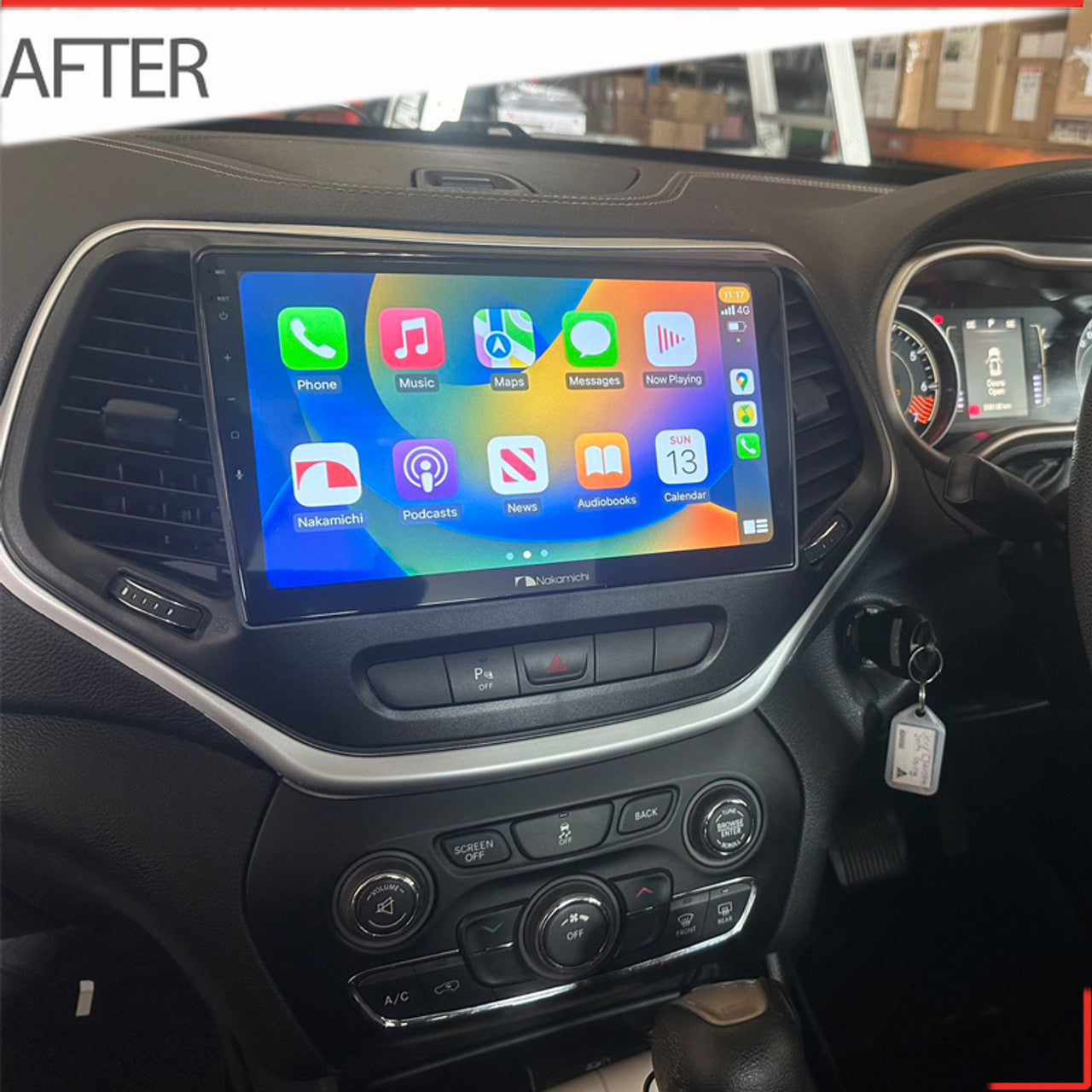

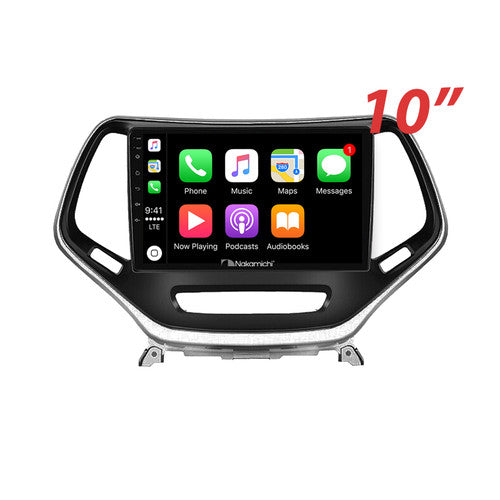

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Jeep Cherokee 2015+

Compatibility:

• for Jeep Cherokee 2015 and newer

Important Notice:

• Compatible with Steering Wheel Controls
• Works with Factory Reverse Camera
• Please send a photo of your dashboard along with your car’s year and model when purchasing, so we can send you the compatible harness.

Main Features:

PhoneLink Operation:

iPhone Connection (Wireless):

• The Ultimate Co-Pilot. Enjoy iPhone apps without a cable.
• PhoneLink is a smarter and safer way to use your iPhone while driving.
• You can get directions, make calls, send and receive messages, and enjoy your favorite music—all directly on your car's built-in display.

Android Phone Connection (Wired for Some Specific Phone Brands):

• Pair your Android phone wirelessly and hit the road.
• Your phone apps will appear onscreen—just tap to get driving directions, make hands-free calls, or send a message.
• Android Auto is designed to help you stay focused on the road while having fun along the way.

Built-In GPS:

• Preloaded GPS data available.
• Update or purchase your preferred maps from Google Play Store.

Built-In WiFi & 4G Support:

• Connect the stereo to a WiFi network.
• Alternatively, insert a SIM card for 4G connectivity.

Bluetooth:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Inputs: Audio Left (AUX IN_L), Audio Right (AUX IN_R)

Video Features:

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interfaces:

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for Music or Video

Other Inputs:

• Radio Antenna Input (RADIO)
• GPS Antenna Input (GPS)
• 5G WiFi and 4G-/+ Support
• External Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

• TFT Screen Size: 10"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: 5V/1A (±0.25V)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
