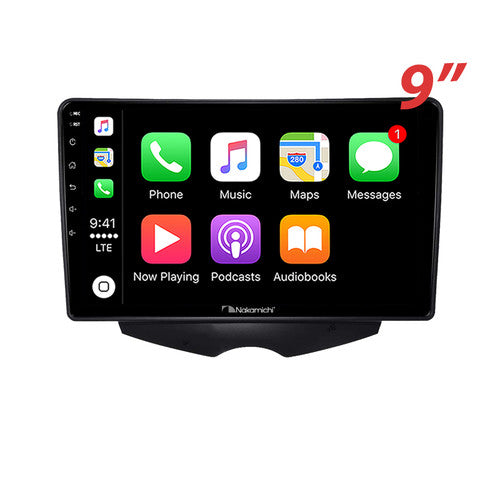

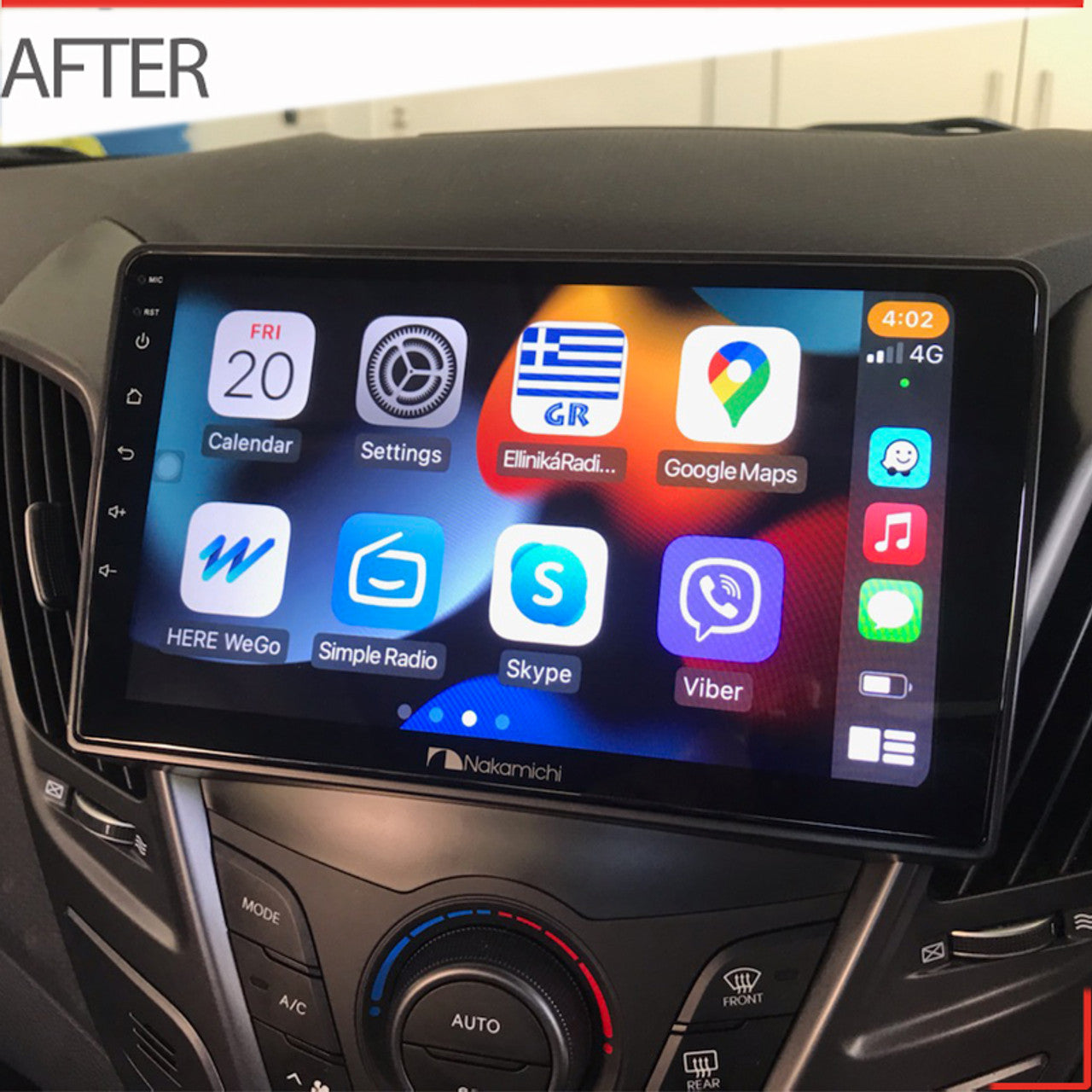

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai Veloster 2011-2017

Compatibility:

• for Hyundai Veloster 2011-2017

Important Notice:

• Compatible with Steering Wheel Controls

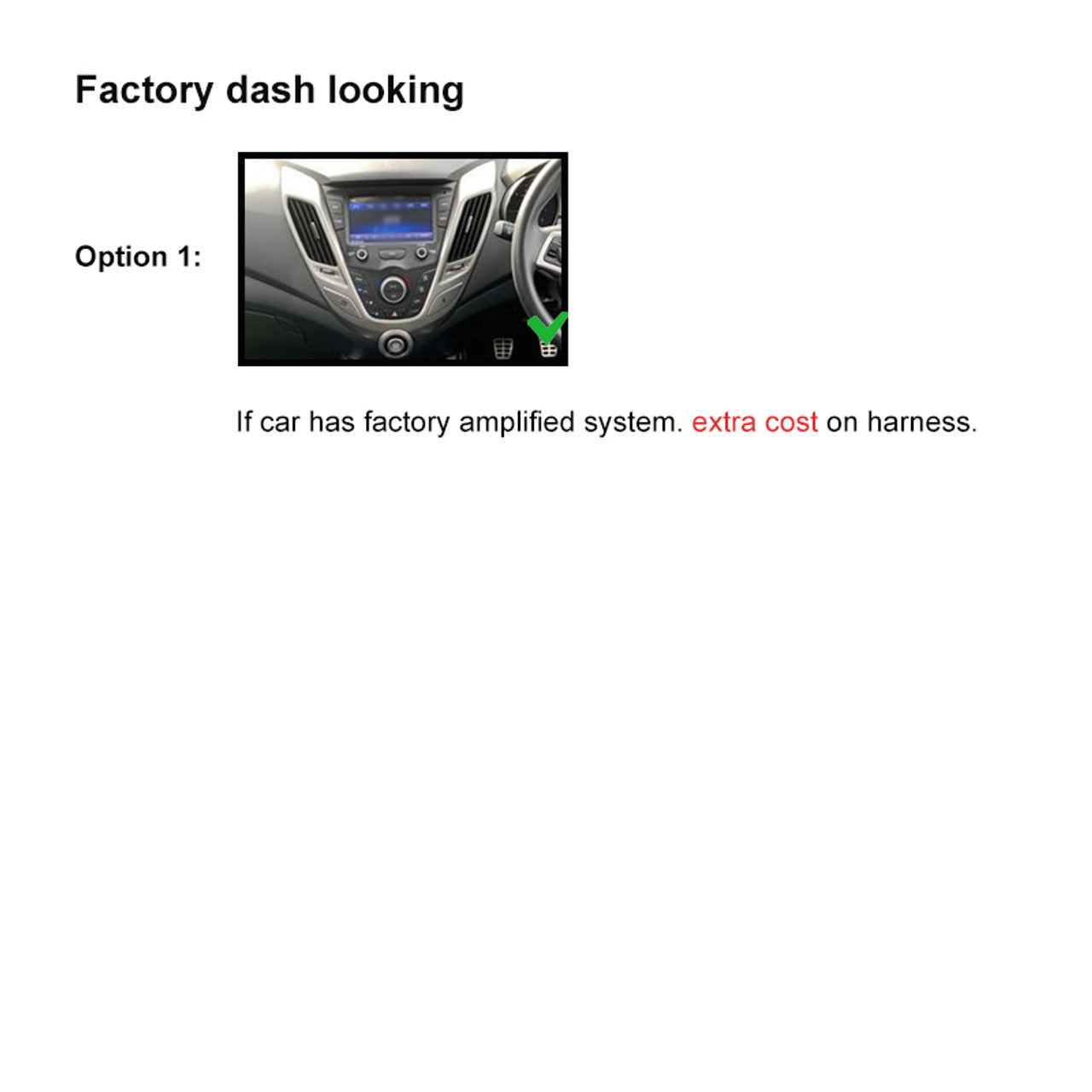

• If your car has a factory amplified system, there will be an extra cost for the harness.
• Please send a photo of your dashboard along with your car’s year and model when purchasing, so we can send you the compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Enjoy Apple CarPlay without the need for cables.
• CarPlay is a smarter, safer way to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display.
• With iOS, CarPlay introduces all-new app categories and customized wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands):

• Pair your Android phone wirelessly and hit the road!
• Your Android apps will appear onscreen instantly.
• Tap to get driving directions, send messages using voice control, or make hands-free calls.
• Android Auto is designed to help you focus on the road and have fun along the way.

Bluetooth:

• Bluetooth Communication System: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Features:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: AUX-L and AUX-R (at back of the unit)

Video Inputs/Outputs:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output 1 (V-OUT1)
• Video Output 2 (V-OUT2)

USB Interface:

• CP/AA USB: USB connection for Apple CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other Inputs at Back of the Unit:

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable:

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: 5V/1A (±0.25V)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
