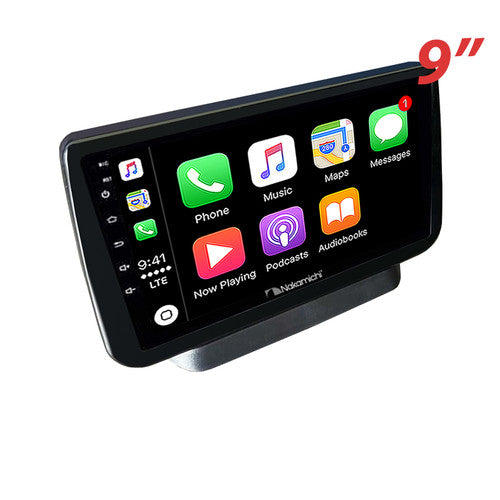

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mazda 2 CX-3 2014+

Compatibility:

• For Mazda 2 CX-3 2014+

NOTICE

• Nakamichi Android System
• Compatible with Steering Wheel Controls

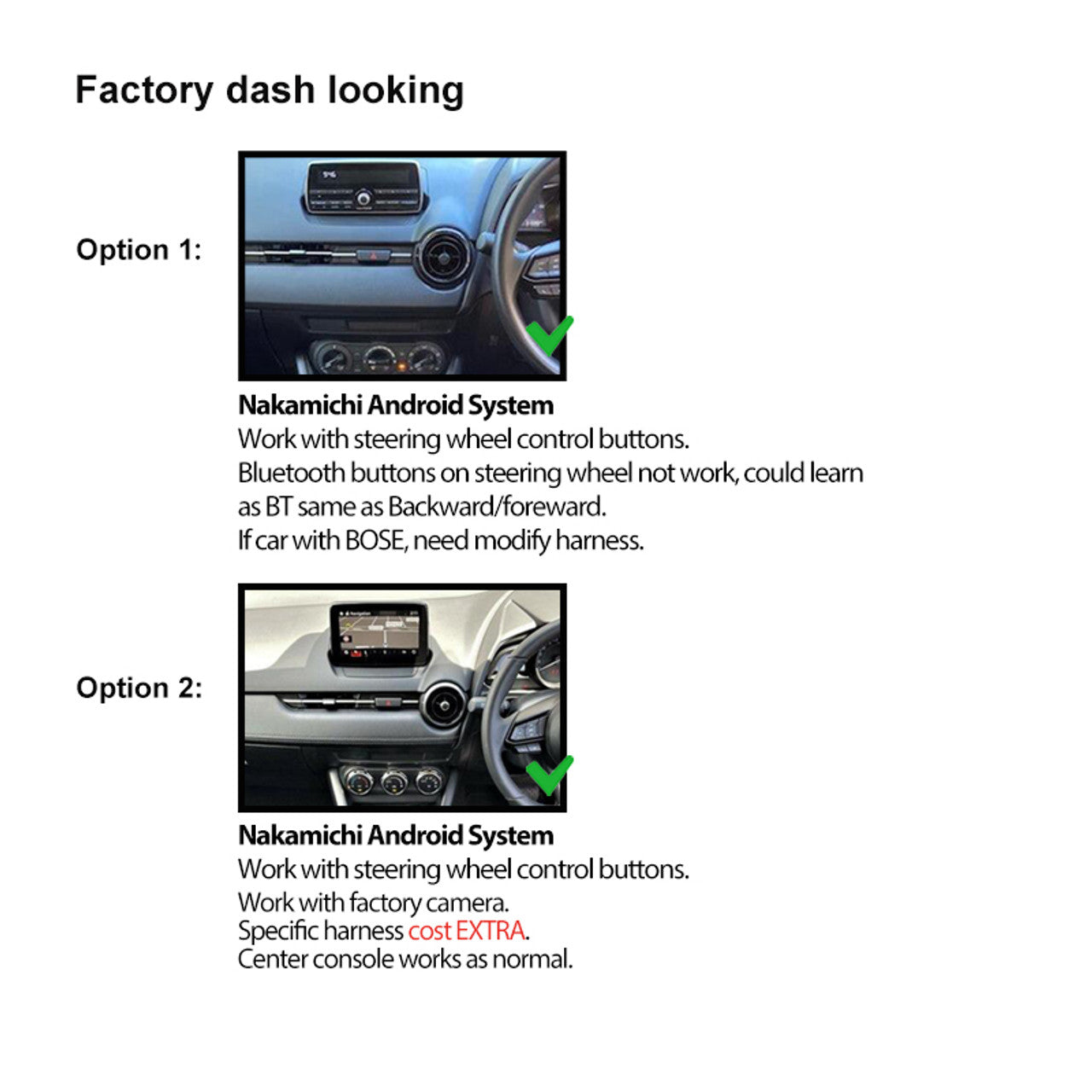

• For Option 1, if your car has the BOSE sound system, a harness modification is required. The Bluetooth button on the steering wheel control (SWC) is not compatible but can be learned to work as Backward/Forward.
• For Option 2 with a factory screen, additional cost for the harness may apply. The system will work with the factory camera but is not compatible with the factory USB.
• The center console will function as normal.
• Please send a message with a dash photo and your car’s year and model when purchasing, so we can send you the correct compatible harness.

MAIN FEATURES

PHONELINK OPERATION

iPhone CONNECTION

• The Ultimate Co-Pilot. Enjoy iPhone apps without the need for cables. Phonelink is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car's built-in screen.

Android Phone CONNECTION (WIRED for some specific phone brands)

• Pair your phone without cables and hit the road. Your phone apps will show up on the car’s display, making it easy to tap for driving directions, call hands-free, or send texts. Android Auto is designed to help you stay focused on the road and have fun along the way. Just plug in and go!

BUILT-IN GPS

• Preload GPS data or update/purchase preferred data from Google Playstore.

BUILT-IN WIFI & SUPPORT FOR 4G

• Connect the stereo to a WiFi network, or insert a SIM card for 4G connectivity.

BLUETOOTH

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

RADIO

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

AUDIO INPUT/OUTPUT

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L: Audio left input
• AUX-R: Audio right input
• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• SUB_OUT: Subwoofer output
• AMP_POW: Amplifier control
• RL-OUT: Rear left speaker output
• RR-OUT: Rear right speaker output

VIDEO

• B.CAMERA: Reverse camera video input
• F_CAMERA: Front camera input
• CVBS: Extra video input

USB INTERFACE

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

OTHER INPUTS

• RADIO: Radio antenna input
• GPS: GPS antenna input
• 5G WIFI
• 4G-/+
• MIC: External microphone port
• BRAKE: Brake detection
• Can RX/TX: Canbus box interface

PACKAGE INCLUDED

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x WiFi/BT/Camera cable
• 1 x RL/RR cable
• 1 x Microphone
• 1 x 4G antenna
• 1 x GPS antenna
• 1 x User manual
• 2 x USB cables

Note: For different car models, the accessory package might vary. It is normal if the contents differ slightly from the listed items.

GENERAL SPECIFICATIONS

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
