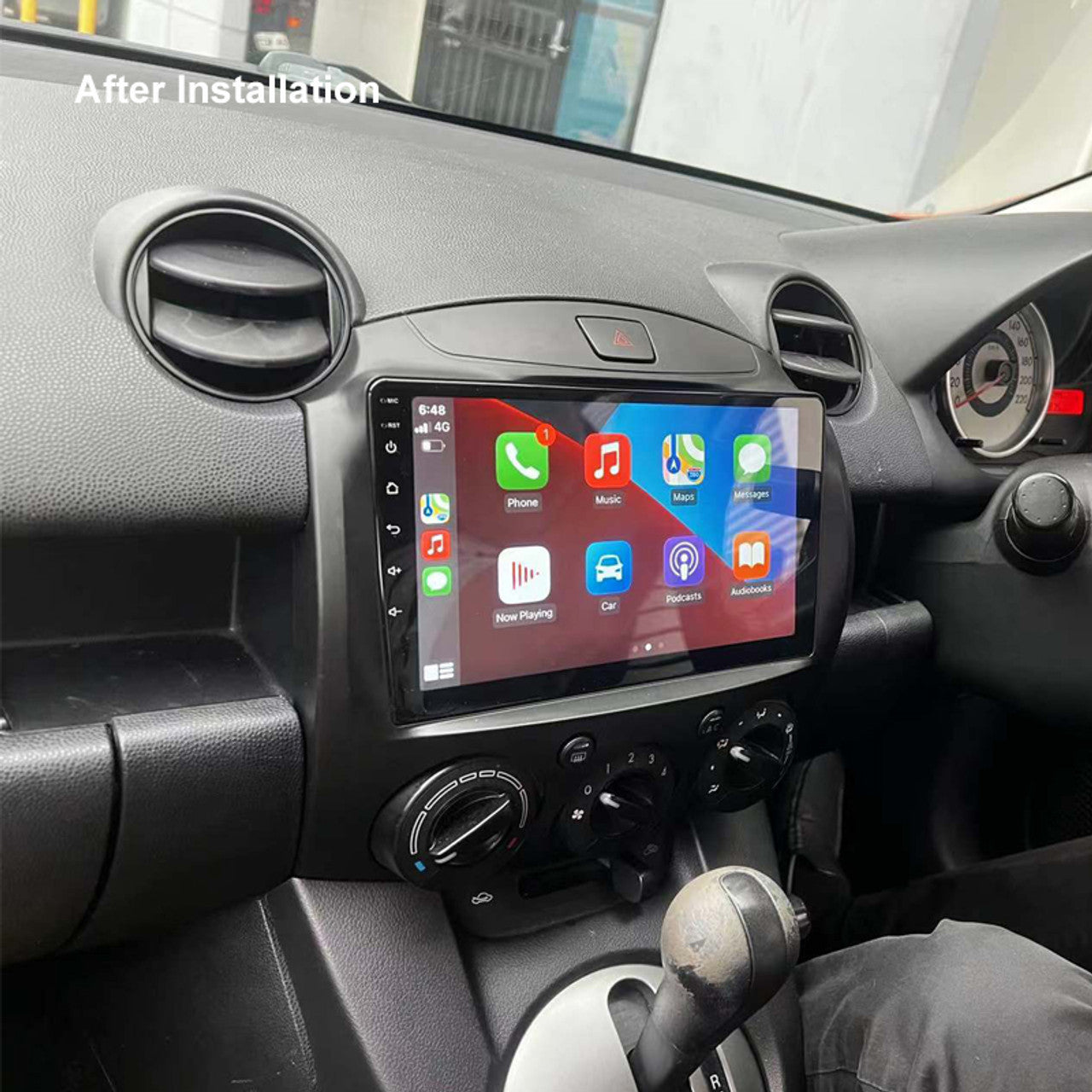

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mazda 2 2007-2014

Compatibility:

• For Mazda 2 2007-2014

NOTICE

• Compatible with Steering Wheel Controls
• Bluetooth button on SWC is not compatible

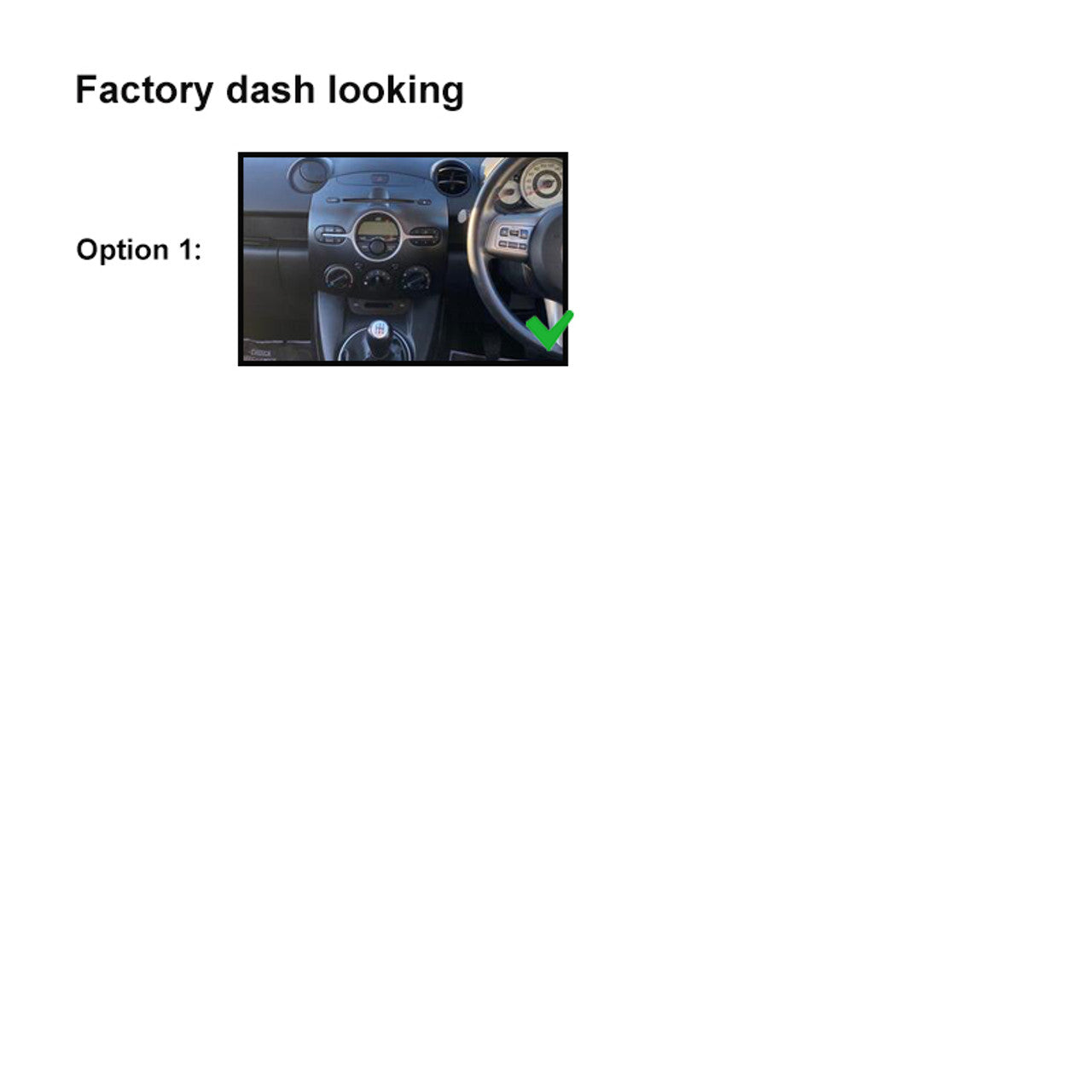

• Please send us a message with a dash photo and car year/model when you purchase so we can provide the compatible harness

MAIN FEATURES

WIRELESS APPLE CarPlay
The Ultimate Co-Pilot. Enjoy CarPlay without the hassle of cables. CarPlay is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car’s built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands)
Pair your phone without the need for cables, and hit the road. Pair your phone with the car display, and your Android apps will appear on screen. You can tap to get directions, send a text with your voice, or make a hands-free call. Android Auto is designed to help you focus on the road and have fun along the way. Just plug in and go!

BLUETOOTH

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max Range: 5m

RADIO

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

AUDIO

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

VIDEO

• R-CAM: Reverse Camera Video Input (at the back of the unit)
• V-IN: Extra Video Input (at the back of the unit)
• V-OUT1: Video Output 1 (at the back of the unit)
• V-OUT2: Video Output 2 (at the back of the unit)

USB INTERFACE

• CP/AA: USB Connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB Connection for Music or Video (at the back of the unit)

OTHER INPUT AT BACK OF THE UNIT

• ANT: Radio Antenna Input (at the back of the unit)
• MIC: Microphone Input (at the back of the unit)

RCA CABLE

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

PACKAGE INCLUDED

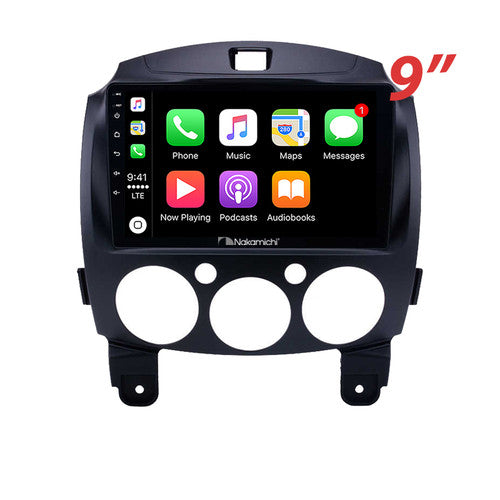

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables

Note: For different car models, the accessory package may vary. It is normal if the contents differ slightly from the listing.

GENERAL SPECIFICATIONS

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500nits
• Operation Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
