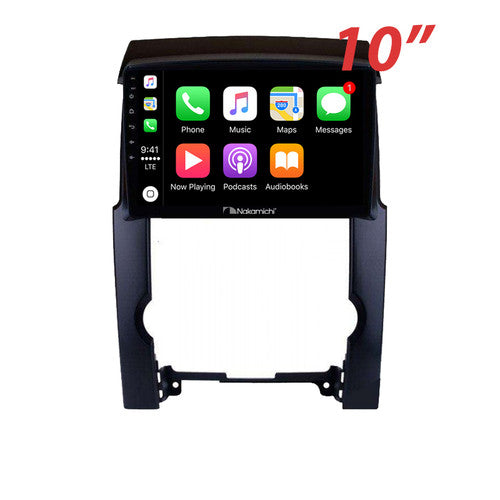

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Kia Sorento 2009-2012

Compatibility:

• For Kia Sorento 2009-2012

NOTICE

• Compatible with Steering Wheel Controls.
• For models with a factory big screen, an extra cost for the harness applies. Use Nakamichi Android System.
• Not compatible with Factory Platinum System.

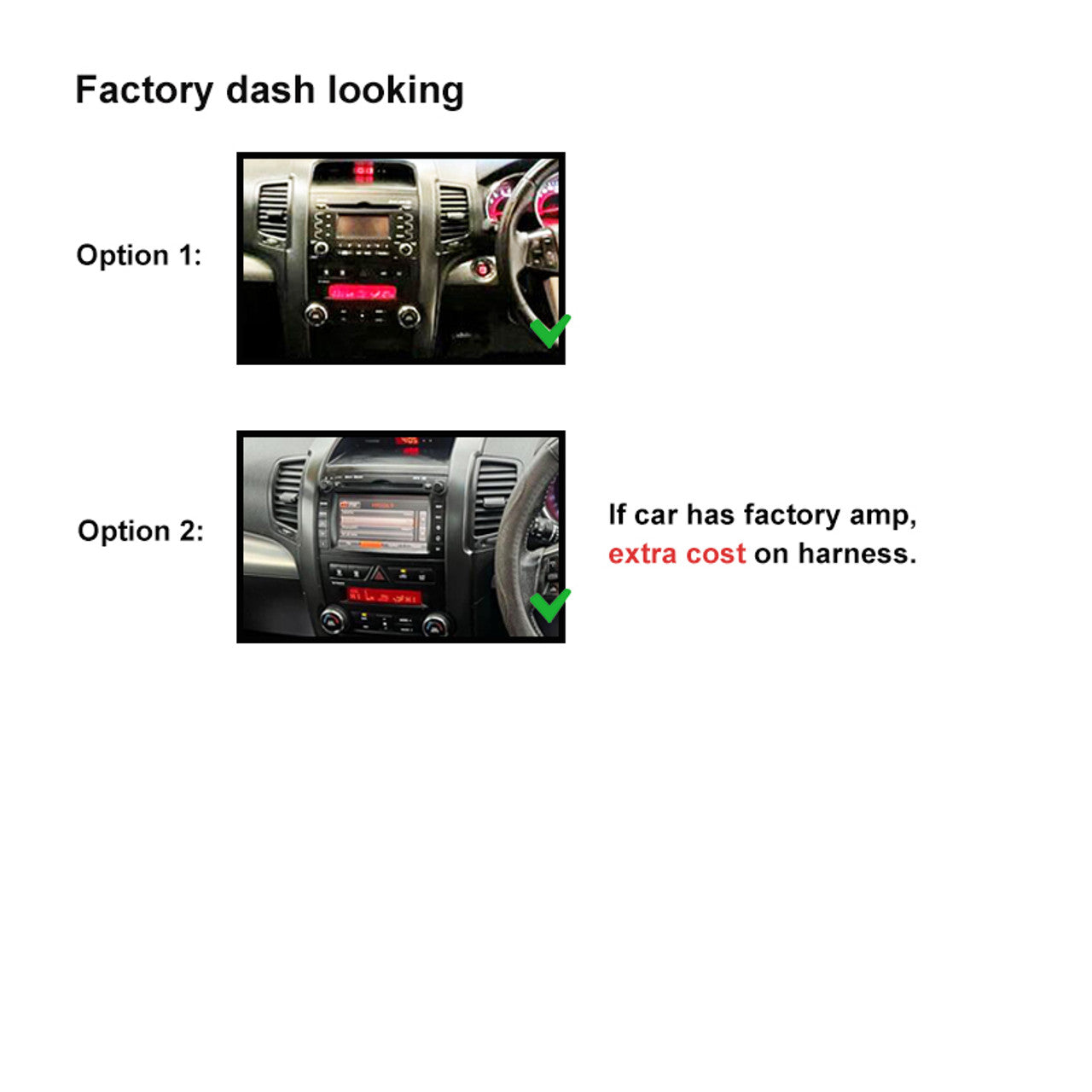

• Please send us a message with a photo of your car's dash, including the year and model, so we can send you the compatible harness.

MAIN FEATURES

WIRELESS APPLE CarPlay
The Ultimate Co-Pilot. Enjoy CarPlay wirelessly. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

WIRELESS ANDROID AUTO (WIRED for specific phone brands)
Pair your phone wirelessly and hit the road. Your Android apps will show up on the screen instantly. Get driving directions, send a text, or make a hands-free call. Android Auto helps you stay focused on the road while staying connected. Just plug in and go!

BLUETOOTH

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max Range: 5m

RADIO

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

AUDIO

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

VIDEO

• R-CAM: Reverse Camera Video Input (at the back of the unit)
• V-IN: Extra Video Input (at the back of the unit)
• V-OUT1: Video Output 1 (at the back of the unit)
• V-OUT2: Video Output 2 (at the back of the unit)

USB INTERFACE

• CP/AA: USB Connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB Connection for Music or Video (at the back of the unit)

OTHER INPUT AT BACK OF THE UNIT

• ANT: Radio Antenna Input (at the back of the unit)
• MIC: Microphone Input (at the back of the unit)

RCA CABLE

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

PACKAGE INCLUDED

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables

Note: For different car models, the accessory package may vary. It is normal if the contents differ slightly from the listing.

GENERAL SPECIFICATIONS

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500nits
• Operation Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
