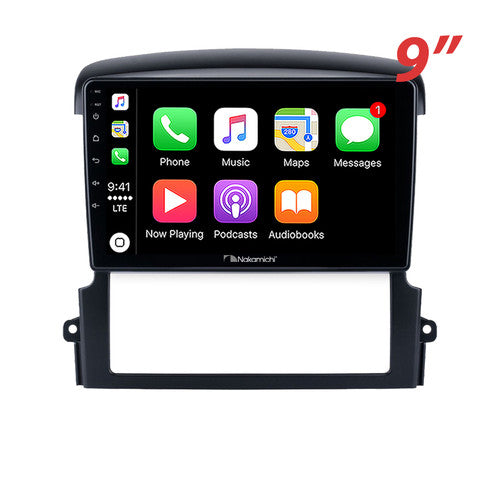

Nakamichi Wireless Apple CarPlay & Android Auto System for Kia Sorento (2007-2009)

Compatibility:

• for Kia Sorento (2007-2009)

Important Notice:

• Fully compatible with Steering Wheel Controls.

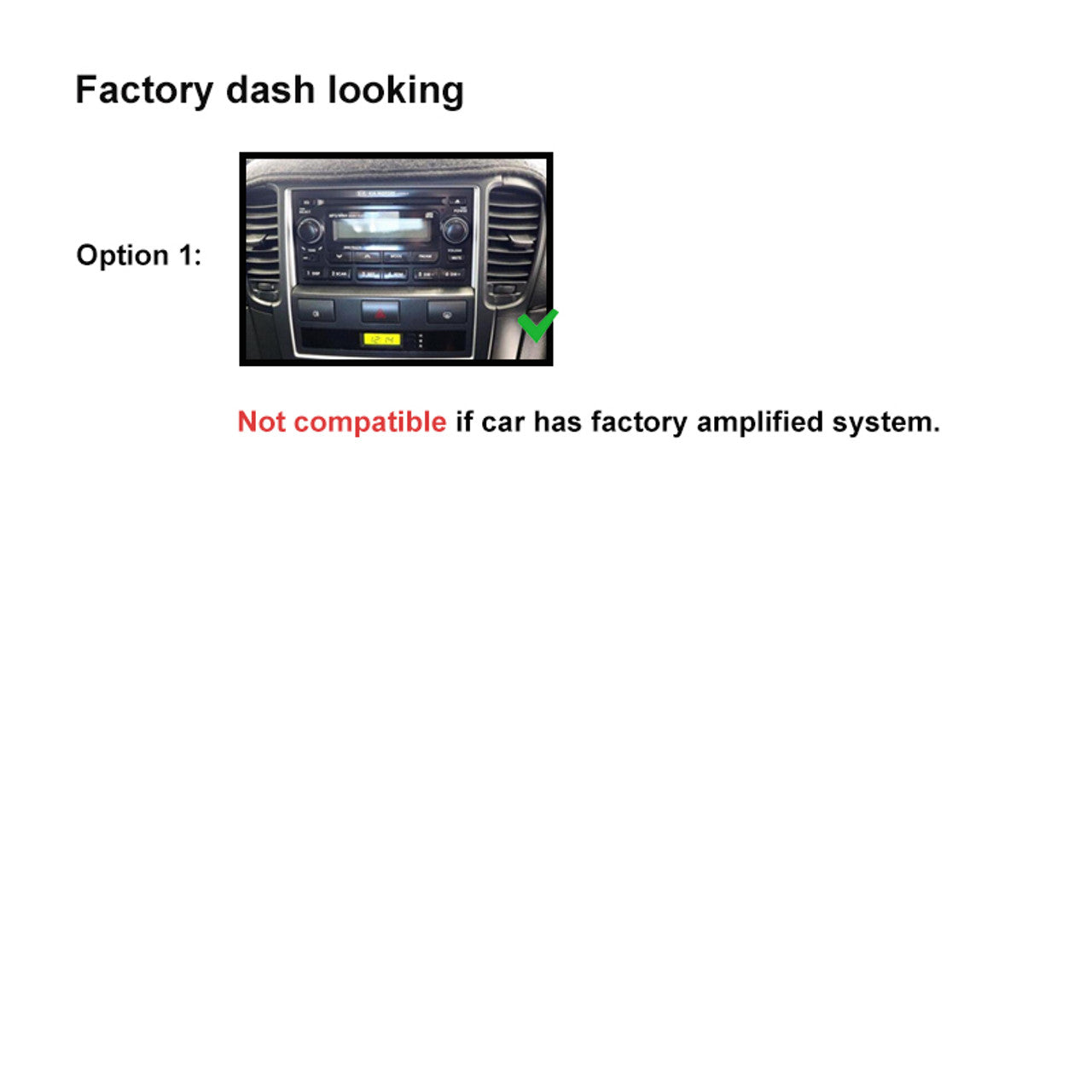

• Not compatible with factory amplified audio systems.
• When ordering, please send a photo of your dashboard along with your vehicle's year and model to ensure we provide the right harness for your setup.

Key Features:

Wireless Apple CarPlay

• Experience seamless, cable-free connectivity with Apple CarPlay. It enhances your driving experience by allowing you to access maps, make hands-free calls, send messages, and enjoy music via your car's display. The latest updates also introduce new app categories and customizable wallpapers.

Wireless Android Auto

• Pair your Android phone effortlessly without cables (wired connection available for select brands). Android Auto puts your favorite apps, navigation, messages, and calls right on your car’s screen to help you stay focused on the road while enjoying your journey.

Bluetooth Technology

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Range: Up to 5 meters

Radio Specifications:

• FM: 87.5 - 108.0 MHz
• AM: 522 - 1620 kHz
• Presets: 18 FM & 12 AM stations

Audio Output:

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Compatible Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right (Rear of Unit)

Video Outputs & Inputs:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Dual Video Outputs (V-OUT1 & V-OUT2)

USB Connectivity:

• USB for CarPlay / Android Auto (Located at the back of the unit)
• Additional USB port for Music & Video Files

Other Inputs/Outputs:

• Antenna Input
• Microphone Input
• Multiple RCA outputs for Speakers & Subwoofer
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake & Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
• Note: Accessories may vary depending on the vehicle model. Differences in the accessory package are normal.

Specifications:

• Display: 9" TFT, Resolution: 1240x600
• Brightness: 500nits, Contrast Ratio: 500
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Output: 5V/1A for charging and file reading
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
