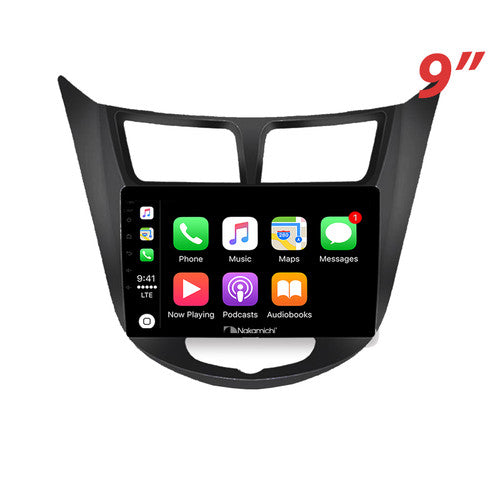

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai Accent 2011-2020

Compatibility:

• for Hyundai Accent 2011-2020

Important Notice:

• Compatible with Steering Wheel Controls.
• Works with factory reverse camera.

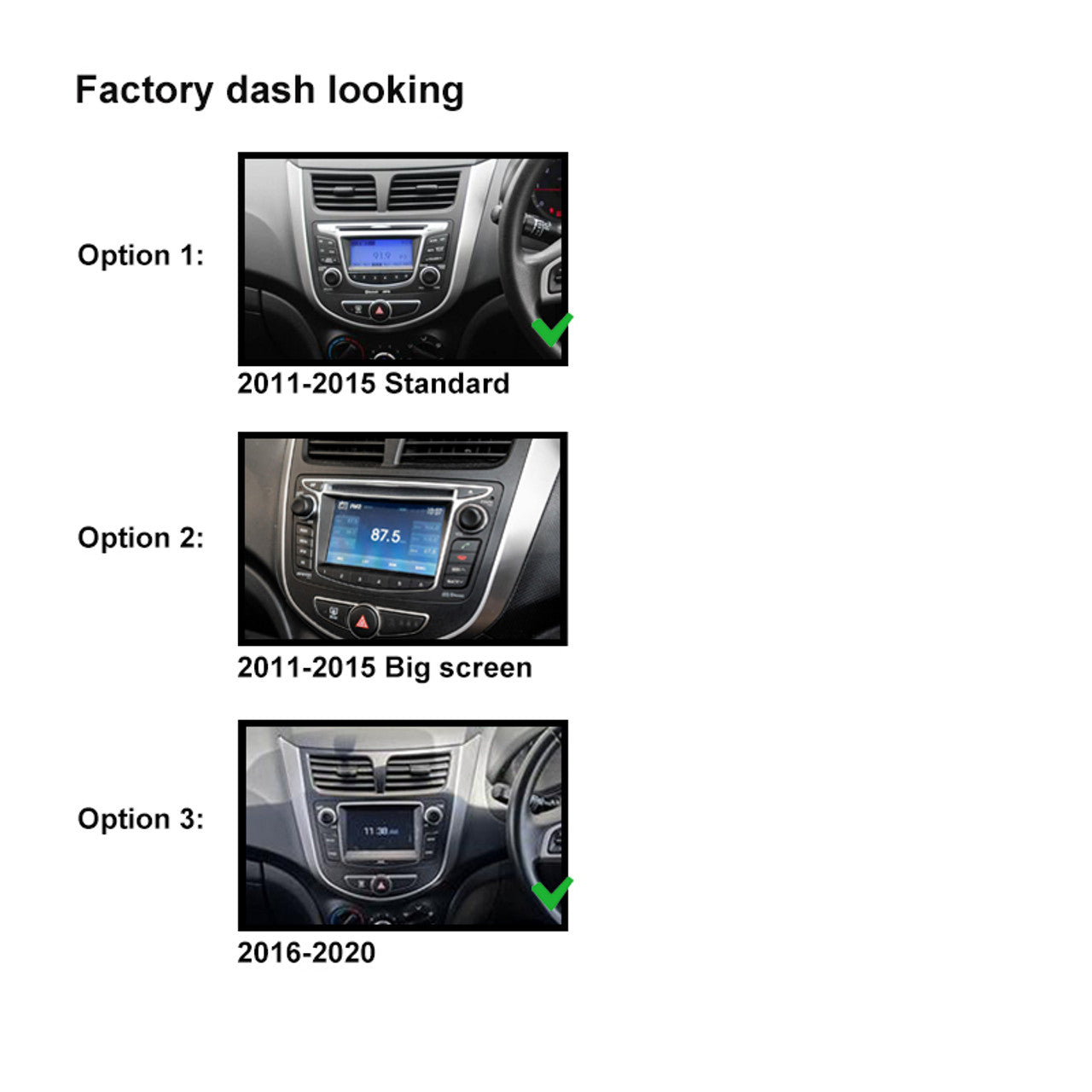

• Please send a photo of your car's dash along with the year and model when purchasing, so we can send you the correct compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Enjoy CarPlay without cables.
• CarPlay is a smarter, safer way to use your iPhone while driving.
• You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display.
• With iOS, CarPlay introduces all-new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for specific phone brands):

• Pair your phone wirelessly and hit the road.
• Your Android apps appear on the car display instantly.
• Get driving directions, send texts with voice commands, and make hands-free calls.
• Android Auto is designed to help you focus on the road and enjoy your journey.

Bluetooth:

• Bluetooth Communication System: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: AUX IN_L (Left), AUX IN_R (Right)
• Speaker Outputs: FL_OUT (Front Left), FR_OUT (Front Right), RL-OUT (Rear Left), RR-OUT (Rear Right)
• Subwoofer Output: SUB_OUT
• Amplifier Control: AMP_POW

Video Inputs:

• Reverse Camera Video Input: R-CAM
• Extra Video Input: V-IN
• Video Output 1: V-OUT1
• Video Output 2: V-OUT2

USB Interface:

• 4PIN USB: USB connection for CarPlay / Android Auto
• 6PIN USB: USB connection for music or video

Other Inputs:

• Radio Antenna Input: ANT
• Microphone Input: MIC
• Parking Brake: PARK
• Canbus Connector: UART_RX/UART_TX
• Amplifier Control: AMP

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: 5V/1A (±0.25V)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
