Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Jazz 2014+

Compatibility:

• for Honda Jazz 2014+

Important Notice:

• Nakamichi Android System
• Compatible with Steering Wheel Controls
• Works with factory reverse camera

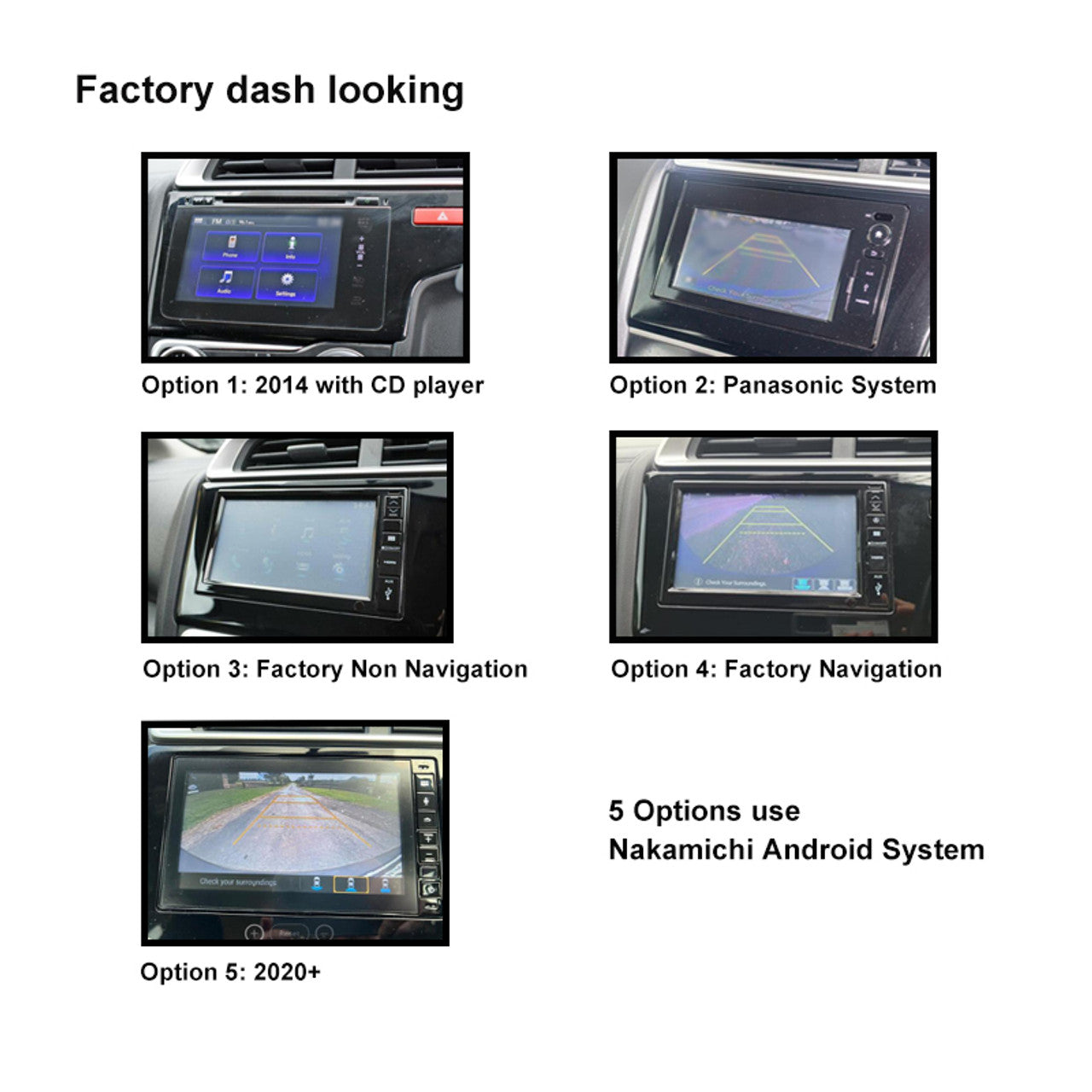

• Option 1: 2014 with CD Mech
• Option 2: Panasonic System
• Option 3: Factory non-navigation system
• Option 4: Factory navigation system
• Option 5: 2020+ model
• Note: If the factory camera has 3 views, only one view (default is View 1 - Wide) will be retained after installation. You may wire up to choose View 2 or 3. Please refer to the attached instruction paper.
• Please send a photo of your dash with the car year and model when purchasing so we can provide the compatible harness.

Main Features:

PhoneLink Operation:
iPhone Connection:

• The Ultimate Co-Pilot. Enjoy iPhone apps without cables.
• PhoneLink is a smarter, safer way to use your iPhone while driving.
• You can get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car’s built-in screen.

Android Phone Connection (Wired for specific phone brands):

• Pair your phone wirelessly and hit the road.
• Your phone's apps appear on your car's display, just like that.
• Tap to get driving directions or make hands-free calls.
• PhoneLink is designed to help you focus on the road and enjoy your drive.

Built-In GPS:

• Preloaded GPS data with the option to update or purchase additional data via Google Play Store.

Built-In WiFi & 4G Support:

• Connect to a WiFi network or insert a SIM card for 4G connectivity.

Bluetooth:

• Bluetooth Communication System: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5 - 108.0 MHz
• AM Frequency Range: 522 - 1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: AUX IN_L (Left), AUX IN_R (Right)
• Speaker Outputs: FL_OUT (Front Left), FR_OUT (Front Right), RL-OUT (Rear Left), RR-OUT (Rear Right)
• Subwoofer Output: SUB_OUT
• Amplifier Control: AMP_POW

Video Inputs:

• Reverse Camera Video Input: B.CAMERA
• Front Camera Input: F_CAMERA
• Extra Video Input: CVBS

USB Interface:

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs:

• Radio Antenna Input: RADIO
• GPS Antenna Input: GPS
• WiFi/4G Antenna: 5G WIFI, 4G-+
• External Microphone Port: MIC
• Brake Detection: BRAKE
• Canbus Box Interface: Can RX/TX

Package Includes:

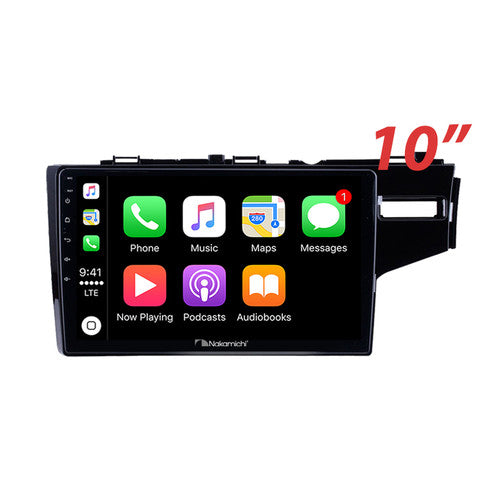

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if the accessories are not exactly as listed.

General Specifications:

• TFT Screen Size: 10"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: 5V/1A (±0.25V)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
